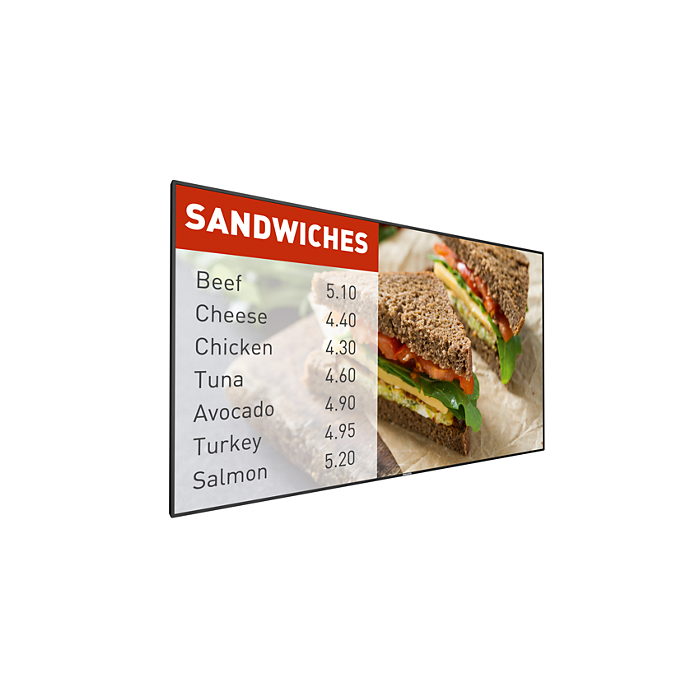

Shop 49BDL5057P 49" 24/7 Android Display

Features

Meet the requirements of challenging environments with a robust P-Line professional Full HD display. Tough components keep this display operating from the kitchen to the engine room. The wide viewing angle assures critical information is clear.

Brilliant picture. Strong build.

Android SoC processor. Native and web apps
IPS panel: vibrant colour consistency from every angle
Sturdy metal housing
D-image: clinically precise imaging

Effortless setup. Total control

CMND & Deploy. Install and launch apps remotely
Operate, monitor and maintain with CMND & Control
CMND & Create. Develop and drive your own content
Proof of Play for Android content. Know what's playing
Integrated mPCIe slot for optional 4G/LTE module

Robust system solution

Energy-saving automatic backlight control
Integrated HTML5 browser. Play and control online content
FailOver ensures content is constantly playing

This product is listed in Philips

Specifications

Picture/Display

Diagonal screen size: 48.5 inch
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60Hz
Brightness: 700 cd/m²
Contrast ratio (typical): 1300:1
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 8 ms
Pixel pitch: 0.55926 x 0.55926 mm
Display colors: 1.07 billion
Viewing angle (horizontal): 178 degree
Viewing angle (vertical): 178 degree
Operating system: Android 5.1.1

Connectivity
Video input
- Display Port1.2x1
- DVI-I x 1
- HDMI 1.4x2
- USB 2.0 (Type A) x2
- USB 2.0 (Type B )x1
Video output
- DVI-I x1
- DisplayPort1.2x1
Audio input

3.5 mm jack

Audio output

3.5mm jack

Other connections
- micro SD x1
- Micro USB(type B)x1
- OPS
Optional WiFi functionality

requires WiFi module and external antennas

External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1360 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60, 75Hz
- 1280 x 1024, 60Hz
- 1600 x 1200, 60Hz
- 640 x 480, 60, 72, 75Hz
- 720 x 400, 70Hz
- 800 x 600, 60, 75Hz
Video formats
- 1080p, 50, 60Hz
- 720p, 50, 60Hz
- 576p, 50Hz
- 480p, 60Hz
- 1080i, 25, 30Hz
- 480I, 30Hz
- 576i, 25Hz
Dimensions

Set Width

1092.8 mm

Set Height

623.0 mm

Set Depth

71.1 mm

Set Width (inch)

43.0 inch

Set Height (inch)

24.5 inch

Set Depth (inch)

2.80 inch

Bezel width

6.5 mm

Product weight (lb)

41.9 lb

Product weight

19.0 kg

VESA Mount

400 x 400 mm, M6
Convenience
Placement
- Landscape
- Portrait
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal Loop Through
- DVI
- VGA
- RS232
- IR Loopthrough
- DisplayPort
Network controllable
- RJ45
- RS232
- HDMI (One Wire)
Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation
- AC Out
- Carrying Handles
Other convenience

G sensor
Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

95 W

comsumption(Max)

240 W
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 ~ 80 %

Altitude

0 ~ 3000 m

MTBF

60,000 hour(s)
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- AC Power Cord
- RS232 cable
Included Accessories
- Edge Alignment Kit (1 )-2pcs
- Edge Alignment Kit (2)-1pcs
- Logo guide
- Philips logo
- Thumbscrew (8pcs)
- RS232 daisy-chain cable
Stand

BM04642/00( optional)
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- MP3
- WMA
- MP1
- MP2
USB Playback Picture
- BMP
- GIF
- JPEG
- JPG
- PNG
USB Playback Video
- MKV
- MP4
- MPG
- TS
- VOB
- 3GP
- AVI
- DAT
- FLV
- MOV
- WEBM
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- CCC
- CB
- CECP
- BSMI
- EAC
- EnergyStar 7.0
- UL/cUL
- VCCI
- EMF
- PSB
- FCC, Class A
- PSE
Warranty

3 year warranty
