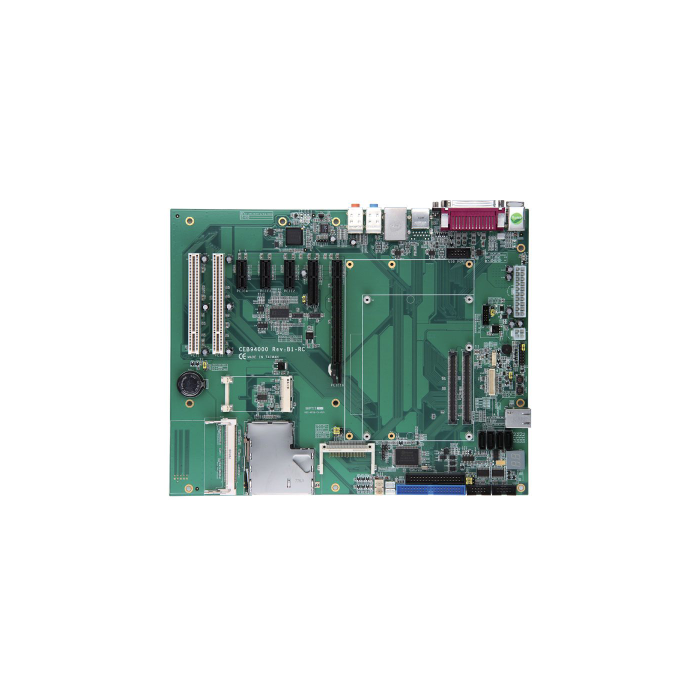

CEB94000 - Baseboard

In stock

SKU:

COM Express™ Type 2 Development Baseboard

Enquire Now

Name

Phone

Postcode

Message

Standard ATX form factor for development purpose

1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots

1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI

This product is listed in Industrial Automation, Mining, Transport, Axiomtek, Industrial Computing, Embedded Motherboards

CPU	COM Express™ type 2 basic or extended module
Chipset	On the module
System Memory	On the module
BIOS	On the module; optional socket on the baseboard
Serial	1 x RS-232 (COM 2) 1 x RS-232 (COM 1)
USB	6 x USB 2.0
Ethernet	1 x 10/100/1000Mbps
Display	1 x S-Video (depending on CPU module) 1 x LVDS LCD interface 1 x CRT D-Sub connector
GPIO	N/A
Audio	Line-in/line-out/MIC-in and SPIF
Storage	4 x SATA
Expansion	1 x PCIe x16 for graphics and SDVO ADD2+ card 1 x PCIe x4 or 3 x PCIe x1 2 x 32-bit/33MHz PCI 1 x ExpressCard 1 x PCI Express Mini Card 1 x MiniPCI type-III
Others	1 x IDE; PATA-100 1 x FDD 1 x PS/2 keyboard & mouse 1 x LPT; with SPP/EPP/ECP supported 1 x IrDA 1 x SMBus Port 80 display
Battery	Lithium 3V/196 mAH
Power Input	TBD
Watchdog Timer	255 levels, 1~255 sec.
Hardware Monitoring	Yes
Operating Temperature	0° ~ +60°C (32°F ~ 140°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	305 x 244 mm
Board Thickness	1.6 mm
Certifications	CE
