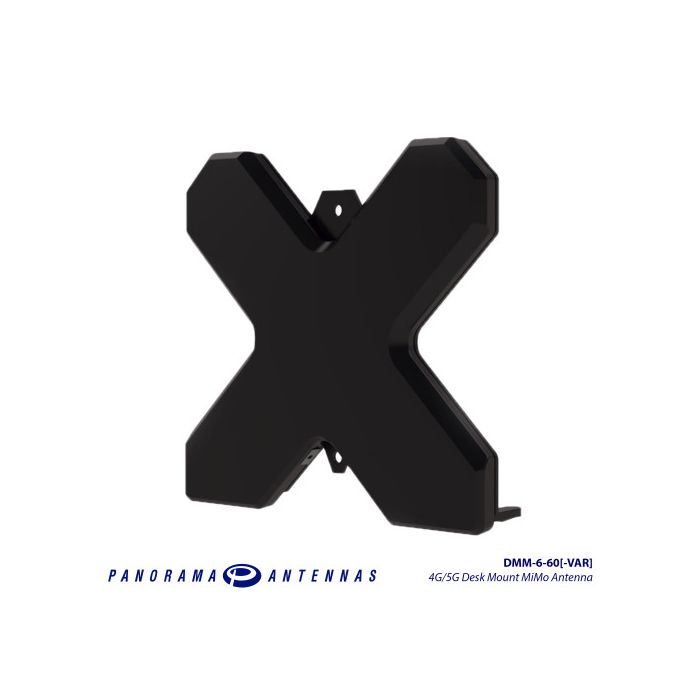

DMM-6-60 - 4G/5G Desk Mount MiMo Antenna - Portable Antenna
4G/5G Desk Mount MiMo Antenna - Portable Antenna
The DMM portable antenna is an innovative antenna design which provides 2x2 MiMo function for 4G/5G with fallback to 3G/2G. Incorporating two separately fed, ultra wideband elements in a single housing. The DMM provides portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mmWave bands.
The DMM is highly portable and features an integral desk stand which folds flat for transport. A handy suction window mount enables users to optimise their signal by antenna position, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with 2 metres (6’) of twinned coaxial cable with the option of SMA or TS9 plug connectors.
The DMM is a cost effective, value added product helping to provide high data rates for users.
| LTE Frequencies | 617-960/1710-6000MHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 5 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Hybrid |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 185 |
| Height (mm) | 176 |
| Operating Temperature | -40° / +80°C (-40° /180°F) |
| Mounting Data | |
| Mounting Type | Desk Mount; Screw Mount; Window Mount |
