DS7610 LoraWan IoT Display
DS7610 LoraWan IoT Quad-core NFC Display
Key Features:
- Quad-core industrial processor
- Straightforward user interfaces presented on 10.1-inch capacitive touch screen with customizable stepless adjusted RGB LED indicators on the sides
- Customizable branding logo and background image appearing on the screen
- Plug-and-play PoE, DC power, or Type C power supply available
- Provides easy installation, flexible mounting options, and specialized design to hide wires
- Equipped with NFC for Milesight LoRaWAN® nodes configurations, ID identifications, contactless meeting
check-in, etc. - Support extra DI/DO/RS485 industrial serial ports via optional docking station
- Built-in one-channel SX1262 LoRaWAN® gateway module is well-qualified to manage end nodes indoors, showcase intuitive status, streamline management, and simplify control and maintenance
- Provide SDKs to develop and install 3rd-Party Android applications and allows to customize systems
- Provide application customization services including Meeting Room Booking System, Visitors Appointment Systems, Smart Restroom Management System and more
- Built-in ambient light sensor and proximity sensor automatically adjust the screen’s brightness according to external light conditions for saving energy

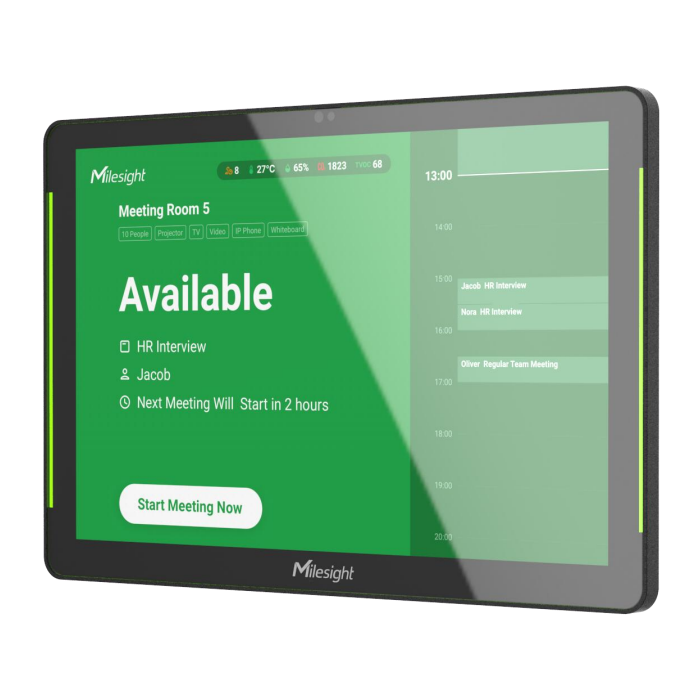

The DS7610 is an advanced IoT solution that manages Milesight LoRaWAN® sensors, displays logical data and the status on the screen. It can easily manage a room's conditions with just one tap thanks to Milesight's DS7610 IoT Display and it comes equipped with an integrated LoRaWAN® gateway and NFC.
The 10.1-inch capacitive touchscreen display enables users to view and adjust the user interface with simple settings and fluid screen switching. The DS7610's programmable stepless adjustable RGB LED indicators can display the instantaneous real-time room availability even from a distance. Additionally, the DS7610 supports third-party Android apps, enabling users to add programs as required. Examples of these apps include systems for booking meeting rooms, visitors, smart restroom management systems, and more.
Key Features:
- Quad-core industrial processor
- Straightforward user interfaces presented on 10.1-inch capacitive touch screen with customizable stepless adjusted RGB LED indicators on the sides
- Customizable branding logo and background image appearing on the screen
- Plug-and-play PoE, DC power, or Type C power supply available
- Provides easy installation, flexible mounting options, and specialized design to hide wires
- Equipped with NFC for Milesight LoRaWAN® nodes configurations, ID identifications, contactless meeting
check-in, etc. - Support extra DI/DO/RS485 industrial serial ports via optional docking station
- Built-in one-channel SX1262 LoRaWAN® gateway module is well-qualified to manage end nodes indoors, showcase intuitive status, streamline management, and simplify control and maintenance
- Provide SDKs to develop and install 3rd-Party Android applications and allows to customize systems
- Provide application customization services including Meeting Room Booking System, Visitors Appointment Systems, Smart Restroom Management System and more
- Built-in ambient light sensor and proximity sensor automatically adjust the screen’s brightness according to external light conditions for saving energy
| Display | LCD Screen | 10.1-inch TFT LCD Touch Screen | |
| Resolution | 1280 x 800 Pixels | ||
| Active Area | 216.58 (L) x 135.36 (H) mm | ||
| Screen-to-body Ratio | 74.88% | ||
| Aspect Ratio | 16:10 | ||
| Constrast Ratio | 1000:1 | ||
| Luminance | 300cd/m2 | ||
| LED | RGB Side LED Indicators, Stepless Adjustment | ||
| Hardware System | CPU | Quad-core ARM Cortex-A55 | |
| Memory | 2GB DRAM | ||
| Flash | 16GB eMMC | ||
| Expansion Storage (Optional) |
Equipped with micro SD Card |
||
| Operating System | Android 11.0 | ||
| Connectivity & Interface |
LoRaWAN® |
Channel | 1 |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | ||
| Sensitivity | -137dBm | ||
| Output Power | 19dBm (470 MHz) /16dBm (868 MHz)/22dBm (915 Mhz) | ||
| Protocol | V1.0.3 Class A/Class C | ||
| Others | Wi-Fi | IEEE 802.11 b/g/n，2.4 Ghz/IEEE 802.11 a/n/ac，5 GHz | |
| Bluetooth | Bluetooth 5.0 | ||
| Ethernet | 1 x RJ45 10/100/1000 Mbps Ethernet Port (PoE PD Supported) | ||
| Type-C | OTG or Host Mode | ||
| Speaker | 1.5W | ||
| Sensors & NFC | Proximity Sensor | Detection Distance: 1m (Max.) | |
| Light Sensor | 5 Brightness Level Adjustment | ||
| NFC | 13.56MHz | ||
| Physical Characteristics | Power Supply |
1. 802.3af PoE 2. 12V/1A by DC Jack Connector 3. 5V/2A by Type-C Port |
|
| Operating Tempreture | -20°C to +50°C (-4℉ to +122℉) | ||
| Operating Humidity | 0% to 95% (Non-condensing) Below 25°C/77℉ | ||
| Ingress Protection | IP30 | ||
| Color & Material | Black, Metal | ||
| Dimensions | 245 (L) x 160 (H) x 18 (D) mm | ||
| Weight | 0.65 kg (Without Bracket), 0.7kg (With Bracket) | ||
| Installation | Wall Mounting, 3M Tape Mounting, VESA Desktop Stand Mounting (75 x 75mm) | ||
