Brand: Axiomtek

eBOX630B Fanless Embedded AI System with Intel Core Ultra

In stock
SKU:
eBOX630B-Ux-1x5H

Fanless Embedded AI System with Intel® Core™ Ultra Processor, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60 VDC

Key Features:

  • Intel® Core™ Ultra processor (Meteor Lake-U/H)
  • Multiple compute engines: CPU, GPU (Intel® Arc GPU by H SKU) and NPU (Intel® AI Boost)
  • Dual channel DDR5 5600 SO-DIMM, up to 64GB
  • 6 USB and 2 USB Type-C with DisplayPort support
  • Supports multiple display interfaces with 1 HDMI 1.4b and 3 x DisplayPort (2 ports via USB Type-C)
  • Three 2.5GbE LAN with TSN and 1 GbE
  • Two 2.5" front-access swappable HDD/SSD and 1 M.2 Key M 2280
  • Wide operating temperature range from -40°C to +70°C
  • Wide power input range from 9 to 60 VDC
  • Supports the OpenVINO™ toolkit for AI computing

Enquire Now
Enquire Now

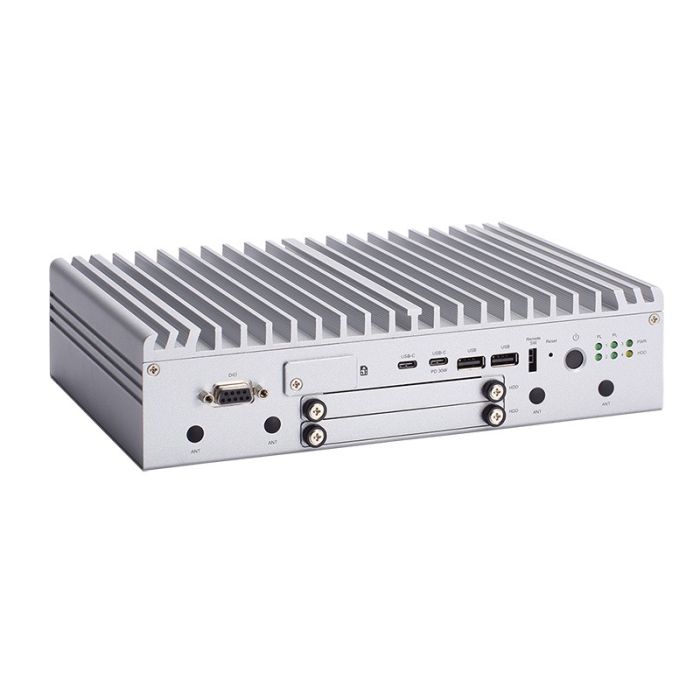

main product photo
We build to order

The eBOX630B is a fanless embedded AI system designed to deliver high-performance computing in a compact form factor. Powered by the Intel® Core™ Ultra processor, it offers exceptional processing capabilities suitable for a wide range of industrial applications, including AI, edge computing, and automation.

With support for multiple display outputs such as HDMI and DisplayPort++, the eBOX630B ensures seamless integration with various display devices. It also features extensive connectivity options, including 4 LAN ports, 4 COM ports, 6 USB ports, and 2 USB Type-C ports, allowing it to accommodate diverse peripheral devices and network configurations.

Designed for industrial environments, the eBOX630B supports a wide DC power input range from 9 to 60 VDC, ensuring reliable operation across different power conditions. Its fanless architecture enhances system reliability by eliminating moving parts, reducing maintenance requirements, and ensuring silent operation.

The eBOX630B is an ideal solution for applications requiring robust AI capabilities at the edge, such as industrial automation, smart surveillance, and IoT deployments.




This product is listed in Axiomtek, Embedded Computers
Specifications

CPU

  • Intel® Core™ Ultra 7 processor 155H (16 cores, 28W TDP)

  • Intel® Core™ Ultra 5 processor 125H (14 cores, 28W TDP)

  • Intel® Core™ Ultra 5 processor 125U (12 cores, 15W TDP)

Chipset

  • SoC integrated

System Memory

  • 2 x 262-pin DDR5-5600 SO-DIMM, non ECC, up to 64GB

BIOS

  • AMI

COM

  • 2 x RS-232/422/485 with auto flow (COM1/2)

  • 2 x RS-232 with auto flow (COM3/4)

USB

  • 4 x USB 3.2 Gen2 (Type-A)

  • 2 x USB 2.0 (Type-A)

  • 1 x USB Type-C (DisplayPort/USB 10Gbps support)

  • 1 x USB Type-C (DisplayPort/USB 10Gbs with 30W power delivery support)

Ethernet/PoE

  • 3 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-IT)

  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-IT)

Display

  • 1 x HDMI 1.4b (lockable)

  • 1 x DisplayPort 1.4a

Digital I/O

  • 1 x 8-CH TTL DIO with DB9 female connector (4-in/4-out)

Audio

  • N/A

Storage

  • 2 x 2.5" swappable SSD/HDD drive bay (up to 9.5 mm height, RAID 0,1 supported)

Expansion

  • 1 x Full-size PCI Express Mini Card (USB + PCIe signal)

  • 1 x M.2 Key E 2230 slot for Wi-Fi (USB 2.0 + PCIe signal)

  • 1 x M.2 Key M 2280 slot for NVMe storage (PCIe x4 signal only)

Others

  • TPM 2.0

  • 1 x ATX power switch

  • 1 x Remote power switch

  • 1 x Reset switch connector

  • 1 x Front-access SIM slot

  • 4 x Antenna opening

Power

  • 9 to 60 VDC

  • 1 x Phoenix-type VDC power input connector

Watchdog Timer

  • 255 levels, 1 to 255 sec.

Construction

  • Aluminum extrusion and heavy-duty steel, IP40

Operating Temperature

  • -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU: 15W TDP) (with W.T. DRAM and SSD)

  • -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU: 28W TDP) (with W.T. DRAM and SSD)

Relative Humidity

  • 10% to 95%, non-condensing

Vibration

  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)

  • MIL-STD-810G 514.6C-II compliance

Shock

  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)

Dimensions
(W x D x H)

  • 250 x 170 x 60 mm (9.84" x 6.69" x 2.36")

Weight (net/gross)

  • 2.4 kg (5.29 lb)/3.2 kg (7.0 lb)

Certifications

  • CE, FCC Class A, UKCA

EOS Support

  • Win 11 IoT, Linux

Mounting

  • Wall mount kit

  • DIN-rail kit

Software Support

  • N/A
Downloads
pdf
Datasheet
Ordering Information

eBOX630B-U5-125H (P/N-E360630B00)
Fanless embedded AI system with Intel® 125H, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60VDC


eBOX630B-U7-155H (P/N-E360630B01)
Fanless embedded AI system with Intel® 155H, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60VDC


eBOX630B-U5-125U (P/N-E360630B02)
Fanless embedded AI system with Intel® 125U, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60VDC
