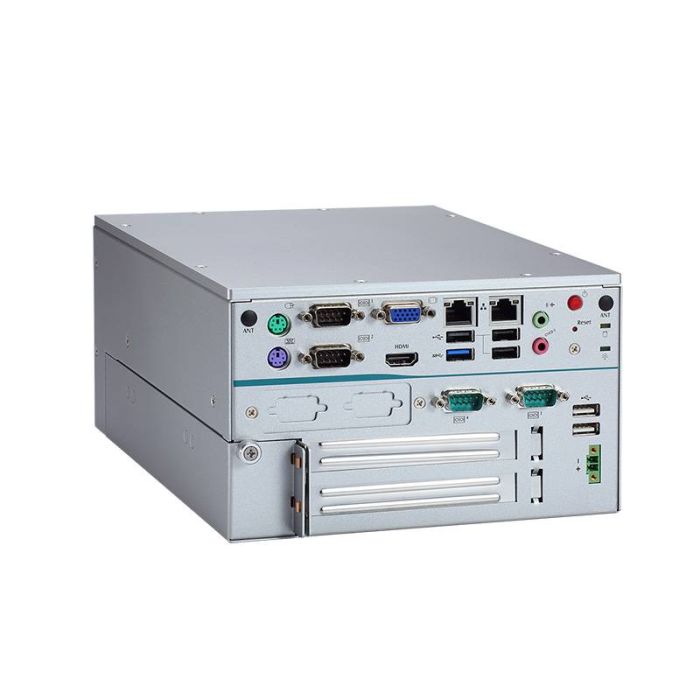

eBOX638-842-FL - Celeron J1900, 9 to 36 VDC Input
Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
● Intel® Celeron® Processor J1900 2.0 GHz
● Fanless operation design with full feature I/O
● HDMI and VGA with dual-view supported
● 6 USB, 2 LANs and 4 COM
● PCI Express Mini Card slot
● Flexible I/O window design
● Dual PCI or PCIe x1 expansion slots
● 9 to 36 VDC wide range power input
|
Standard Color |
Silver |
|
Construction |
Aluminum extrusion and heavy-duty steel, IP40 |
|
CPU |
Intel® Celeron® Quad-Core J1900 2.0 GHz |
|
System Memory |
1 x 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB |
|
Chipset |
SoC integrated |
|
BIOS |
AMI |
|
System I/O Outlet |
2 x RS-232/422/485 2 x RS-232 2 x 10/100/1000Mbps Ethernet (Realtek 8111F) 5 x USB 2.0 1 x USB 3.0 1 x Audio (Mic-in/Line-out) 1 x PS/2 keyboard & mouse 1 x HDMI 1 x VGA 1 x VDC power input connector 1 x ATX power switch 1 x Reset switch 2 x SMA-type antenna connector 1 x Flexible I/O window (default: 2 x DB9 half cut bracket) |
|
Watchdog Timer |
255 levels, 1 to 255 sec. |
|
Storage |
1 x 2.5” SATA HDD drive bay (max. up 15 mm height) 1 x mSATA (enabled in BIOS setting) |
|
Expansion Interface |
2 x PCI or 2 x PCIe x1 slots 1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x SIM slot |
|
TPM |
N/A |
|
System Indicator |
1 x green LED for system power 1 x yellow LED for HDD active |
|
Power Input |
9 to 36 VDC |
|
Operating Temperature |
-10°C to +55°C (14°F to +131 F ) (with W.T. DRAM & SSD) |
|
Humidity |
10% to 90%, non-condensing |
|
Vibration Endurance |
2 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
|
Dimensions |
192mm (7.56”) (W) x 230 mm (9.05”) (D) x 115.8 mm (4.56") (H) |
|
Weight |
(net/gross) 4.1 kg (9.03 lb) /4.8 kg (10.58 lb) |
|
Certifications |
CE compliance |
|
EOS support |
WES7, Win 10 IoT |
|
|
|
