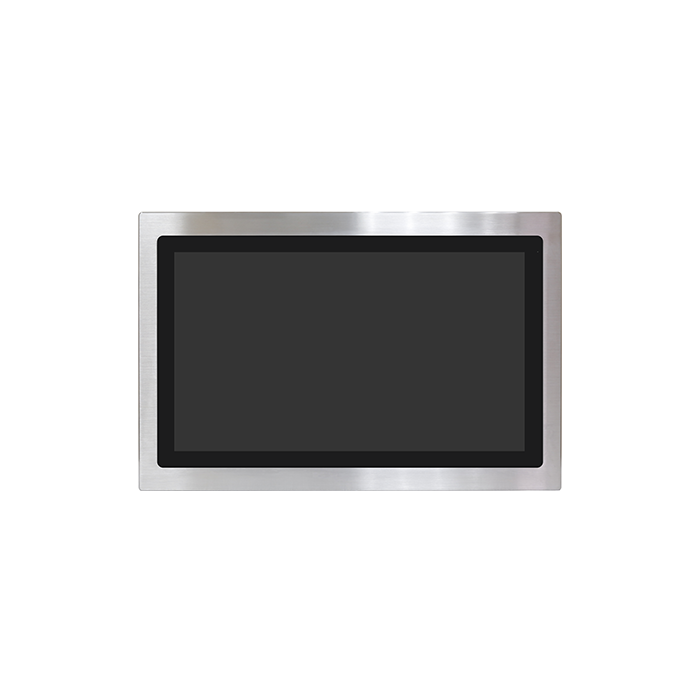

FABS-921BP/R(H) 21.5" Hygienic Design Compact Size Panel PC
Aplex FABS-921BP/R(H) 21.5" Food Safety Grade Panel PC IP69K 8th Gen 2xGbE Touchscreen
Key Features:
- 21.5" Food Industrial Panel PC
- Flat Front Panel Touch Screen with IP66/IP69 Front Bezel
- SUS304 Stainless Steel (option SUS316L)
- 8th Gen. Intel Core i3/i5, CPU built-in
- 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
- DC 9~36V Wide Range Power Input
- Support TPM2.0 Hardware Security
FABS-921BR
21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
FABS-921BP
21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
FABS-921BR(H)
21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/ i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
FABS-921BP(H)
21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/ i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
The system offers two CPU options: the 8th Gen Intel Core i3-8145UE Processor (2C/4T, 2.2GHz) and the Intel Core i5-8365UE Processor (4C/8T, 1.6GHz). It supports up to 32GB DDR4 2400MHz memory with one 260-pin SO-DIMM slot. The touch screen options include Projected Capacitive Touch for the FABS-921BP/R(H) models and Resistive Touch for the FABS-921BR(H) models, with light transmission rates of 90% and 80%, respectively. The panel PC features a flat front panel with an IP66/IP69 Front Bezel made of SUS304 Stainless Steel (optionally SUS316L). The power input ranges from DC 9 to 36V, providing wide-range power compatibility. Additionally, TPM2.0 hardware security is supported.
The IO port includes four USB 3.0 type A ports, one DB-9 connector (RS-232/422/485), two GbE LAN RJ-45 ports, one Line Out audio port, and one DP port. Optional features include a VESA Stand, 4G LTE/Wi-Fi 4/5/6+/BT, additional USB 2.0 ports, COM ports, CAN ports, LAN port, and a backup battery option.
The ordering information specifies four configurations with various touch screen and brightness options, processor choices, memory slots, and power input specifications. The models include FABS-921BR, FABS-921BP, FABS-921BR(H), and FABS-921BP(H), each with specific features to cater to different requirements. All models come with a Stainless front bezel and an Aluminum chassis.
Key Features:
- 21.5" Food Industrial Panel PC
- Flat Front Panel Touch Screen with IP66/IP69 Front Bezel
- SUS304 Stainless Steel (option SUS316L)
- 8th Gen. Intel Core i3/i5, CPU built-in
- 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
- DC 9~36V Wide Range Power Input
- Support TPM2.0 Hardware Security
|
System |
|
|
CPU |
Onboard 8th Gen Intel Core i3-8145UE Processor (2C/4T,2.2GHz)Intel Core i5-8365UE Processor (4C/8T,1.6GHz) |
|
System Chipset |
SoC |
|
Memory |
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
|
IO Port |
|
|
USB |
4 x USB 3.0 type A |
|
1 x DB-9 connector, Including: |
|
|
Serial / Parallel |
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable viajumper (COM1) |
|
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable |
|
|
LAN |
2 x GbE LAN RJ-45 |
|
Audio |
1 x Line Out |
|
DP |
1 x DP |
|
Power |
1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector |
|
VESALine-Out SW+Stand |
|
|
4G LTE/Wi-Fi 4/5/6+/BT |
|
|
4 x USB 2.0 (TB-528U4) |
|
|
4 x USB 2.0 + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) |
|
|
2 x COM (RS-232) (TB-528C2) |
|
|
Option |
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) |
|
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) |
|
|
2 x COM (RS-422/485, isolated) (TB-528C2I) |
|
|
2 x CAN (TB-528CAN2) |
|
|
1 x LAN + 2 x USB 2.0 (TB-528E1U2) |
|
|
Backup Battery 21W/10.8V/1.95Ah(3S1P) |
|
|
Storage Space |
|
|
Storage |
1 x M.2 M-Key slot (Support PCIe/SATA; 2242/2280, Default 2242) |
|
Expansion |
|
|
Onboard Expansion Bus |
1 x Mini-PCIe slot (full size) |
|
|
1 x Nano SIM Card Holder |
|
Display |
Standard |
High Brightness Optional |
|
Display Type |
21.5" TFT-LCD |
21.5" TFT-LCD |
|
Max. Resolution |
1920 x 1080 |
1920 x 1080 |
|
Max. Color |
16.7M |
16.7M |
|
Luminance (cd/m2) |
250 |
1000 |
|
View Angle |
178(H)/178(V) |
178(H)/178(V) |
|
Contrast |
1000:1 |
1000:1 |
|
Backlight Lifetime |
50,000 hrs |
50,000 hrs |
|
Touch Screen |
||
|
Type |
Projected Capacitive Touch (for BP model)Resistive Touch (for BR model) |
|
|
Interface |
USB |
|
|
Light Transmission(%) |
Resistive Touch: 80%Projected Capacitive: 90% |
|
|
Power |
||
|
Power Input |
DC 9~36V |
|
|
Power Consumption |
TBD |
|
|
Mechanical |
||
|
Construction |
SUS304 Stainless Steel Front Bezel (default) / SUS316L Stainless Steel Front Bezel (for option) / Aluminum Die-casting Back Cover |
|
|
Mounting |
Panel Mount, VESA Mount 100 x 100 |
|
|
IP Rating |
IP66/IP69K Compliant Front Bezel |
|
|
Dimensions |
573.8 x 378.8 x 59.8 mm |
|
|
Net Weight |
TBD |
|
|
Environmental |
||
|
Operating Temperature |
0~50 ̊C/ -20~60°C (option) |
|
|
Storage Temperature |
-30~70°C |
|
|
Humidity |
10 to 95%@ 40°C, non-condensing |
|
|
Certificate |
CE/FCC Class A / EN 1672-2 Compliant for P Model (optional) |
|
|
Operating System Support |
Windows 10 IoT, Windows 11 |
|
|
FABS-921BR |
21.5" FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis. |
|
|
FABS-921BP |
21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis. |
|
|
FABS-921BR(H) |
21.5" High brightness FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis. |
|
|
FABS-921BP(H) |
21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis. |
|
