Brand: Giada Technology Inc.

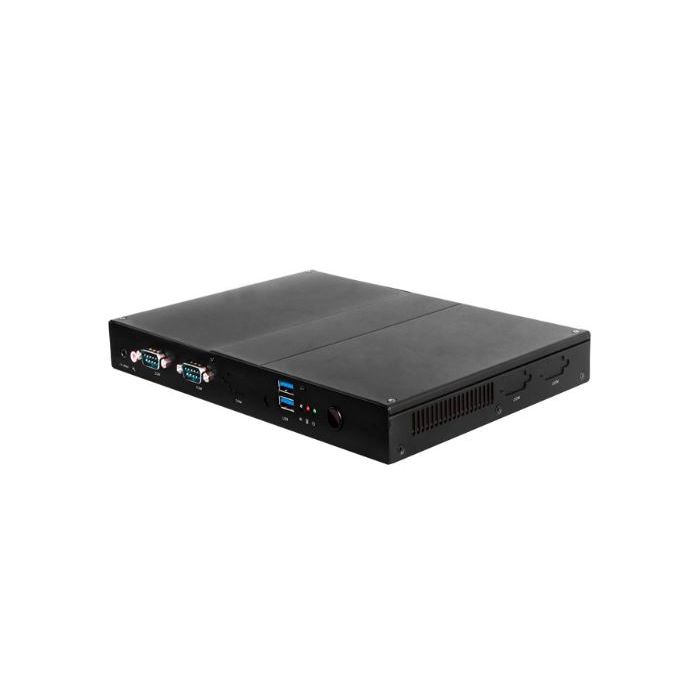

G468 Quad Display Media Player
In stock
SKU:
G486
REPLACED BY DM6
This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.
End of Life
Enquire Now
Enquire Now
The player adopts high-performance Ryzen Embedded V1605B/V1807B processors. It supports dual-channels DDR4 memory and it's flexible to extend the hard drive through M.2 and 2.5" SATA slots.
Key Features:
- AMD V1000 Platform Processors
- 2 x SO-DIMM DDR4-2400MHz, Up to 32GB
- 4 x HDMI
- 1 x 2.5"SATA,1 x M.2(2242/2280) for SSD
- 2 x USB 3.1,2 x USB 2.0,2 x RS232
- 1 x M.2(2230) for WiFi/BT
| Processor | CPU | AMD V1605B / AMD V1807B |
| Frequency | 2.0 GHz / 3.35 GHz | |
| BIOS | AMI Source Code | |
| Chipset | SOC | |
| Memory | Type | DDR4-2400MHz |
| Socket | 2 x SO-DIMM | |
| Max Size | Max 3200MHz 32GB | |
| Graphics | GPU | AMD VEGA GPU |
| Graphic Engine | DirectX12, OpenGL4.4 and OpenCL 1.2 | |
| HDMI | 4 x HDMI 2.0(Max.4096 x 2304 @60Hz) | |
| Network Controller | Realtek RTL 8111H Gigabit Ethernet | |
| I/O | USB | 2 x USB 3.1， 2 x USB 2.0 |
| Serial Port | 2 x RS232 | |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT & SPDIF | |
| Mini-PCIe1 | 1 x Full-size Mini-PCIe for mSATA | |
| M.2(2230) | 1 x M.2(2230) for WiFi/BT | |
| Storage | SATA | 1 x 2.5"SATA |
| M.2 | 1 x M.2(2242/2280) for SSD | |
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day, A Week as a Cycle | |
| Operation System | Windows | Windows 10(64-bit) |
| Linux | Supported | |
| Power | Power Type | DC-IN |
| Input Voltage | 19V / 4.74A | |
| Mechanical | Dimensions (W × D × H) | 240mm x 175mm x 28mm(9.45"x6.83"x1.1") |
| Construction | Metal | |
| Mounting(Optional) | Wall Mounting and VESA Mounting(JZ300) | |
| Colour | Black | |
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 140 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@60℃ (non-condensing) | |
| Certification | Certification | CE, FCC Class B, CCC |
