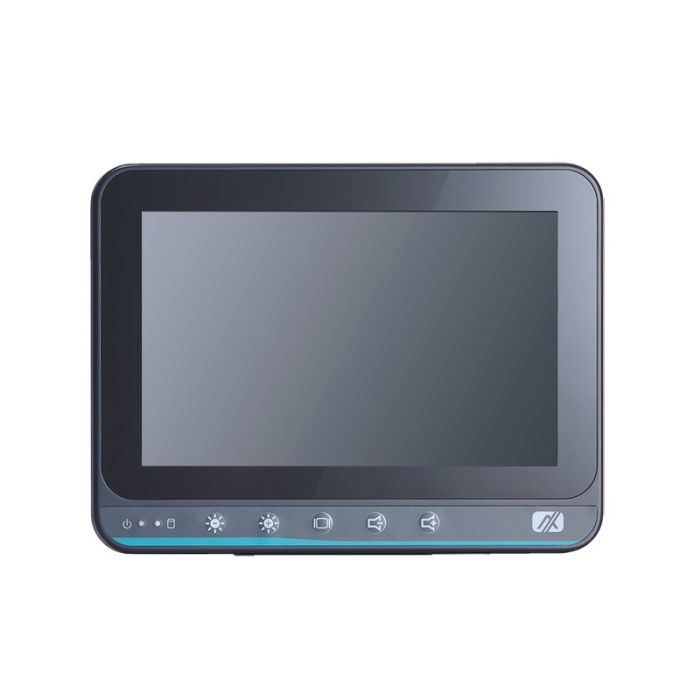

GOT107W-319 7" Fanless Touch Panel PC
7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
● 7" WSVGA TFT LCD display with LED backlight
● Fanless design with Intel® Celeron® processor N3350
● 2 GbE LANs, 2 USB and 2 COM
● Plastic and IP65-rated front bezel
● External AT/ATX mode selection switch
● Easy access storage design
● Supports panel mount, wall mount, VESA arm and desktop stand
|
Front Bezel |
IP65, NEMA 4 rugged protection, plastic front bezel |
|
|
LCD Panel |
Display Type |
7" WSVGA TFT LCD with LED backlight |
|
|
Brightness (cd/m2 ) |
320 nits |
|
|
Resolution |
1024 x 600 |
|
|
Viewing Angel (H/V) |
145°/150° |
|
Main System |
CPU |
Intel® Celeron® processor N3350 2 cores (up to 2.40 GHz) Intel® Pentium® Processor N4200 4 cores (up to 2.5 GHz) |
|
|
System Memory |
1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
|
|
BIOS |
AMI UEFI BIOS |
|
|
Storage |
1 x mSATA (default storage) 1 x MicroSD card |
|
|
Watchdog Timer |
255 levels, 0 to 255 sec. |
|
|
Onboard Graphics |
Integrated in Intel® GFX |
|
I/O Connector |
1 x RS-232/422/485 1 x RS-232 2 x 10/100/1000 Mbps Ethernet 2 x USB 3.0 1 x Screw type connector for power 1 x Power switch |
|
|
Expansion Interface |
1 x M.2 Key E for wireless module 1 x Full-size PCI Express Mini Card slot |
|
|
Touchscreen |
Projected capacitive multi-touch |
|
|
Power Supply |
DC version : 9 to 24VDC with adapter cable AC version: 100 to 240 VAC-DC, 60W power adapter |
|
|
Power Consumption |
20.4W |
|
|
Dimensions |
192 mm (7.56") (W) x 37.4 mm (1.47") (D) x 145 mm (5.7") (H) |
|
|
Packing Dimensions |
380 mm (15") (W) x 100 mm (4") (D) x 280 mm (11") (H) |
|
|
Weight |
(net/gross) 0.75 kg/2.0 kg |
|
|
Operating Temperature |
0°C to +50°C (+32°F to +122°F) |
|
|
Relative Humidity |
20% to 90% @ +40°C; non-condensing |
|
|
Operation Vibration |
2G, 5 to 500Hz, random for SSD |
|
|
Certifications |
CE, FCC class B |
|
