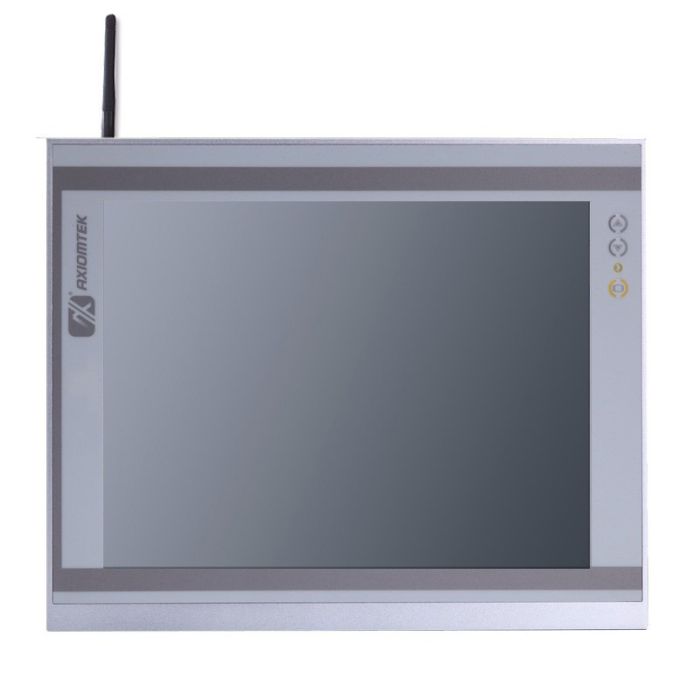

GOT3126T-834 12.1" Fanless Panel PC
12.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom® Processor E3827 (-20°C to +55°C) Features
12.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom® Processor E3827 (-20°C to +55°C) Features
● 12.1" XGA color TFT LCD display
● Fanless cooling system with Intel® Atom® E3827 1.75 GHz
● -20°C to +55°C wide temperature range
● 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 3 COM ports
● WLAN/3G module and antenna (optional)
● 2 Express Mini card slots
● 9to36 VDC wide voltage and over current protection
● Supports panel mount and optional VESA arm, desktop stand, wall mount
● 2.5" 7/9.5 mm SATA HDD & CFast™ or mSATA
● Adjust RS-232/422/485 setting via BIOS
|
Front Bezel |
IP65, NEMA 4 rugged protection, aluminum front bezel |
|
|
LCD Panel |
Display Type |
12.1" XGA TFT LCD |
|
|
Brightness (cd/m2 ) |
500 nits |
|
|
Resolution |
1024 x 768 |
|
Main System |
CPU |
Intel® Atom® processor E3827 2C @1.75 GHz (Bay Trail) |
|
|
Chipset |
SoC Intergrated |
|
|
System Memory |
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB |
|
|
BIOS |
AMI UEFI BIOS |
|
|
Storage |
1 x 2.5" 7/9.5 mm SATA HDD 1 x CFast™ or 1 x mSATA |
|
|
Watchdog Timer |
255 levels, 0 to 255 sec. |
|
|
Onboard Graphics |
Integrated Intel® HD Graphic |
|
I/O Connector |
3 x RS-232/422/485 (COM 1/2/3) 1 x VGA 1 x Audio (Line-out) 2 x USB 3.0 2 x USB 2.0 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT) |
|
|
TPM |
N/A |
|
|
Expansion Interface |
2 x PCIe Mini Card slot |
|
|
Touchscreen |
Resistive type |
|
|
Power Supply |
9to36 VDC with power protection |
|
|
Power Consumption |
36 W |
|
|
Dimensions |
311.5 mm (12.21”) (W) x 56.9 mm (2.23”) (D) x 250 mm (9.8”) (H) |
|
|
Packing Dimensions |
525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H) |
|
|
Weight |
(net/gross) 2.8 kg (6.17 lb)/ 5 kg (11.02 lb) |
|
|
Environment |
Operating temperature: -20°C to +55°C (-4°F to +131°F) (with W.T. DRAM/HDD/CF) |
|
|
Relative humidity: |
20% to 90% @ 40°C; non-condensing |
|
|
Operation vibration: |
1.3G, 10 - 500Hz, random for 2.5" HDD 2G, 10 - 500Hz, random for CompactFlash™ |
|
|
Certificate |
CE |
|
