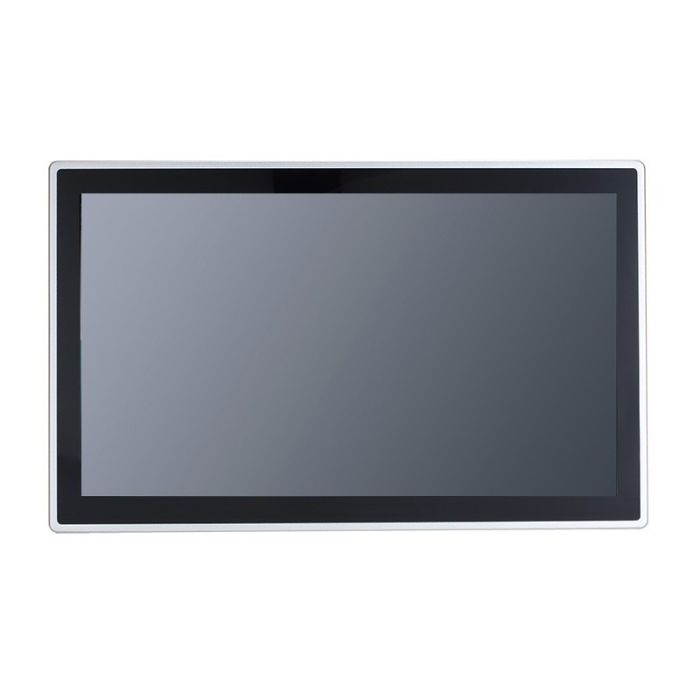

GOT315WL-845 15.6" WXGA Panel PC
15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
● 15.6" WXGA projected capacitive multi-touch wide screen
● Fanless design with Intel® Pentium® processor N3710
● 2.5" SATA HDD & mSATA
● 3G, WLAN module & antennas (optional)
● 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
● IP65-rated aluminum front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
● Adjustable RS-232/422/485 setting via BIOS
|
Front Bezel |
IP65 front bezel |
|
|
LCD Panel |
Display Type |
15.6" WXGA TFT LCD |
|
|
Brightness (cd/m2 ) |
400 nits |
|
|
Resolution |
1366 x 768 |
|
Main System |
CPU |
Intel® Pentium® processor N3710 4C @ 1.6 GHz (Braswell) |
|
|
Chipset |
SoC integrated |
|
|
System Memory |
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB |
|
|
BIOS |
AMI UEFI BIOS |
|
|
Storage |
1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA |
|
|
Watchdog Timer |
255 levels, 0 to 255 sec. |
|
|
Onboard Graphics |
Integrated Intel® HD Graphics |
|
I/O Connector |
1 x RS-232 1 x RS-232/422/485 (COM 1/2) 1 x switch for power on/off (ATX) 1 x audio (Line-out) 2 x USB 3.0 2 x USB 2.0 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT) |
|
|
TPM |
N/A |
|
|
Expansion Interface |
1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM |
|
|
Touchscreen |
Projected Capacitive multi-touch |
|
|
Power Supply |
DC version: 24 VDC |
|
|
Power Consumption |
72 W |
|
|
Dimensions |
396.8 mm (15.62") (W) x 59.0 mm (2.3") (D) x 247.1 mm (9.73") (H) |
|
|
Packing Dimensions |
525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H) |
|
|
Weight |
(net/gross) 4.5 kg (9.9 lb)/6.5 kg (14.3 lb) |
|
|
Operating temperature: |
0°C to +50°C (+32°F to +122°F) |
|
|
Relative humidity: |
20% to 90% @ +40°C; non-condensing |
|
|
Operation vibration: |
1G, 10 - 500 Hz, random for 2.5" SATA HDD |
|
|
Certificate |
CE |
|
