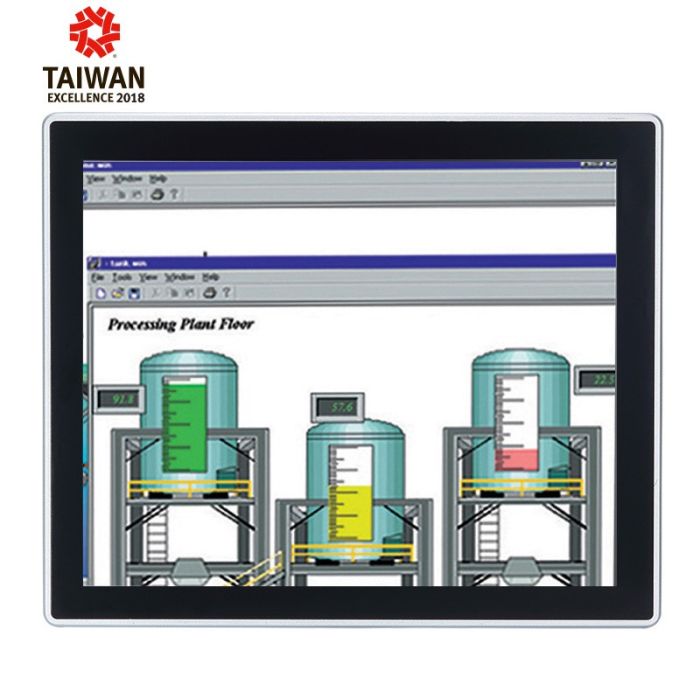

GOT3177T-311-FR 17" SXGA Panel PC
17" SXGA TFT Flat Bezel Expandable Touch Panel Computer with Intel® Pentium® Processor N4200
17" SXGA TFT Flat Bezel Expandable Touch Panel Computer with Intel® Pentium® Processor N4200
● 17" SXGA TFT flat resistive touch
● Fanless and modulized design
● Intel® Pentium® processor N4200 (Apollo Lake-M)
● 2.5" 7/9.5 mm SATA HDD and mSATA
● WLAN module & antenna (optional)
● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 4 COM
● 1 PCIe riser card expansion slot (optional)
● IP65-rated front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
|
Front Bezel |
IP65 front bezel |
|
|
LCD Panel |
Display Type |
17" SXGA TFT LCD |
|
|
Brightness (cd/m2 ) |
350 nits |
|
|
Resolution |
1280 x 1024 pixels |
|
Main System |
CPU |
Intel® Pentium® processor N4200 4C @ 1.6 GHz (Apollo Lake-M) |
|
|
Chipset |
SoC integrated |
|
|
System Memory |
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB |
|
|
BIOS |
AMI UEFI BIOS |
|
|
Storage |
1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA |
|
|
Watchdog Timer |
255 levels, 0 to 255 sec. |
|
|
Onboard Graphics |
Integrated Intel® HD Graphics |
|
I/O Connector |
2 x RS-232 2 x RS-232/422/485 (default RS-232) 2 x Audio (Line-out/Mic-in) 2 x USB 2.0 2 x USB 3.0 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT) |
|
|
TPM |
N/A |
|
|
Expansion Interface |
1 x Full-size PCI Express Mini Card slot with SIM 1 x Full-size PCI Express Mini Card slot with mSATA 1 x PCIe riser card slot (optional) |
|
|
Touchscreen |
Flat resisitve touch |
|
|
Power Supply |
DC version: 9 to 36 VDC |
|
|
Power Consumption |
69W |
|
|
Dimensions |
398.02 mm (15.64") (W) x 59.9 mm (2.36") (D) x 330.44 mm (13.01") (H) |
|
|
Packing Dimensions |
510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H) |
|
|
Weight |
(net/gross) 5.7 kg (12.6 lb) /8.0 kg (17.6 lb) |
|
|
Operating temperature: |
0°C to +60°C (+32°F to +140°F) |
|
|
Relative humidity: |
20% to 90% @ +40°C; non-condensing |
|
|
Operation vibration: |
1.0G, 10 - 500Hz |
|
|
Certificate |
CE |
|
