Brand: Axiomtek

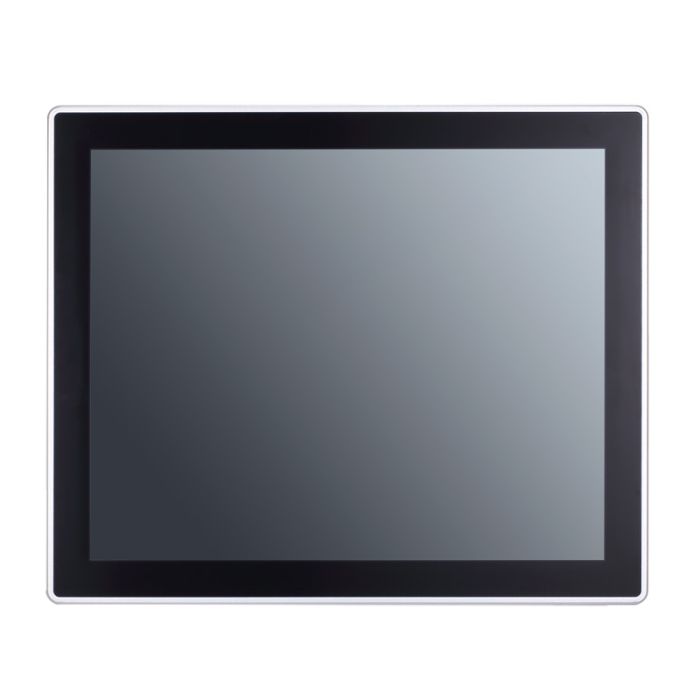

GOT317B-ADL-TRD 17" Fanless Touch Panel PC 13th/12th Gen

In stock

SKU:

GOT317B-ADL-TRD

17" SXGA Fanless Touch Panel Computer with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® Processor

Key Features:

17” SXGA LCD with 350 nits of brightness
5-wire resistive touch
Supports one 2.5” SATA HDD/SSD
Flat front panel touch screen with rugged IP65 front bezel
Fanless design
Supports WLAN module and antenna (optional)
Supports 4 USB and 2COM ports
TPM 2.0 onboard
Swappable HDD Tray
Supports panel mount, VESA mount, desktop stand, and wall mount

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of a series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the GOT317B-ADL-TRD, its 17-inch fanless touch panel computer powered by the high-performance 13th/12th gen Intel® Core™ i7/i5/i3 and Pentium® processor. The industrial-grade touch panel PC adopts a 17” SXGA widescreen LCD with 5-wire resistive touch and 350 nits of brightness. Designed to thrive in challenging environments, the GOT317B-ADL-TRD has an IP65-rated water/dust-proof front bezel and a wide operating temperature range of -10°C to 50°C, ensuring its suitability for heavy-duty industry and factory automation applications.

Key Features:

17” SXGA LCD with 350 nits of brightness
5-wire resistive touch
Supports one 2.5” SATA HDD/SSD
Flat front panel touch screen with rugged IP65 front bezel
Fanless design
Supports WLAN module and antenna (optional)
Supports 4 USB and 2COM ports
TPM 2.0 onboard
Swappable HDD Tray
Supports panel mount, VESA mount, desktop stand, and wall mount

This product is listed in Industrial Automation, Axiomtek, Industrial Panel Computers

Specifications

LCD Panel	17" SXGA TFT LCD 350 nits 1280 x 1024 pixels
CPU	LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor (up to 35W)
Chipset	Intel® H610
System Memory	1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS	AMI
COM	1 x 9-pin D-sub Male RS-232/422/485 1 x RS-232 via cable
USB	2 x USB 3.2 Gen1 (Type A) 2 x USB 2.0 (Type A)
Ethernet	1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V) 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display	2 x HDMI 1.4b
Audio	1 x Line out
Storage	1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion	1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0 1 x PCI Express Mini Card (USB+PCIe signal) 1 x Flexible IO window; supports COM3 (on board by option)
Others	TPM 2.0 1 x Phoenix-type connector for DC power input 1 x Switch for power on/off 1 x Remote power switch 1 x Grounding hole
Touchscreen	5-wire Resistive Touch Screen
Front Bezel	IP65 front bezel
Power Supply	12 - 24V DC-in via terminal block
Power Comsumption	120W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	-10°C to 50°C (35W CPU/SSD)
Relative Humidity	10% - 95% @40°C; non-condensing
Vibration	1G / 5 - 500Hz / operation (SSD, random)
Dimensions (W x D x H)	398 x 77.5 x 330.4 mm (15.67" x 3.05" x 13")
Weight (net/gross)	11 kg (24.25 Ib) /7.36 Kg (16.22 Ib)
Certifications	CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2 FCC 47 CFR Part 15 Subpart B (Class A) UKCA RoHS standard
EOS	Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting	Panel mount VESA mount Desktop stand Wall mount
