Brand: Axiomtek

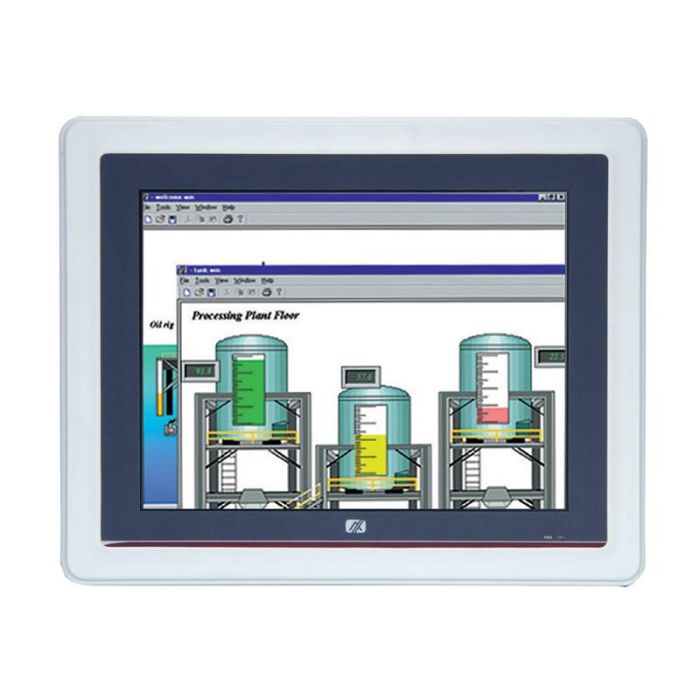

GOT5100T-845 10.4" XGA Fanless Panel PC

In stock

SKU:

GOT5100T-845

10.4" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

10.4" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

· 10.4" XGA/SVGA TFT LCD display with LED backlight

· Fanless design with Intel® Celeron® processor N3060

· 2 GbE LAN, 4 USB and 2 COM

· Plastic and IP65-rated front bezel

· Supports RFID (optional)

· External AT/ATX mode selection switch

· Easy access storage design

· Supports optional panel mount/wall mount/VESA arm/desktop stand

· Adjust RS-232/422/485 setting via BIOS

This product is listed in Industrial Automation, Axiomtek, Industrial Panel Computers

Specifications

LCD Panel	10.4" XGA/SVGA TFT LCD with LED backlight 350 nits (XGA) 400 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA)
CPU	Intel® Celeron® processor N3060 (up to 2.48 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485 (default RS-232)
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x Switch for power On/Off 1 x AT/ATX mode selection switch
Touchscreen	Resistive type
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	AC version: 100 - 240VAC-DC, 60W power adapter or DC version: 24 VDC with over current protection fuse
Power Comsumption	32W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition) 0°C to +45°C (+32°F to +113°F) (with W.T. DRAM/HDD)
Relative Humidity	20% - 90% @ +40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for SSD
Dimensions (W x D x H)	292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
Weight (net/gross)	1.8 kg (3.96 lb)/3 kg (6.61 lb)
Certifications	CE, FCC, UL60950-1
EOS	WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting	Panel mount Wall mount VESA arm Desktop stand

Downloads

Product Data Sheet

User Manual

GOT5100T-845 10.4" XGA Fanless Panel PC
