Brand: Axiomtek

GOT5153W-845 -15.6" WXGA Fanless Panel PC

In stock

SKU:

GOT5153W-845

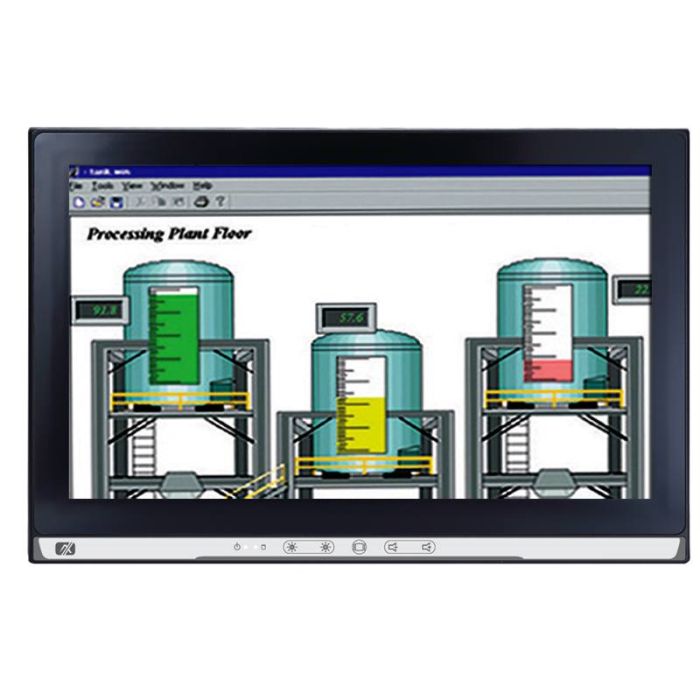

15.6" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Enquire Now

Name

Phone

Postcode

Message

15.6" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

· 15.6" WXGA wide screen TFT LCD display with LED backlight

· 15.6" projected capacitive touch or 5-wire flat resistive touch

· Fanless design with Intel® Celeron® processor N3060

· 2.5" SATA HDD or mSATA

· 2 GbE LANs, 4 USB, 2 COM and speakers

· IP65-rated front bezel and IPX1 full enclosure

· Supports wall mount, VESA arm and desktop stand

· Supports RFID (optional)

This product is listed in Industrial Automation, Axiomtek, Industrial Panel Computers

LCD Panel	15.6" WXGA TFT LCD with LED backlight 300 nits 1366 x 768 pixels
CPU	Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232) 1 x RS-232
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	1 x HDMI
Audio	Line-out
Storage	1 x mSATA 1 x 2.5" SATA HDD (7/9.5 mm height, AC version only)
Expansion	1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM
Others	1 x AT/ATX mode selection switch 1 x Switch for power on/off
Touchscreen	Projected capacitive multi-touch 5-wire flat resistive touch
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	DC version: 9 to 36 VDC with over-current protection fuse AC version: 100 to 240 VAC-DC, 60W power adapter
Power Comsumption	30 W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F) with W.T. DRAM/SSD
Relative Humidity	20% to 90% @ 40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for CFast™
Dimensions (W x D x H)	394.2 x 57 x 257.2 mm (15.53" x 2.25" x 10.13")
Weight (net/gross)	3.0 kg (6.61 lb)/4.5 kg (9.92 lb)
Certifications	CE, FCC, UL60950-1
EOS	WES7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting	Wall mount VESA arm Desktop stand
