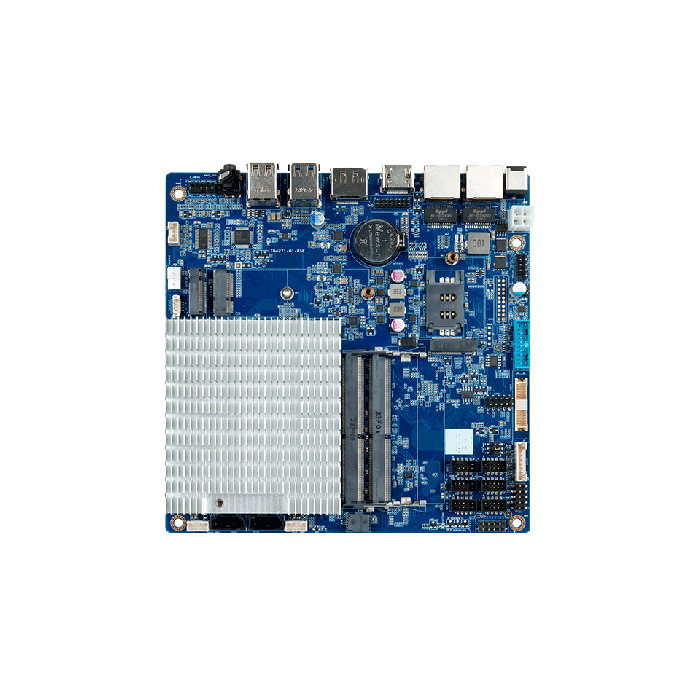

IB4-271 Long Life Cycle Thin Mini-ITX Motherboard
Giada IB4-271, a slim Mini-ITX motherboard featuring Elkhart Lake Celeron J6412 with a 10W TDP, is aligned with Intel® IOTG's roadmap, ensuring a 7+ years lifespan and notable performance enhancements.
Key Features:
- Elkhart Lake platform delivers up to 1.7x improvement in single-thread and 1.5x improvement in multi-thread performance.
- Three display outputs (DP, HDMI, LVDS) with 4K support via HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) powered by Intel® UHD Graphics.
- Wi-Fi 5/6 support for high-speed data transfer and seamless connectivity to various peripherals.
- Fanless design with a passive thermal cooling system reduces failure rates, ensuring noise-free and dustproof operation for mission-critical applications.
Performance and Lifespan
Giada IB4-271, a thin Mini-ITX motherboard, is equipped with the Elkhart Lake Celeron J6412, boasting a low TDP of 10W. Aligned with Intel®'s IOTG roadmap, this motherboard ensures a remarkable lifespan of over 7 years. The Elkhart Lake platform delivers significant performance enhancements, with up to a 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance from one generation to the next.
Display Capabilities
Featuring three display outputs—DP, HDMI, and LVDS—the Giada IB4-271 supports 4K display via HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) ports, all powered by Intel® UHD Graphics. This ensures a high-quality visual experience for various applications.
Connectivity with Wi-Fi 5/6
The Giada IB4-271 provides lightning-fast data transfer speeds and seamless connectivity with support for Wi-Fi 5/6. Whether connecting multiple high-resolution displays or transferring large files swiftly, this motherboard ensures optimal performance and versatility.
Efficient Cooling and Noise-Free Operation
Boasting a passive thermal cooling system and a fanless design, the Giada IB4-271 minimizes the failure rate and operates noise-free and dustproof. This feature makes the motherboard suitable for mission-critical applications where reliability is paramount.
In summary, the Giada IB4-271 stands out as a powerful, efficient, and reliable Mini-ITX motherboard, offering impressive performance, versatile connectivity, and robust design for various applications, including mission-critical scenarios.
Processor |
CPU |
Intel® Celeron® J6412 processor |
|
Frequency |
2.60 GHz |
|
|
Chipset |
SoC |
|
|
Processor Units |
4 Cores |
|
|
TDP |
10 W |
|

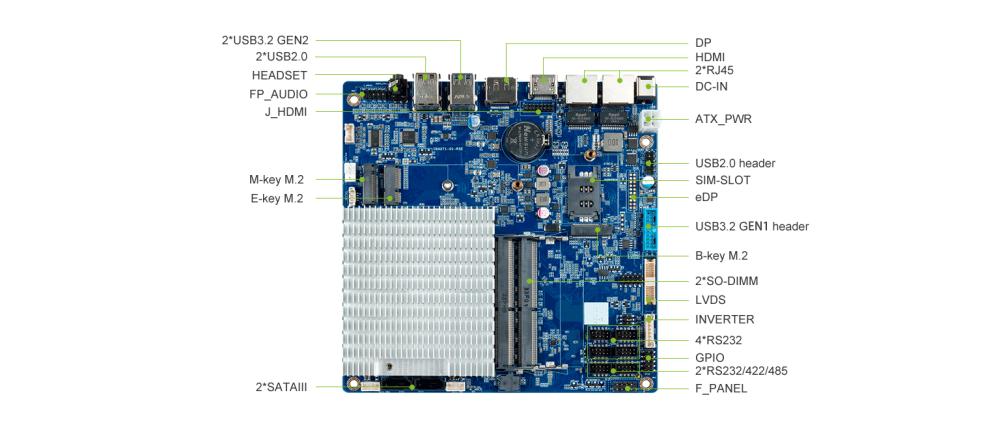

Rear I/O |
USB |
2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 |
|
Display Interface |
1 x HDMI (Max.4096 x 2160 @60 Hz) 1 x DP (Max.4096 x 2160 @60 Hz) |
|
|
Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
|
|
Ethernet Interface |
2 x RJ45 |
|
Internal I/O |
USB |
2 x USB3.2 Gen1, signal by 1 x 19pin header 2 x USB2.0, signal by 1 x 9pin header |
|
Display |
1 x 30pin dual channel 24bit LVDS 1 x 20pin eDP colay with LVDS 1 x 16pin J_HDMI colay with HDMI |
|
|
Serial port |
4 x RS232, signal by 4 x 9pin header 2 x RS232/422/485, signal by 2 x 9pin header |
|
|
Power |
1 x 4pin ATX PWR_IN, 2 x 4pin HDD_PWR |
|
|
Audio |
1 x 10pin FP_AUDIO, 1 x 4pin SPEAKER |
|
|
Others |
4 x GPI, 4 x GPO 1 x 10pin F_PANEL 1 x 3pin CLR_CMOS 1 x 8pin INVERTER 1 x 4pin SYS_FAN, 1 x 4pin CPU_FAN |
|
Network |
Network Controller |
2 x Realtek RTL 8111H Gigabit Ethernet |
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT, |
|
|
Mobile Network |
1 x B-Key M.2 (3042) for 3G/4G module, |
|
System |
GPU |
Intel® UHD Graphics (by CPU) |
|
Graphic Engine |
DirectX, OpenGL, OpenCL, Intel® Quick Sync Video |
|
|
System Memory |
Up to 32 GB, 2 x SO-DIMM DDR4-3200 MHz |
|
|
Storage |
1 x M-Key M.2 (2280) for SSD 2 x SATAIII |
|
|
TPM |
Optional: TPM2.0 |
|
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 12~24 V |
|
|
Dimensions |
Thin Mini-ITX, 170 mm x 170 mm (6.69” x 6.69”) |
|
|
Operating system |
Windows10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~60°C (32°F~114°F) @0.7m/s Air Flow |
|
|
Storage Temperature |
-20°C ~75°C (-4°F~167°F) |
|
|
Humidity |
95% @ 60°C (non-condensing) |
