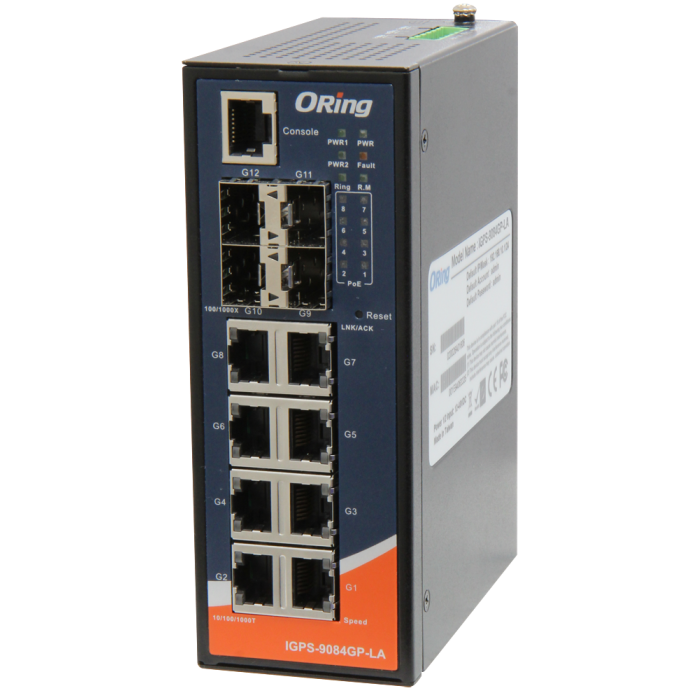

IGS-9084GP-LA 12 Port Managed Gigabit Ethernet Switch
8GE + 4G SFP Cyber-hardened Managed Ethernet Switch IEC 62443-4-2 Certified
Key Features:
- Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
- Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
- Support Modbus TCP and Ethernet/IP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
- + see more below!
IGS-9084GP-LA is a managed Ethernet switch with 8x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. Developed according to IEC 62443-4-1 and certified compliant with the IEC 62443-4-2 industrial cybersecurity standards. These standards cover product security and secure development life-cycle requirements, enabling our customers to meet secure industrial network design compliance requirements. With complete support for Ethernet Redundancy protocols such as O-Ring (recovery time < 30ms over 250 units of connection), MSTP (RSTP/STP compatible), G.8032 ERPS, and MRP, it can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The switch also supports a wide operating temperature range from -40°C to 75°C. In addition to a web-based interface, Telnet, and console (CLI) configuration, IGS-9084GP-LA can be centrally managed conveniently via Open-Vision.
Key Features include:
- Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
- Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
- Support Modbus TCP and Ethernet/IP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client and NTP server protocol
- Support IP-based bandwidth management
- Support application-based QoS management
- Support Device Binding
- Support DoS/DDoS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL, TACACS+ and 802.1x User Authentication for security
- Support 9.6K Bytes Jumbo Frame
- Syslog/SNMP Trap notification for warning of unexpected event
- Support DBU-01 backup unit device to quickly backup/restore configuration
- Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Support LLDP Protocol
- Robust EMS design, provide 8K ESD and 4KV Surge protection
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
|
Category |
Specification |
|---|---|
|
Physical Ports |
10/100/1000Base-T(X) Ports (RJ45 Auto MDI/MDIX): 8 100/1000Base-X SFP Ports: 4 |
|
Technology |
Ethernet Standards: - IEEE 802.3 (10Base-T) - IEEE 802.3u (100Base-TX, 100Base-FX) - IEEE 802.3ab (1000Base-T) - IEEE 802.3z (1000Base-X) - IEEE 802.3x (Flow Control) - IEEE 802.3ad (LACP) - IEEE 802.1p (COS) - IEEE 802.1Q (VLAN Tagging) - IEEE 802.1Q-2014 MSTP (STP/RSTP Compatible) - IEEE 802.1x (Authentication) - IEEE 802.1AB (LLDP) |
|
MAC Table |
8k |
|
Priority Queues |
8 |
|
Processing |
Store-and-Forward |
|
Shared Data Buffer |
4Mbit |
|
Switch Properties |
Switching Latency: 7 µs Switching Bandwidth: 12 Gbps Throughput: 17.856 Mpps @ 64 Bytes Packet Max VLANs: 4095 VLAN ID Range: VID 1 to 4094 IGMP Multicast Groups: 256 for Each VLAN Port Rate Limiting: User Define |
|
Jumbo Frame |
Up to 9.6K Bytes |
|
Security Features |
Device Binding Security Feature Enable/Disable Ports, MAC Based Port Security Port-Based Network Access Control (802.1x) VLAN (802.1Q) RADIUS Centralized Password Management SNMPv3 Encrypted Authentication and Access Security HTTPS/SSH Enhanced Network Security |
|
Software Features |
MSTP (RSTP/STP Compatible) Redundant Ring (O-Ring) with Recovery Time < 30ms over 250 Units TOS/DiffServ Supported Quality of Service (802.1p) VLAN (802.1Q) with VLAN Tagging IGMP Snooping IP-Based Bandwidth Management Application-Based QoS Management DoS/DDoS Auto Prevention Port Configuration, Status, Statistics, Monitoring, Security DHCP Server/Client/Relay SMTP Client Modbus TCP NTP Server |
|
Network Redundancy |
O-Ring, O-Chain, ERPS (Ethernet Ring Protection Switching), MRP*, MSTP (RSTP/STP Compatible) |
|
RS-232 Serial Console Port |
RS-232 in RJ45 Connector with Console Cable. 115200bps, 8, N, 1 |
|
LED Indicators |
Power Indicator (PWR): Green, Power LED x 3 Ring Master Indicator (R.M.): Green, System Operating in O-Ring Master Mode O-Ring Indicator (Ring): Green (Operating), Blinking Green (Ring Broken) Fault Indicator (Fault): Amber (Unexpected Event) |
|
10/100/1000Base-T(X) RJ45 Port Indicator |
Upper: Link/Act Indicator (Green), Lower: Speed Indicator (Green: 1000Mbps / Amber: 100Mbps / Off: 10Mbps) |
|
100/1000Base-X SFP Port Indicator |
Green for Port Link/Act |
|
Fault Contact |
Relay Output to Carry Capacity of 1A at 24VDC |
|
Reset Function |
Reset Button < 5 sec: System Reboot, > 5 sec: Factory Default |
|
Power |
Redundant Input Power: Dual DC Inputs, 12~48VDC on 6-Pin Terminal Block Power Consumption (Typ.): 13 Watts Overload Current Protection: Present Reverse Polarity Protection: Present |
|
Physical Characteristic |

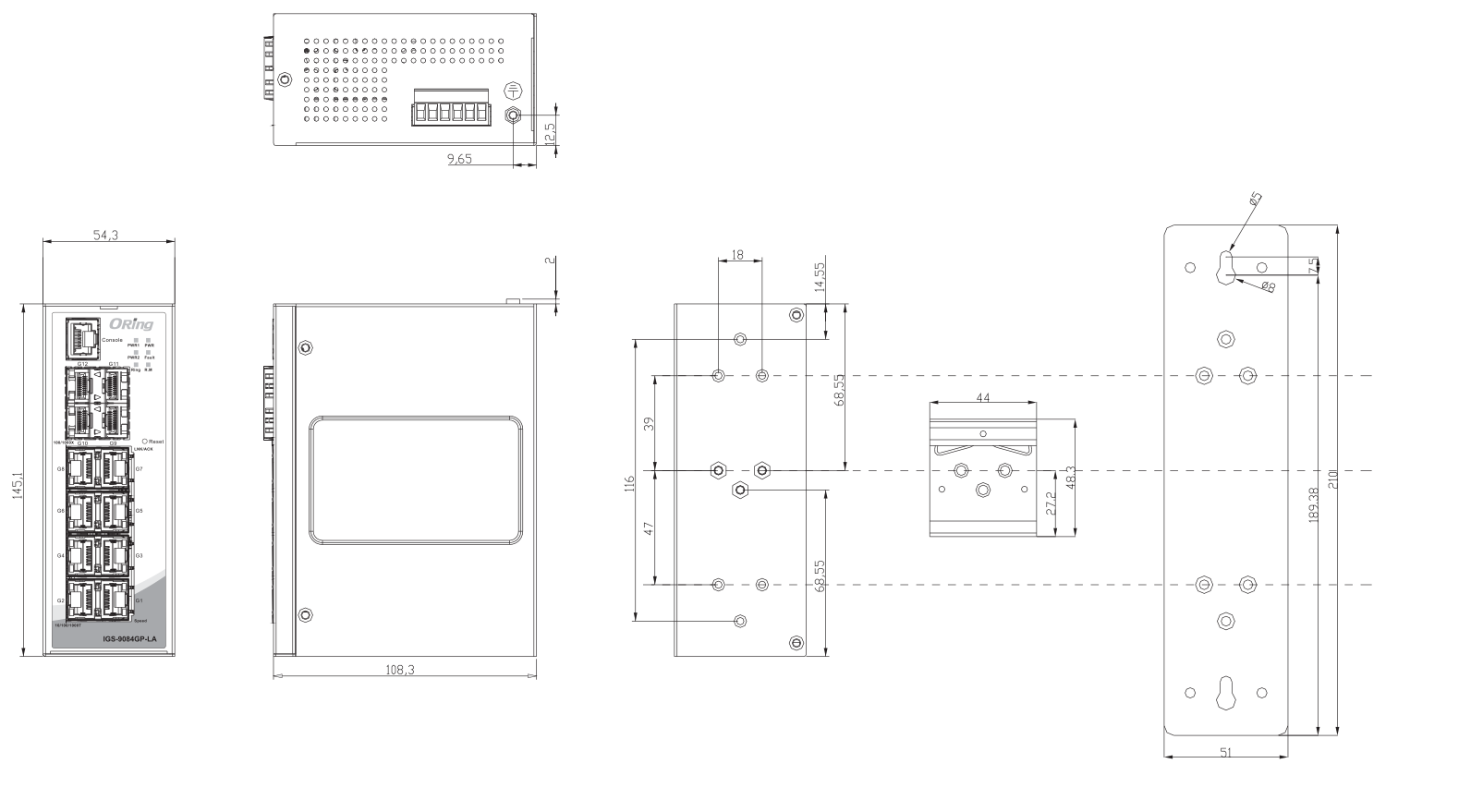

Enclosure: IP-30 Metal Dimensions (W x D x H): 54.3 x 120 x 145.1 mm (2.13 x 4.72 x 5.71 inches) Weight: 779g |
|
Environmental |
Storage Temperature: -40 to 85°C (-40 to 185°F) Operating Temperature: -40 to 75°C (-40 to 167°F) Operating Humidity: 5% to 95% Non-condensing |
|
Regulatory Approvals |
Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2 EMC: CE EMC (EN 55035, EN 55032), FCC Part 15B |
|
Other |
Design for Rugged Excellence * All specifications are subject to change without notice. |
Ordering Information
IGS-9084GP-LA
Industrial 12-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) and 4x100/1000Base-X, SFP socket
