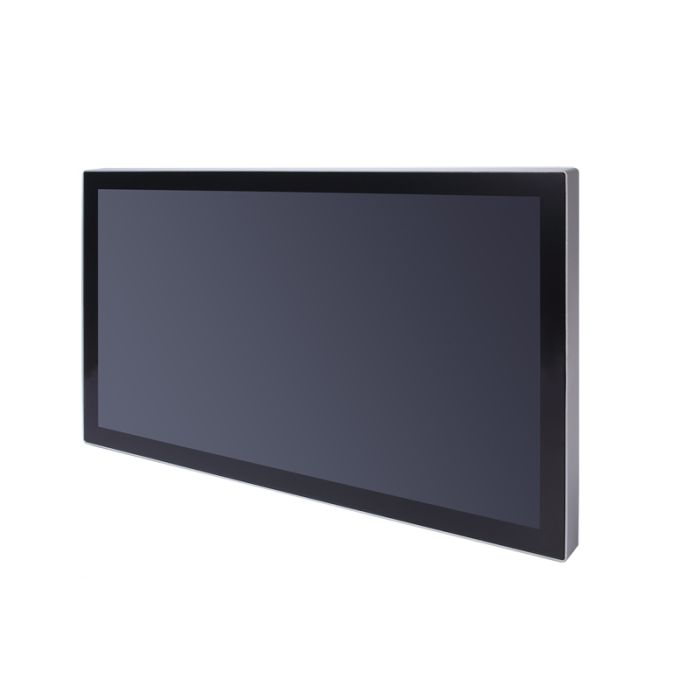

ITC210WM 21.5" Panel PC with SDM Module
21.5" FHD TFT-LCD Slim Bezel Modular Panel PC Powered by Intel® Smart Display Module
(SDM) CPU Card
· 21.5" full HD TFT-LCD
· Aspect ratio: 16:9; brightness: 250 nits
· Slim bezel shape under 48.5 mm thickness
· Projected capacity touch supported, 10-point touch
· Swappable CPU card design
· Supports Intel® SDM CPU card
· Metal frame structure for various application
· Supports add-on modules and mounting kits (optional)
Front Bezel IP54, metallic front bezel
LCD Panel
Main System
Display Type 21.5" FHD TFT-LCD
Brightness (cd/m2) 250 nits
16:9
Intel® SDM Small (SDM-S, 60 x 100 mm)
Intel® SDM Large (SDM-L, 175 x 100 mm)
1 x Power button with LED
1 x HDMI output
1 x USB 3.0 Type A
2 x USB 2.0 Type A
1 x microSD card slot (push-push type)
2 x 12 VDC-in barrel (screw-lock type)
1 x GbE LAN
2 x USB 3.0 Type A
2 x SMA antenna reserved hole
Resolution Aspect Ratio
1920 (H) x 1080 (V)
CPU Quad cores Intel® Pentium® N4200 1.1GHz processor or
Dual cores Intel® Celeron® N3350 1.1GHz processor
(depends on CPU Card)
System Memory Onboard LPDDR4 2400 MHz 4GB (8GB optional)
BIOS AMI UEFI BIOS
Storage 1 x eMMC 64GB onboard
Watchdog Timer 255 levels, 0 to 255 sec.
