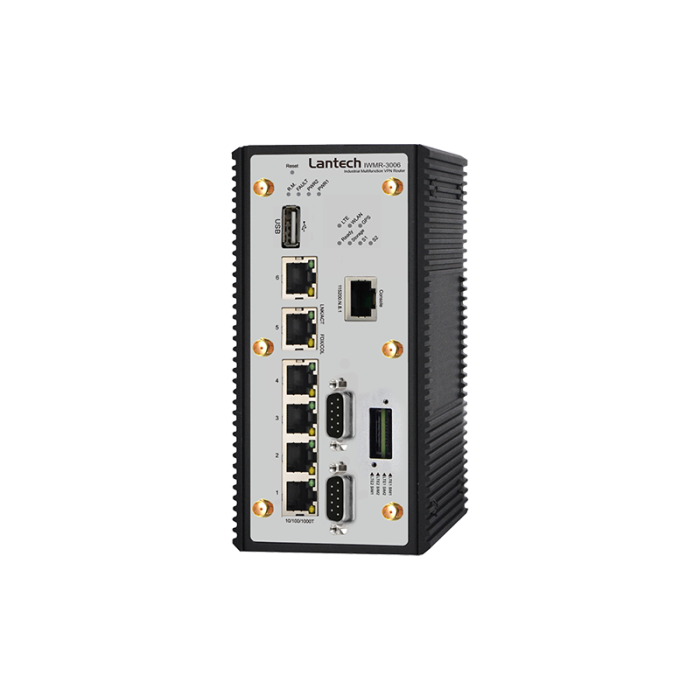

Model Code: IWMR-3006
- Up to 2 concurrent WIFI 11ac and redundancy(1L-2AC model)
ing Mode
AP/BRIDGE/Client modes
Radio Frequency Type
DSSS, OFDM
Wireless Standard
IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Wireless bandwidth
5GHz: Up to 1300Mbps 2.4GHz: Up to 450Mbps
Modulation
802.11b: DSSS 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Operating Frequency
IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz
Transmission Rate
IEEE802.11ac: up to 1300Mbps IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps IEEE802.11n: up to 450Mbps
IEEE 802.11b/g/n(2.4Gbps)
Output Power Tx +/- 2dB(per chain) 18dBm @ 1~11Mbps 18dBm @ 6~54Mbps 20/20dBm @ MCS0~MCS7 (HT20/40) Receiver Sensitivity Rx +/- 2dB ≦-95dBm @ 1~11Mbps ≦-92dBm @ 6~18Mbps ≦-88dBm @ 24Mbps ≦-85dBm @ 36Mbps ≦-81dBm @ 48Mbps ≦-80dBm @ 54Mbps ≦-94dBm @ MCS0 (HT20/40) ≦-76dBm @ MCS7 (HT20/40)
IEEE 802.11a/n/ac(5Gbps)
Output Power Tx +/- 2dB(per chain) 20dBm @ 6~24Mbps 16dBm @ 36~54Mbps 19/18dBm @ MCS0 (HT20/40) 16/16dBm @ MCS7 (HT20/40) 19/18/18dBm @ MCS0 (VHT20/40/80) 13/13/13dBm @ MCS8 (VHT20/40/80) 13/13dBm @ MCS9 (VHT40/80) Receiver Sensitivity Rx +/- 2dB ≦-92dBm @ 6~18Mbps ≦-86dBm @ 24Mbps ≦-84dBm @ 36Mbps ≦-81dBm @ 48Mbps ≦-80dBm @ 54Mbps ≦-93dBm @ MCS0 (HT20/40) ≦-71dBm/≦-80dBm @ MCS7 (HT20/40) ≦-90dBm @ MCS0 (VHT20/40/80) ≦-69dBm @ MCS8 (VHT20/40/80) ≦-66dBm @ MCS9 (VHT40/80
Encryption Security
WEP : (64-bit ,128-bit key supported) WPA /WPA2 : IEEE802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) OKC** and 802.11r** EAP,MD5,EAP,TLS,EAP,TTLS,EAP MsCHAPv3 and PEAP **
Wireless Security
SSID broadcast disable**
