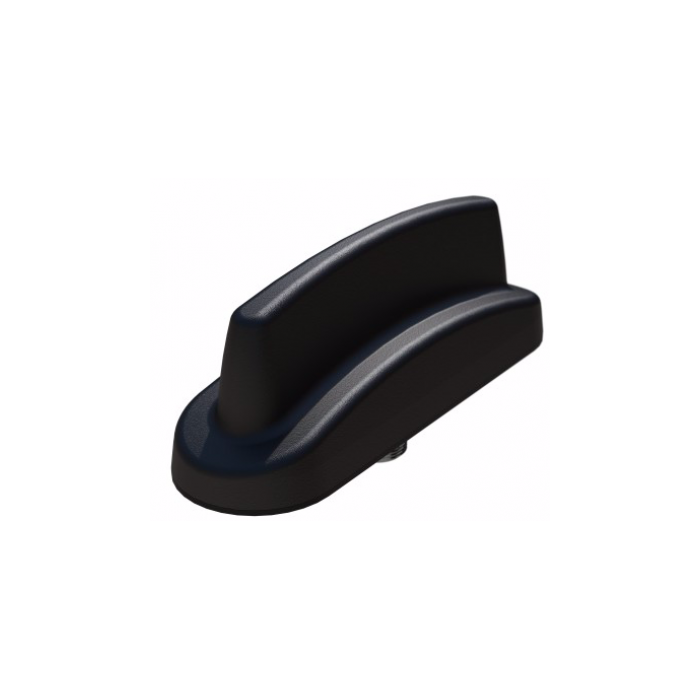

LP[G]AM-BC3G-26 Compact Low Profile MiMo 2G/3G/4G Antenna
2x2 698-960/1710-3800MHz, 1562-1612 26dB LNA, 3x 3m RG174 SMA Plug (m)
Key Features:
- Compact low-profile MiMo LTE antenna,
- High performance in a distinctive design,
- Optional GNSS version available
- Covers all 2G/3G/4G/5G LTE cellular bands,
- Weatherproof design,
- Single-hole mount with a small footprint
- Provides MiMo LTE capability in a compact antenna,
- Easy to install with integrated cables,
- Can perform on or off a conductive surface
The weatherproof, compact, low-profile housing houses two antenna elements with effective isolation and correlation that cover all current global cellular and LTE bands in the frequency ranges 698-960/1710-3800MHz. For applications that require position or timing, the LG version includes an active GPS/GNSS/Galileo/Beidou antenna.
With the single-hole mounting bush and acrylic adhesive sealing pad, the antenna can be installed on a non-conductive panel if necessary* and provides easy, quick, secure, and weatherproof installation. The antenna, which comes with an integrated 1m (3.3') or 3m (10') cable and SMA plug connectors, will provide plug-and-play connectivity with a variety of terminals.
Key Features:
- Compact low-profile MiMo LTE antenna,
- High performance in a distinctive design,
- Optional GNSS version available
- Covers all 2G/3G/4G/5G LTE cellular bands,
- Weatherproof design,
- Single-hole mount with a small footprint
- Provides MiMo LTE capability in a compact antenna,
- Easy to install with integrated cables,
- Can perform on or off a conductive surface
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Global Positioning | GPS / GNSS 1562-1612 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| Ground Plane Independent | Yes |
| Global Positioning Data | |
| Frequency Range (MHz) | 1562-1612 |
| LNA Gain (dB) | 26dB |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 150 |
| Width (mm) | 45 |
| Height (mm) | 49 |
| Operating Temperature | -30 / + 70°C |
| Mounting Data | |
| Mounting Type | Panel Mount |
| Mounting Method | 18mm (3/4") Mounting Bush |
