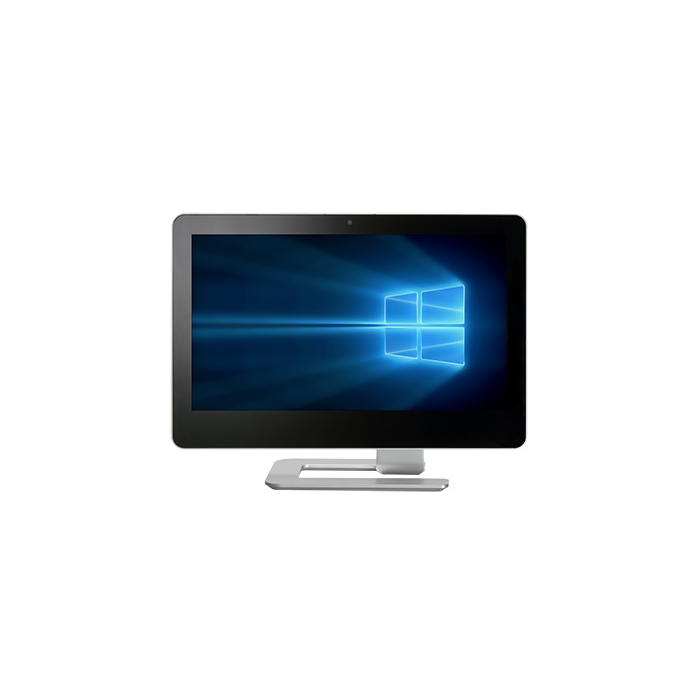

M1080 - 23.6" FHD 7th gen i series CPU
In stock
SKU:
M1080 - 7th gen i series CPU & FHD LCD
23.6" All In One System Intel® 7th & 6th core I series
Enquire Now
Enquire Now
23.6" Full HD TFT LCD with 30,000 backlight lifetime
True-flat touchscreen with projected capacitive multi-touch control
High-quality stereo sound
| M1080 (M1080) Specifications | |||
|---|---|---|---|
| MECHANICAL | MOUNTING | 100 mm x 100 mm VESA Mount Kit (Optional) | |
| DIMENSIONS (W X D X H) | 588.2 x 444.4 x 199.5 mm (w/ Stand) | ||
| WEIGHT | 9.5kg (20.9 lb) | ||
| LCD | DISPLAY TYPE | 23.6" TFT-LCD | |
| MAX. RESOLUTION | 1920 x 1080 | ||
| MAX. COLORS | 16.7M (6 bit) | ||
| LUMINANCE (cd/m2) | 300 | ||
| VIEWING ANGLE (H/V) | 170° / 160° | ||
| LED BACKLIGHT LIFETIME (hrs) | 30,000 | ||
| SIDE I/O PORT | USB 2.0 | 2 | |
| 4-IN-1 CARD READER | 1 | ||
| ODD | DVD super-multi double layer (optional) / Blu-ray ODD support (optional) | ||
| WEBCAM | 1.0 HD mega pixel, HD 720p 16:9 lens with array digital microphone | ||
| SYSTEM BOTTOM | Power / Brightness control / HDMI-in | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat 10 points | ||
| SYSTEM | PROCESSOR | 7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 65W | |
| CHIPSET | Intel® H110 | ||
| SYSTEM MEMORY | DDR4 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| ETHERNET | Realtek® RTL8111G Giga LAN | ||
| I/O PORT | 1 x DC Jack / 4 x USB 3.0 / 1 x RJ-45 / 1 x VGA / 1 x HDMI 1.4 / 1 x Line-out / 1 x Mic-in | ||
| EXPANSION SLOT | Mini PCIe Half size (PCIe / USB) / Mini PCIe Full size (PCIe / USB / SATA) | ||
| STORAGE | 1 x SATA 2.5” / 3.5" HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 5W | ||
| OS SUPPORT | 7th Gen Kaby Lake: Windows 10 64bit, Linux (support by request) / 6th Gen Skylake: Windows 7 32 / 64bit | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | 19V DC-in connectivity | |
| POWER ADAPTER | DC19V / 9.5A / 180W adapter / AC / DC | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0~ 40°C (32 ~ 104°F) | |
| STORAGE TEMPERATURE | -20 ~ 60°C (-4 ~ 140°F) | ||
| STORAGE HUMIDITY | 10% ~ 95% @60°C non-condensing | ||
| VIBRATION RESISTANCE | Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD | ||
| SHOCK RESISTANCE | Operating 50 G peak (3 ms duration) | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | - | ||
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / US + EU Power Cord / 1 x Panel PC / 1 x Power Adapter (19V, 180W, DC Jack Type) | |
