M200i 19.5" Panel PC/AIO, Celeron N2930
9.5" All In One System / Intel® N2930
- 19.5" HD TFT LCD with 30,000 hrs backlight lifetime
- True-flat touchscreen with projected capacitive multi-touch control

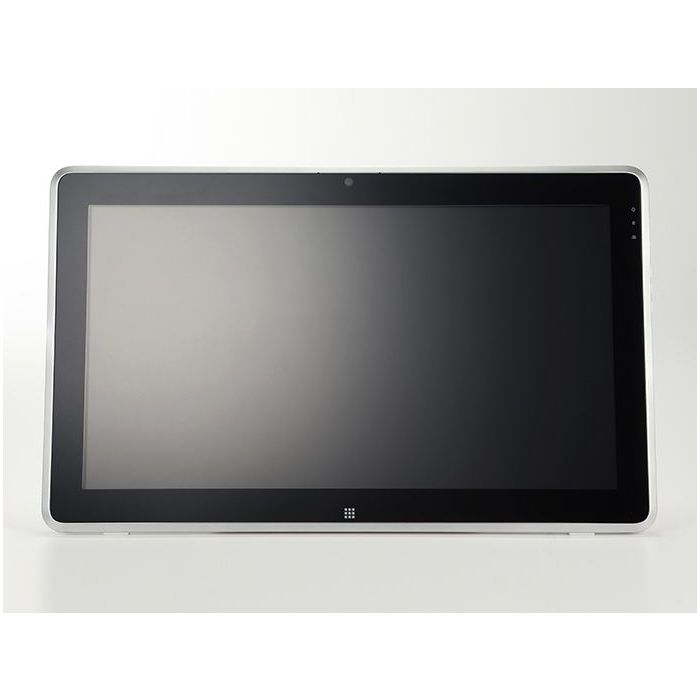

The Maestro 200 / 200i is a 19.5" Panel PC / AIO from Mitac with a seamless PCAP touchscreen with up to 10 finger touch. Its the ideal solution for Kiosks and POI applications with an auto rotation function for portrait applications
Based on the Intel® Celeron™ N2930 Baytrail-M CPU the unit is available in black or white case and can used with a stand or wall mounted with a VESA bracket. The external I/O includes 2 x USB (4 x USB on M200i), 2 x RS232 and Gigabit LAN. Internally there are 2 x mPCIe expansion slots for WLAN, BT and WWAN configuration options. Other features include dual digital microphones, dual speakers, SD card reader and kensington lock.
The unit has the option of a 3 hour internal battery, ideal for situations where power in unstable
The unit will support Windows 7, 8.1, or 10 operating systems.
Intel® Celeron™ N2930 Baytrail-M CPU
Up to 8GB memory
2.5" SATA / mSATA storage
2 x mPCIe (for WLAN/BT/WWAN)
1 x HDMI / 1 x VGA
2 x RS232
1 x USB2.0, 1 x USB3.0 (M200)
2 x USB2.0, 2 x USB3.0 (M200i)
1x GbE
12 VDC input
Overall size 116 x 107 x 30mm
0 to 40c operating
O/S - Win8/8.1/Win10
Digital Signage
Public Information Display
POI/POS terminal
M200i (M200i) |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ordering Information |
|||||||||||||||||||
| Model | CPU | USB 3.0 / 2.0 / Card Reader | Line out / Mic-in | mPCIe Full / Half Size | RS232 | LAN | Wifi / BT | Power | |||||||||||
| M200i | N2930 | 0 / 4 / 1 | 0 | 0 /1 | 2 | 1 | Optional | DC-in 19V | |||||||||||
| M200i (M200i) Specifications | |||
|---|---|---|---|
| MECHANICAL | MOUNTING | 100 mm x 100 mm VESA Mount Kit (Optional) | |
| DIMENSIONS (W X H X D) | 501.7 x 309.4 x 29 mm | ||
| WEIGHT | 3kg (6.6 lb) | ||
| LCD | DISPLAY TYPE | 19.5" TFT-LCD | |
| MAX. RESOLUTION | 1600 x 900 | ||
| MAX. COLORS | 16.7M (6 bit) | ||
| LUMINANCE (cd/m2) | 250 | ||
| VIEWING ANGLE (H/V) | 178° / 178° | ||
| LED BACKLIGHT LIFETIME (hrs) | 30,000 | ||
| SIDE I/O PORT | SD CARD READER | - | |
| WEBCAM | 1.0 HD mega pixel, HD 720p 16:9 lens with array digital microphone | ||
| SYSTEM BOTTOM | Power | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat 10 points | ||
| SYSTEM | PROCESSOR | Intel® Celeron® Processor N2930 (2M Cache, up to 2.16 GHz) | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR3L 1333 MHz / 1 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
| ETHERNET | Realtek® RTL8111G Giga LAN | ||
| I/O PORT | 2 x RS232 / 4 x USB 2.0 / 1 x DC Jack / 1 x RJ-45 | ||
| EXPANSION SLOT | Mini PCIe Half size (PCIe / USB) | ||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | Windows 7 32bit / 64bit / Windows 10 64bit / Linux (support by request) | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | 19V DC-in connectivity | |
| POWER ADAPTER | AC / DC / DC19V / 3.4A / 65W adapter | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 35°C (32 ~ 95°F) | |
| STORAGE TEMPERATURE | -20 ~ 60°C (-4 ~ 140°F) | ||
| STORAGE HUMIDITY | 10% ~ 95% @60°C non-condensing | ||
| VIBRATION RESISTANCE | Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD | ||
| SHOCK RESISTANCE | Operating 50 G peak (3 ms duration) | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | - | ||
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC | |
