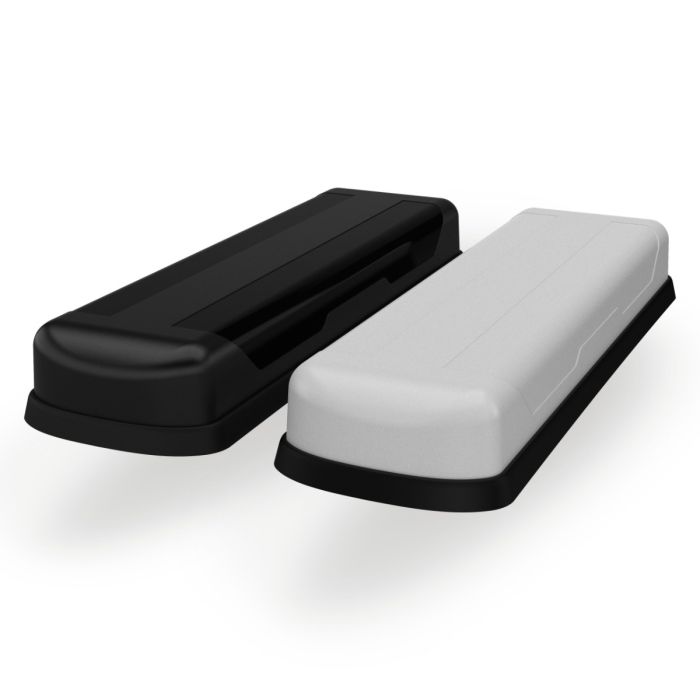

The 'Megalodon' 8 x 4G/5G Low Profile Antenna
Industry Leading 8x8 MiMo 4G/5G Dome Combination Antenna Range
Key Features:
- 8x 4G/5G Elements
- Up to 8×8 MiMo Dual Band WiFi 6e / 7
- Up to 2 GPS/GNSS L1 or L1/L5 bands
- Meets IK10 and IP69K
- UN ECE R118 compliant cable
- Low Height
The industry-leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low-profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with several other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame-retardant low-loss CS30 cables (Compliant with UN ECE R118) and a halogen-free, flame-retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.
The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
|
ELECTRICAL DATA |
|
|---|---|
|
Pattern |
Omnidirectional |
|
Max Input Power(W) |
50 |
|
Typical VSWR |
<3:1 |
|
Frequency Range | Gain |
Check the part number table |
|
Cellular LTE Elements |
8×8 – 2x 4×4 MiMo |
|
WIFI Elements |
No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 8×8 MiMo |
|
UHF Elements |
No |
|
GPS DATA |
|
|
GPS Frequency Range |
1559-1612MHz; 1164-1189MHz/1559-1612MHZ |
|
LNA GAIN (dB) |
26dB; 30dB / 26dB; 30 / 26dB |
|
Number of GPS Elements |
No; 1 Module; 2 Modules |
|
MECHANICAL DATA |
|
|
Colour |
White; Black |
|
Length |
437 (mm) | 17.20 (in) |
|
Width |
133 (mm) | 5.24 (in) |
|
Height |
max: 56 (mm) | 2.2 (in) |
|
Operating Temperature |
-40°/ +80°C (-40.0°/ +176.0°F) |
|
CABLE DATA |
|
|
Cable Length – LTE |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable length – GPS |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable Length – WIFI |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable Type (LTE) |
CS30; FR CS32 |
|
Cable Type (GPS) |
FR RG174; FR CS29 |
|
Cable Type (WIFI) |
CS30; FR CS32 |
|
Quantity of Cell Cable |
8 |
|
Quantity of GPS/GNSS Extension |
max: 2 |
|
Quantity of WIFI Extension |
max: 6 |
|
TERMINATION DATA |
|
|
Connector (WIFI) |
SMA (f); Reverse Polarity SMA |
|
Connector (GPS) |
SMA (m) |
|
Connector (LTE) |
SMA (m) |
|
MOUNTING DATA |
|
|
Mounting Type Fixed |
Panel |
|
Mounting Methods |
Panel |
|
APPROVALS DATA |
|
|
IP Rating |
IK10; IP69K |
|
Cable Flammability |
UN ECE R118 |
|
TECHNOLOGY DATA |
|
|
Technology |
4G/5G; 5G; 169MHz; 2G/3G/4G; Band 71 600MHz ready; CBRS; FirstNet; GPS; GNSS; WIFI MIMO; WIFI; WIFI 6E |
|
SKU |
Colour |
Frequency Range | Gain |
Cellular |
GPS |
WIFI |
|---|---|---|---|---|---|
|
LPMM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
No |
No |
|
0.3m |
|||||
|
SMA (m) |
|||||
|
LPMM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
No |
No |
|
0.3m |
|||||
|
SMA (m) |
|||||
|
LGMM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
No |
|
0.3m |
0.3m |
||||
|
SMA (m) |
SMA (m) |
||||
|
LGMM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
No |
|
0.3m |
0.3m |
||||
|
SMA (m) |
SMA (m) |
||||
|
LG5MM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
No |
|
0.3m |
0.3m |
||||
|
SMA (m) |
SMA (m) |
||||
|
LG5MM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 4400 – 6000MHz | 8dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
No |
|
0.3m |
0.3m |
||||
|
SMA (m) |
SMA (m) |
||||
|
LGMDM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
2 x 2 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MQM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MDM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
2 x 2 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MDM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
2 x 2 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMHM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMHM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MHM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MHM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMQM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMQM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MQM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMOM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
8×8 MiMo |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LGMOM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
8×8 MiMo |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MOM8B-6-60 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
8×8 MiMo |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG5MOM8-6-60 |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
8×8 MiMo |
|
0.3m |
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (m) |
SMA (f) |
|||
|
LG-IN2902 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
|||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
|||
|
LG-IN2902-W |
White |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
|||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
|||
|
LG-IN2904 |
Black |
617 – 960MHz | 3dBi; 1427 – 4200MHz | 7dBi; 2400 – 2485MHz | 6dBi; 4400 – 6000MHz | 8dBi; 5150 – 7125MHz | 7dBi |
8×8 – 2x 4×4 MiMo |
2 Modules |
6 x 6 MIMO |
|
5m |
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
|||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
