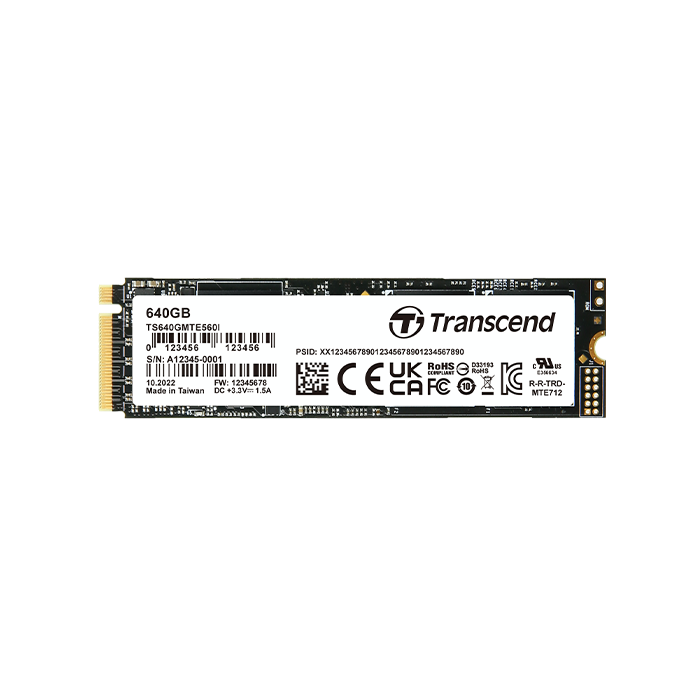

MTE560I PCIe M.2 SSD
80GB/160GB/320GB/640GB PCIe M.2 SSD PCIe Gen 4x4 interface 112 layers of 3D NAND flash SLC Mode technology
Transcend's M.2 SSD MTE560I is equipped with a PCI Express (PCIe) Gen 4 x4 interface, 112 layers of 3D NAND flash, and SLC Mode technology, which provides high sustained speeds and SLC-grade durability. Its built-in DRAM cache allows for fast random read and write speeds while also increasing drive endurance. Furthermore, the 30" gold finger PCB, Corner Bond technology, and anti-sulfur resistors ensure its dependability in harsh environments. Transcend's MTE560I is also 100% chamber tested in-house for a wide range of operating temperatures ranging from -40°C to 85°C.
The MTE560I is also a self-encrypting drive (SED) that meets TCG (Trusted Computing Group) 2.0 standards. Data is safeguarded by hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions.
Key Features:
Firmware:
- Supports NVM command
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES)
- Compliant with TCG Opal specifications and IEEE 1667 standards
Hardware:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.4
- Compliant with PCI Express specification 4.0
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- PCIe Gen 4 x4 interface
- DDR4 DRAM Cache embedded
- High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software
Appearance |
|
| Dimensions | 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
|---|---|
| Weight | 9 g (0.32 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 5 watt(s) |
| Power Consumption (IDLE) | 1.25 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 3,800 MB/s Write: up to 3,100 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 190,000 IOPS Write: up to 320,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 9,500 TBW |
| Drive Writes Per Day (DWPD) | 54.2 (3 yrs) |
| Note |
|
