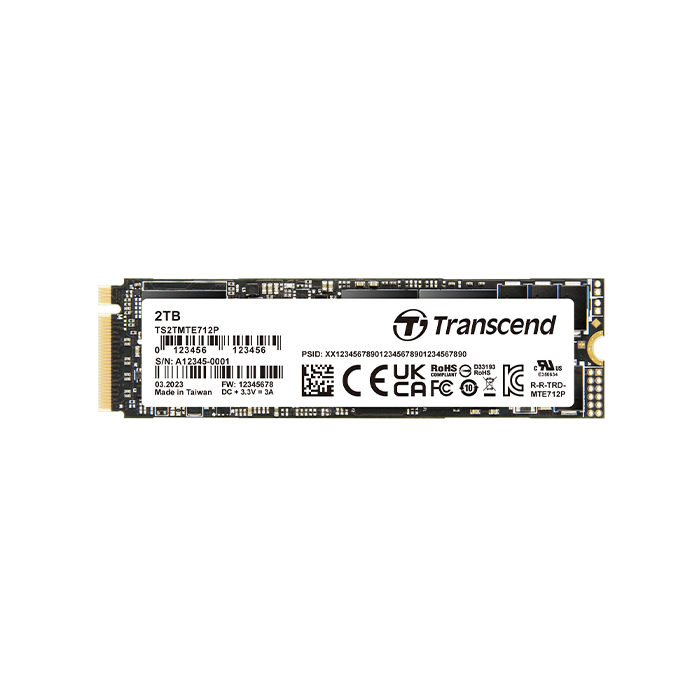

MTE712P & MTE712P-I PCIe M.2 SSD
In stock
SKU:
TSxxxxMTE712P/-I
PCIe M.2 SSD, Power Loss Protection (PLP), built-in tantalum capacitor and DRAM cache
Key Features:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.4
- Compliant with PCI Express specification 4.0
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- PCIe Gen 4 x4 interface
- DDR4 DRAM Cache embedded
- High-quality 3D NAND flash
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
Enquire Now
Enquire Now
Appearance |
|
| Dimensions | 80 mm x 22 mm x 3.88 mm (3.15" x 0.87" x 0.15") |
|---|---|
| Weight | 9 g (0.32 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 4 watt(s) |
| Power Consumption (IDLE) | 1.35 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 3,800 MB/s Write: up to 3,100 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 350,000 IOPS Write: up to 340,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 4,320 TBW |
| Drive Writes Per Day (DWPD) | 1.97 (3 yrs) |
| Note |
|
