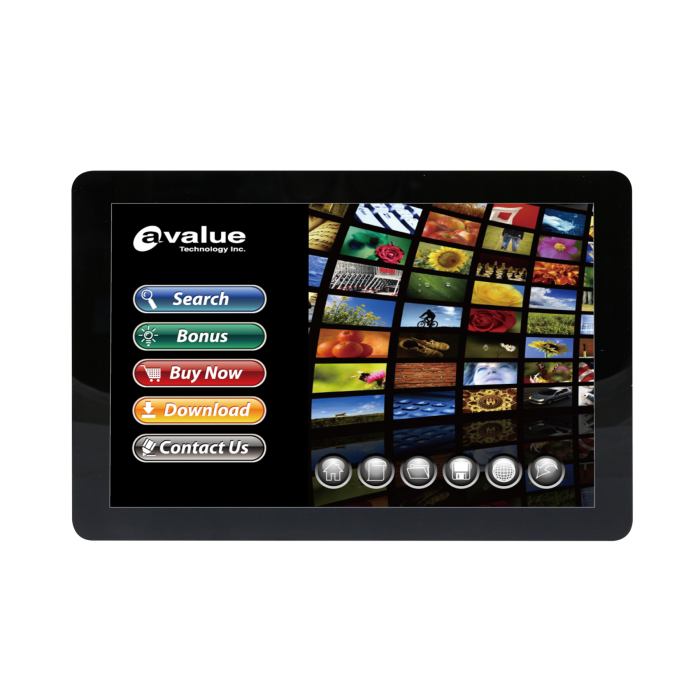

OFT-10WAD 10.1" Open Frame Panel PC
10.1" Open Frame Panel PC with Intel IOTG Alder Lake-N Processor 6W N50
Key Features:
- Intel® IOTG Alder Lake-N Processor 6W N50
- 8GB LPDDR5 on board
- 64GB eMMC
- PCAP
- CE, FCC CLASS A
The OFT-10WAD by Avalue is a 10.1" open frame panel PC designed for industrial applications. It features an Intel® IOTG Alder Lake-N Processor 6W N50, 8GB LPDDR5 memory, and 64GB eMMC storage. The display offers a resolution of 1280 x 800, 350 cd/m² brightness, and a wide 175° viewing angle. It supports multi-touch with up to 10 points and has various I/O options, including HDMI, USB 3.0, and RJ45 LAN. It is compatible with Windows 10 IoT, Windows 11 IoT, and Ubuntu 22.04.
System Information
-
Processor
Intel® IOTG Alder Lake-N Processor 6W N50
-
System Memory
8GB LPDDR5 on board
Storage
-
Storage
64GB eMMC
Software Support
-
OS
Windows 10 IoT, Windows 11 IoT (w/ TPM)
Linux Ubuntu 22.04
Certification
-
Certification Information
CE, FCC Class A
Panel
-
LCD Size
10.1’’
-
Resolution
1280 x 800
-
Luminance
350 cd/m2
-
Viewing angle
175 (H) , 175 (V)
-
Touch Type
PCAP Multi-touch up to 10 Points
External I/O
-
External I/O Connector
1 x 10/100/1000 RJ45 LAN
1 x Audio Jack TRS
1 x DC Jack
1 x HDMI 2.0 Out
1 x H/W power button
2 x USB 3.0 Type A
Internal I/O
-
Internal I/O Connector
1 x A-MIC
2 x GPIO
1 x I2C
1 x M.2 2230 E-Key
1 x Micro SD Slot
1 x MIPI DSI
1 x RS-232/RS-485
1 x RTC Battery
1 x Speaker
2 x Touch Button
1 x USB 2.0
2 x USB 2.0 + DMIC
Wireless Communication
-
WLAN
M.2 2230 E key socket
DC In / Out Characteristics
-
Power Type
AT
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
40°C @ 95% Relative Humidity,
Non-condensing -
Dimension
252 x 165.8 x 30.6 mm
