Brand: Avalue Technology Inc.

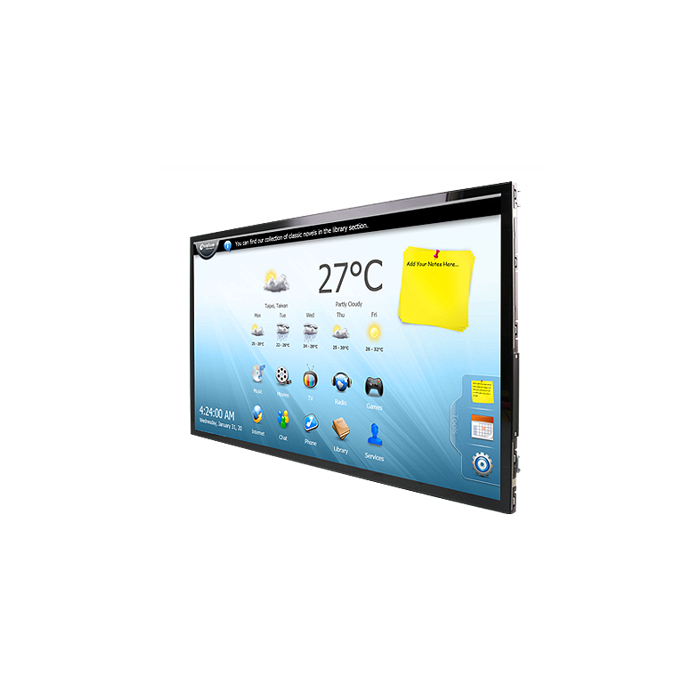

OFT-21W03 21.5" Atom Z8350 Open Frame Panel PC
In stock
SKU:
OFT-21W03-xxGB
21.5" Open Frame Tablet
Enquire Now
Enquire Now
21.5" Open Frame Tablet
· Intel® Atom™ Processor Z3735F
· 2GB RAM
· 8GB or 32GB eMMC
· PCAP Touch
· 10/100 Ethernet (PXE Boot)
· Touch board interface (Power/ Brightness/ Volume/ LED)
· 16Bit programmable GPIO
· RS232(TX/RX) or RS485
· DC 12~24V Input
| System | |
| Processor | Intel® Atom™ Processor Z8350 1.44GHz Quad Core CPU |
| System Memory | 2 or 4GB DDR3L RAM |
| Storage | |
| Storage | 8GB or 32GB eMMC |
| Panel | |
| LCD Size | 21.5" |
| Resolution | 1920x1080 |
| Luminance | 250 |
| Viewing angle | 178°(H/V) |
| Touch Type | PCAP |
| I/O | |
| External I/O Connector | 1 x USB 2.0, 1 x USB3.0 1 x micro USB Client 1 x 10/100 Ethernet 1 x HDMI 1 x Head phone jack 1 x Micro SD slot 1 x DC jack |
| Internal I/O Connector | 1 x 16 bit GPIO interface 1 x USB interface 1 x eDP & Dual channel 24bit LVDS 1 x backlight control & power 2 x speaker interface (1.2W stereo) 1 x A-MIC interface 1 x Touch Button connector 1 x DC input 4pin header 1 x I2C interface(optional) 4 x RS232, 1 x RS485 |
| Display | |
| Multiple Display | Windows/ Linux support extended mode; Android support clone mode only |
| Mechanical & Environmental | |
| Power Requirement | DC 12~24V Input |
| Power Type | DC Jack, DC input 4pin header |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 60°C |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Weight | 3.6 kg |
| Dimension (L x W x H) | 500 x 292 x 47 mm |
| Certifications | |
| Certification Information | CE, FCC Class A |
| Software Support | |
| OS Information | Windows 10 LTSC/ / Ubuntu 19.04(64 bit) |
| Wireless Communication | |
| WLAN | 802.11 b/g/n/ac |
| Bluetooth | 5.0 |
