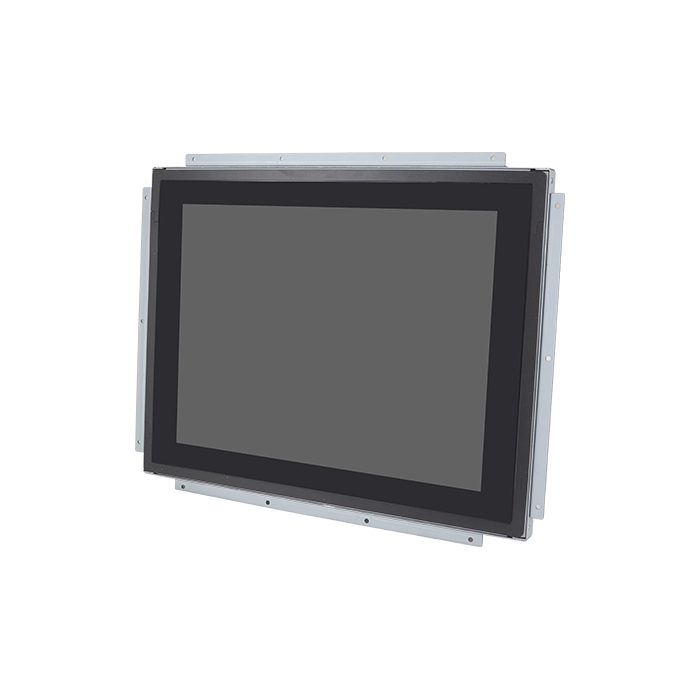

OPC-5158(P) 15” Intel Celeron N2930 Open Frame Panel PC
Aplex OPC-5158(P) 15” Celeron N2930 Open Frame Panel PC IP65 Touchscreen
Key Features:
- Intel Celeron N2930 Processor
- Adjustable Front Bezel Design(2mm, 3mm and 6mm Front Bezel)
- 5-wire Resistive Touch Window/Projected Capacitive Touch Screen Support 7H Optional
- Front Bezel IP65
- Wide-ranging 9~36V DC Power Input
- System Power LED Light
- Low Power Consumption Design
- Easily Achieve Flat Front Bezel Design
- Slim & Fanless Design
OPC-5158-01
15" XGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen, 9~36VDC input with adapter, steel enclosure
OPC-5158P-01
15" XGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Projected capacitive touch, 9~36VDC input with adapter, steel enclosure
The system is equipped with an Intel Celeron N2930 Processor and offers an adjustable front bezel design with options for 2mm, 3mm, and 6mm front bezel sizes. It supports both 5-wire Resistive Touch Window and Projected Capacitive Touch Screen, with the option to include 7H protection. The front bezel is rated IP65, ensuring protection against dust and water.
The device operates on a wide-ranging DC power input from 9 to 36V, providing versatility in power sources. A system power LED light is included for easy monitoring. The system is designed with low power consumption in mind, ensuring efficient operation. Achieving a flat front bezel design is made simple, and the system features a slim and fanless design, enhancing its overall functionality and aesthetics.
Key Features:
- Intel Celeron N2930 Processor
- Adjustable Front Bezel Design(2mm, 3mm and 6mm Front Bezel)
- 5-wire Resistive Touch Window/Projected Capacitive Touch Screen Support 7H Optional
- Front Bezel IP65
- Wide-ranging 9~36V DC Power Input
- System Power LED Light
- Low Power Consumption Design
- Easily Achieve Flat Front Bezel Design
- Slim & Fanless Design
|
System |
|
|
Processor |
Onboard Intel Celeron N2930 1.83GHz Processor |
|
System Chipset |
SoC |
|
System Memory |
Onboard 4GB DDR3L 1600MHz |
|
External I/O |
|
|
USB |
2 x USB 3.0 type A |
|
Serial/Parallel |
1 x RS-232/422/485 DB-9, Default RS-232, COM1 |
|
1 x RS-232 DB-9, COM2 |
|
|
Audio |
1 x Audio line out |
|
LAN |
2 x GbE LAN RJ-45 |
|
Power |
1 x 3-pin DC Power input terminal |
|
1 x 2-pin Connector for power on/off button |
|
|
Others |
1 x System power LED light |
|
Option |
2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 |
|
2 x CAN bus via TB-528CAN2 |
|
|
2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + |
|
|
1 x Power Button via TB-528C1U2P1 |
|
|
2 x USB 2.0 type A via TB-528U2 |
|
|
Expansion |
|
|
Expansion slot |
1 x Intel Mini-PCIe slot full size |
|
Storage Space |
|
|
Storage |
1 x 2.5” SATA HDD bay for SATA HDD |
|
LCD |
|
|
Display Type |
15” TFT-LCD |
|
Max. Resolution |
1024 x 768 |
|
Max. Color |
16.7M |
|
Luminance (cd/m2) |
450 |
|
View Angle |
160(H) / 160(V) |
|
Contrast |
800:1 |
|
Backlight Lifetime |
60,000 Hrs |
|
Touch screen – Resistive Touch Window |
|
|
Interface |
USB |
|
Light transmission (%) |
Over 80% |
|
Touch screen – Projected Capacitive Type |
|
|
Interface |
USB |
|
Light transmission (%) |
Over 90% |
|
Power |
|
|
Power input |
9~36V DC |
|
Power Consumption |
MAX: 19.3W (OPC-5158) |
|
MAX: 20.1W (OPC-5158P) |
|
|
Mechanical |
|
|
Front Bezel |
Flat Bezel Design(2mm, 3mm, 6mm)/Steel/Stainless Steel |
|
/Aluminum With System Power LED Light |
|
|
Rear Bezel |
Steel |
|
IP Rating |
IP65 compliant front panel |
|
Dimension |
385 x 299.5 x 54.8 mm |
|
Net Weight |
4.9 Kg |
|
Environmental |
|
|
Operating temperature(°C) |
0~40°C without fan / 0~60°C with fan |
|
Storage temperature(°C) |
-20~60°C |
|
Storage humidity |
10 to 90% @ 40°C, non- condensing |
|
Certification |
CE/FCC class A |
|
Operating System Support |
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016LTSB |
|
OPC-5158-01 |
15" SVGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen, 9~36VDC input with adapter, steel enclosure |
|
OPC-5158P-01 |
15" SVGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Projected capacitive touch, 9~36VDC input with adapter, steel enclosure |
