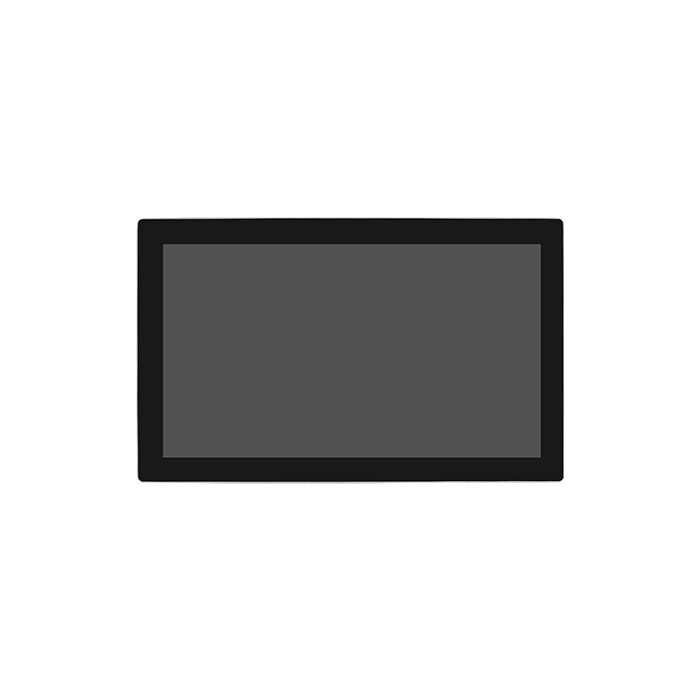

PhanTAM-121AP(H) 21.5" IP66 / IP69K Flat & Slim Design Stainless Steel Display
Aplex PhanTAM-121AP(H) 21.5" IP66 / IP69K Flat & Slim Design Stainless Steel Display
Key Features:
- 21.5" Fanless Stainless Steel Display
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- M12 Connectors with Waterproof Cover
- DC 24V Power Input
PhanTAM-121AP
21.5" FHD IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter
PhanTAM-121APH
21.5" FHD IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD
The Industrial Panel PC, Industrial Display Monitor, and Box PC, named PhanTAM-121AP(H), is a versatile and robust solution designed for industrial applications. It comes with a 21.5" TFT-LCD display with a resolution of 1920 x 1080. The display can achieve high brightness, up to 250 cd/m2, with a wide viewing angle for better visibility. The touch screen is a Projected Capacitive Touch interface with a light transmission rate of 90%.
The system operates on a DC 24V power input, with a low power consumption of 12.1W (MAX) for PhanTAM-116AP. It features an operating temperature range of 0° - 50° with an optional extension to -20° - 60°. for the WT1 version. The display monitor is housed in a sturdy and corrosion-resistant 304 stainless steel chassis, with an optional 316 stainless steel chassis. The chassis has a total IP66/IP69K rating, providing excellent protection against dust and water.
The mechanical design of the PhanTAM-121AP(H) includes a slim and ultra-flat front frame, making it suitable for various mounting options such as VESA Mount 100 x 100 and Swing ARM (optional). The system comes with M12 connectors and waterproof covers for VGA, HDMI, USB, and DC power input, ensuring a secure and reliable connection even in harsh environments.
Key Features:
- 21.5" Fanless Stainless Steel Display
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- M12 Connectors with Waterproof Cover
- DC 24V Power Input
|
IO Port |
||
|
VGA |
1 x M12 12-pin for VGA with waterproof cover |
|
|
HDMI |
1 x M12 17-pin for HDMI with waterproof cover |
|
|
USB |
1 x M12 8-pin for USB Touch with waterproof cover |
|
|
OSD Control |
||
|
Membrane |
OSD on the rear side |
|
|
Power Connector |
1 x M12 3-pin for DC power with waterproof cover |
|
|
Display |
Standard |
High Brightness Optional |
|
Display Type |
21.5" TFT-LCD |
21.5" TFT-LCD |
|
Max. Resolution |
1920 x 1080 |
1920 x 1080 |
|
Max. Color |
16.7M |
16.7M |
|
Luminance (cd/m2) |
250 |
1000 |
|
View Angle |
178(H) /178(V) |
178(H) /178(V) |
|
Contrast |
1000:1 |
1000:1 |
|
Backlight Lifetime |
50,000 hrs |
50,000 hrs |
|
Touch Screen |
||
|
Type |
Projected Capacitive Touch |
|
|
Interface |
USB |
|
|
Light Transmission(%) |
90% |
|
|
Power |
||
|
Power Input |
DC 24V |
|
|
Power Consumption |
PhanTAM-121AP: 14.7W (MAX) |
|
|
Mechanical |
||
|
Construction |
304 Stainless steel chassis (default), 316 Stainless steel chassis (optional) |
|
|
Mounting |
VESA Mount 100 x 100, Swing ARM (optional) |
|
|
IP Rating |
Total IP66/IP69K |
|
|
Dimensions |
540.4 x 332.4 x 61.5 mm |
|
|
Net Weight |
7.6 kg |
|
|
Environmental |
||
|
Operating Temperature |
0~50°C (WT1: -20~60°C for optional) |
|
|
Storage Temperature |
-30~70°C |
|
|
Humidity |
10 to 90% @ 40°C, non- condensing |
|
|
Certificate |
CE/FCC Class A |
|
|
PhanTAM-121AP |
21.5" FHD IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter |
|
|
PhanTAM-121APH |
21.5" FHD IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD |
|
