Brand: Axiomtek

SCM186 RISC Embedded SMARC v2.0 SoM i.MX8M Plus Quad 1.6GHz

In stock
SKU:
SCM186

RISC Embedded SMARC v2.0 SoM with i.MX8M Plus Quad 1.6GHz SoC, 4GB RAM


Enquire Now
Enquire Now

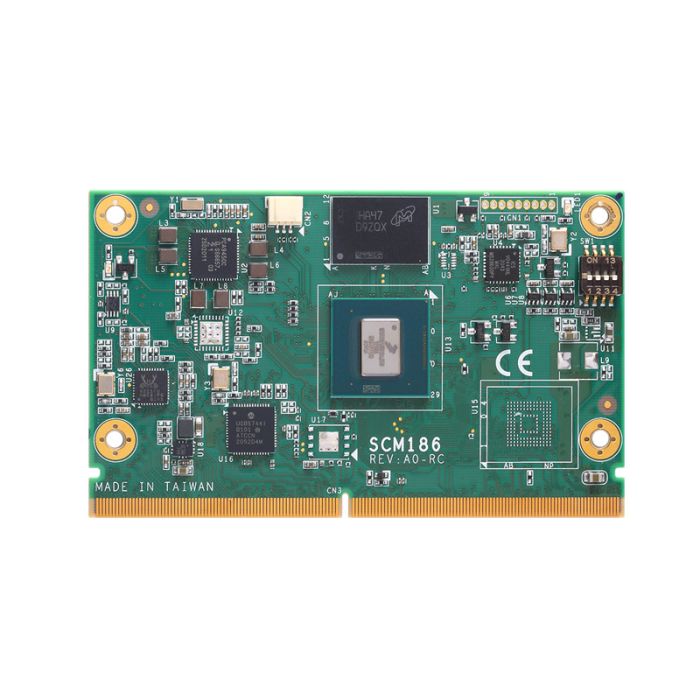

main product photo
We build to order

Key Features:

  • SMARC 2.0 (82 x 50 mm)
  • NXP i.MX 8M Plus Quad A53 Core processor
  • AI accelerator, up to 2.3 TOPS
  • LPDDR4 4GB onboard
  • Supports onboard eMMC
  • HDMI 2.0 up to 4K
  • Dual-channel LVDS
  • 10/100/1000 Mbps Ethernet
  • USB 3.0
  • MIPI-CSI
  • Audio

This product is listed in Industrial Automation, Axiomtek, Embedded Motherboards
Specifications
CPU
  • NXP i.MX 8M Plus 1.6GHz SoC with Quad A53
Chipset
  • SoC integrated
System Memory
  • Onboard LPDDR4 4GB
OS
  • Linux Kernel
COM
  • 2 x UART with TX/RX
  • 1 x UART RX/TX (for Debug Console)
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet
Display
  • Dual Channel LVDS
  • 1 x HDMI 2.0
CAN
  • N/A
I2C
  • 3 x I2C interface
SPI
  • N/A
GPIO
  • N/A
OTG
  • 1 x USB 2.0 OTG
Camera Input
  • 1 x CSI 4-lane
  • 1 x CSI 2-lane
Audio
  • 1 x I2S
Storage
  • 1 x SDIO 3.0 interface
  • 1 x eMMC; soldered on module
Expansion
  • 1 x PCIe Gen2 x1
Others
  • 1 x TPM 2.0 (Option, none in default)
Battery
  • Battery on the Baseboard is required
Power Requirement
  • +3V to +5.25V
Operating Temperature
  • 0°C to +70°C (-32°F to +158°F)
Relative Humidity
  • 10% to 95%, non-condensing
Dimensions
  • 82 x 50 mm
Board Thickness
  • 1.2 mm ± 0.1 mm
Certifications
  • CE
