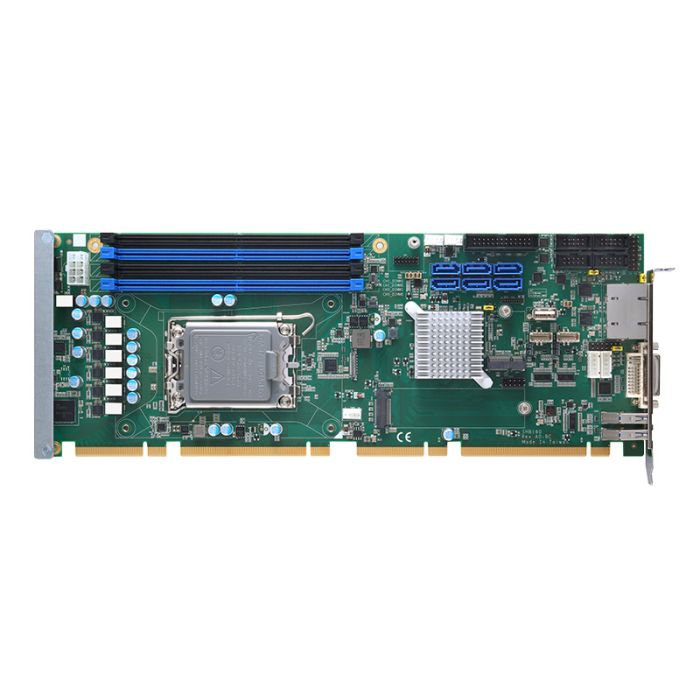

SHB160 PICMG 1.3 Full-Size CPU Card 13th/12th Gen

In stock

SKU:

SHB160DGG-xxxx

Key Features:

LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor (up to 125W)
Intel R680E/H610E chipset
DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
Supports Intel AMT and vPro (R680E)
TPM 2.0 supported (optional)
Supports dual 2.5GbE
Supports LPT port
Supports M.2 Key M/ Key E (H610E only supports Key E)
Supports PCIe 4.0 through the gold fingers

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

CPU	LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset	Intel® R680E/ Q670E
System Memory	4 x DDR5-4400MHz* ECC or non-ECC U-DIMM, up to 128GB (R680E) 2 x DDR5-4400MHz non-ECC U-DIMM, up to 64 GB (H610E)
BIOS	AMI
COM	2 x RS-232 2 x RS-232/422/485, mode selection by SW
USB	2 x USB 3.2 Gen2x1 (Rear I/O) 4 x USB 3.2 Gen2x1 (Internal box header) (H610E only with 2 x USB 3.2 Gen2x1) 3 x USB 2.0 (2 Internal pin headers, 1 port with 180D type A) (H610E without 180D type A) 4 x USB 2.0 (4 ports on SHB connector-C via golden fingers)
Ethernet	1 x 10/100/1000/2500 Mbps (Intel® I225-LM; Intel® AMT with Intel vPro®) 1 x 10/100/1000/2500 Mbps (Intel® I225-V)
Display	1 x DVI-I 1 x DisplayPort (internal header)
Digital I/O	N/A
Audio	HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage	M.2 Key M 2280, PCIe 4.0 x4 signal (R680E only) 6 x SATA-600, support RAID 0/1/5/10 (R680E) 4 x SATA-600 (H610E)
Expansion	1 x PCIe x16 Gen4 1 x PCIe x4 Gen4 or 4 x PCIe x1 Gen4 4 x 32-bit PCI bus masters 1 x M.2 Key E 2230
Others	1 x PS/2 keyboard internal connector 1 x PS/2 mouse internal connector 1 x LPT 1 x Smart CPU fan 2 x Smart system fan TPM 2.0 module (optional)
Battery	Lithium 3V/220 mAH
Power Requirements	Intel® Core™ i5-12400 with 32GB 4 x DDR5-4400, +12V_CPU @5.2A , +5V @4.64A, +3.3V @1.76A
Watchdog Timer	225 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	338 x 126 mm
Board Thickness	1.6 mm
Certifications	CE
