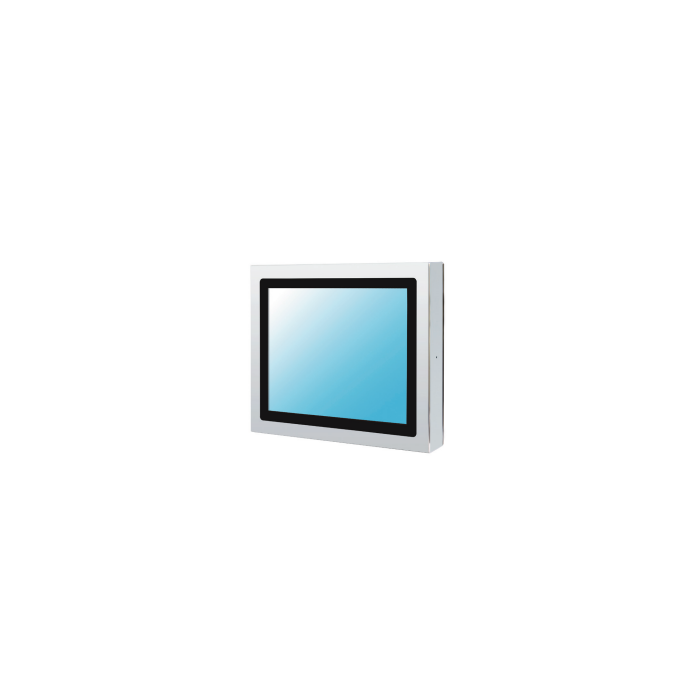

TPM-3617, 17" Stainless steel monitor
In stock
SKU:
TPM-3617, 17" Stainless steel monitor
IP66/69K Protected 17" Stainless Steel Industrial Monitor with P-CAP/5-Wire Resistive
Enquire Now
Enquire Now
IP66/69K Protected Stainless Steel 316 Flat Panel Design
VGA and USB (M12 Connetor), HDMI port
VESA and Yoke mounting
17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)
12 ~ 24 V DC power input (M12 Connector)
| Model | TPM-3617P-B6A1 | TPM-3617R-B6A1 |
|
| Display | Panel Size | 17” | |
| Aspect Ratio | 4:3 |
||
| Resolution | 1280 x 1024 (SXGA) |
||
| Viewing Angle |
85 x 85 (H) x 80 x 80 (V) |
||
| Brightness |
350 (cd/m2) | ||
| Contrast Ratio |
1000:1 |
||
| Life Time |
50,000 hrs |
||
| Touchscreen | Type |
Projected Capacitive Touch | 5-Wire Resistive |
| Surface Hardness |
7 Mohs |
3 Mohs |
|
| Transparency |
N/A | 80% (±3%) |
|
| On/Off Button |
Yes |
N/A |
|
| I/O Interface | Video Interface |
1 VGA (M12 Connector), 1 HDMI (IP67 Waterproof Connector) |
|
| Touch Interface | 1 USB (M12 Connector) |
||
| Audio |
N/A |
||
| Speaker |
N/A |
2, 2W Amplifier |
|
| Others |
N/A |
||
| OSD Control | Function Key |
1 RS-232, M12 Connector Remote OSD control (Option) 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off |
6 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off, Funtion Key |
| Power | Power Input | 12-24 V DC power input |
|
| Power Connector | M12 connector |
||
| Power Consumption | 22 W |
||
| Mounting |
VESA Mount |
75mmx 75mm; 100mm x 100mm |
|
| Panel Mount |
N/A |
||
| Others |
Yoke mount |
||
| Environment | Operating Temperature | 0~60° C (32~140° F) |
|
| Storage Temperature | -20~60° C (-4~140° F) |
||
| Humidity | 5~95% @ 40° C, non-condensing |
||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
||
| Shock |
Full System IP66 Protection , Stainless Steel 316 (IP69K Protection by Option) |
||
| General | Certification | TBD |
|
| Material, Surface Finish |
Stainless Steel 316, Brush Finished |
||
| True Flat |
Yes |
||
| Ingress Proctetion | Full System IP66 Protection |
||
| Dimensions (W x H x D) |
439 X 373 X 66.9 (17.28” x 14.69” x 2.63”) |
||
| Net Weight |
7.71 kg (17.0 lb) |
||
| Operating System |
Windows 7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu | ||
