TPPC2401 23.8” FHD Passenger Information Fanless Panel PC

In stock
SKU:
TPPC2401_LPC

23.8” Full-HD Passenger Information Panel PC powered by Intel Atom® x5-E3930 Processor

Key Features:

  • 23.8” TFT-LCD FHD 16:9 fanless panel computer
  • Powered by Intel Atom® x5-E3930 processor, 1.3GHz
  • Wide-range DC input of 9V to 36V DC
  • Support ignition control for power on/off delay timing management
  • Compliant with IP54 on the front panel
  • Tempered glass, surface hardness 6H
  • 1 x DDR3L up to 8GB, M.2 (2242) B-Key SSD for storage device
  • 1 x mini-PCIe expansion available for wireless communication
  • CE/FCC/E/e-Mark

Enquire Now
Enquire Now

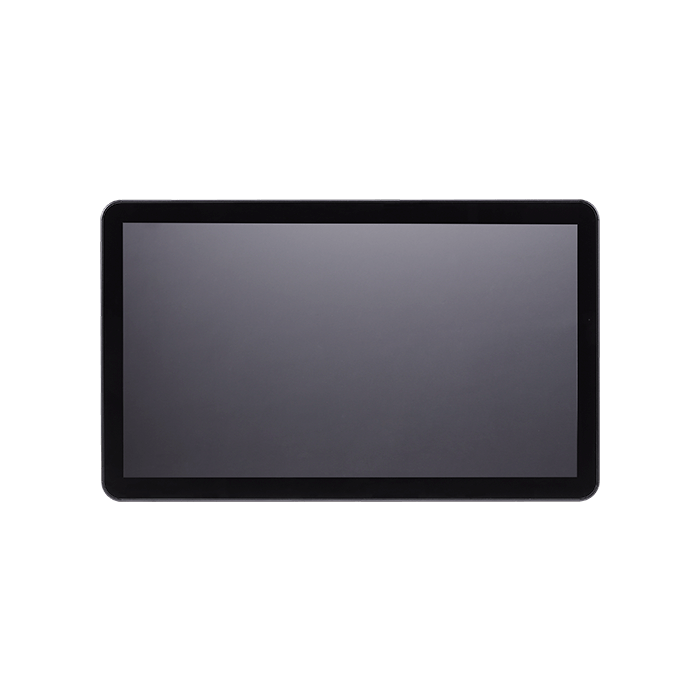

main product photo
We build to order

The 23.8” fanless panel pc, TPPC 2401 is a 23.8” 16:9 TFT-LCD with resolutions tThe TPPC 2401 is an all-in-one panel PC solution that features a high-quality industrial motherboard and a Full-HD resolution of 1920 x 1080. With a wide-range power input (9V-36V DC), this device is suitable for use in a variety of applications and environments, including retail outlets, supermarkets, train stations, airports, and buses. It is compliant with in-vehicle industrial standards such as E/e-Mark, making it a great choice for transportation settings.




This product is listed in Industrial Panel Computers
Specifications

LCD Panel

  • LCD size: Innolux 23.8,16:9

  • Resolution: Full-HD, 1920 x 1080

  • Luminance: 350 nits cd/m2

  • Contrast ratio: 1,000

  • LCD color: 16.7M

  • View angle: 178 (H), 178 (V)

  • Backlight: LED

System

  • Intel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz)

System Front

  • 1 x Ambient light sensor

Main Memory

  • 1 x 204-pin DDR3L SO-DIMM socket, up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory

Rear I/O

  • 1 x Power input connector, 6-pin (9V-36V DC & Ignition control)

  • 1 x DB9 COM port for RS232/422/485

  • 2 x RJ45 Intel® I210-AT gigabit LAN ports

  • 4 x USB 3.0, support USB 2.0

  • 1 x HDMI 1.4b (support 4K x 2K @30Hz)

  • 1 x Line-in, Line-out with 16Ω Amplifier

Audio

  • Realtek ALC888 audio codec

Storage Device

  • 1 x M.2 (2242) B key SSD, up to 256G max.

  • 1 x 2.5” SATA SSD reserved

Expansion

  • 1 x mini-PCIe full-size connector on board (support PCIe/USB)

Power Management

  • 9V to 36V DC input (UPS: 12V, 24V and 36V)

  • Ignition on/off control & programmable on/off delay timing

Environment

  • Vibration
    - IEC60068-2-64
    - Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage)

  • Drop
    - IEC60068-2-32
    - ISTA-2A STD
    - 10.4kg (packing weight) & 81cm (falling height)

  • Temperature
    - Operating temperature: 0~50°C
    - Storage temperatures: 0~70°C
    - Damp heat test per EN60068-2-30, 45~55°C, 95%, 48Hrs, non-condensing

Operating System Support

  • Win10 IoT Enterprise 64-bit

  • Linux Yocto 4.14

Mechanical Information

  • Color: black

  • VESA mount (100mm x 100mm; 200mm x 200mm)

  • Dimension: 580.31mm (W) x 354.6mm (D) x 55.5mm (H)

  • System weight (N.W): 10kg, 22lb

  • Package weight (G.W): 12kg, 26.45lb

Certification

  • CE (EN55024, EN55032, EN55035)

  • FCC Class A (Part 15B)

  • E-mark: E-13, 12/24V
    Complied with ITxPT power consumption requirement
Downloads
pdf
Datasheet
