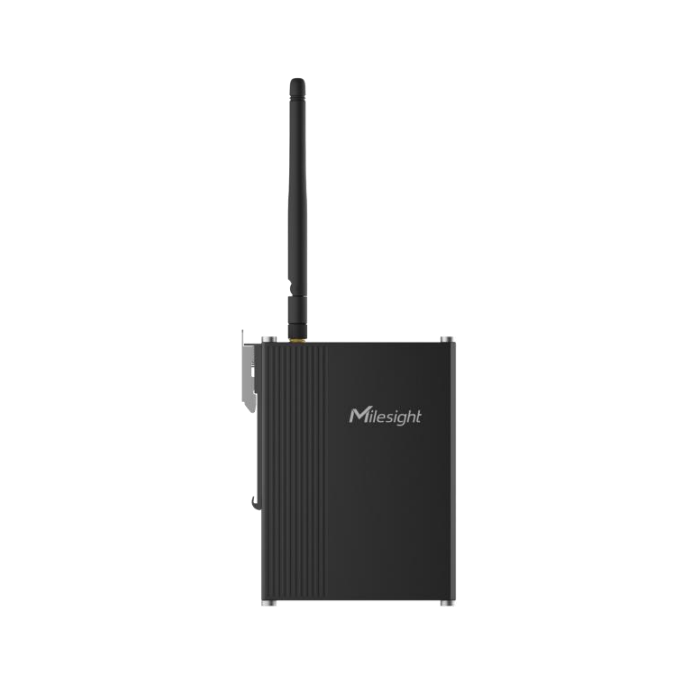

UC300 Series LoRaWAN LTE/3G IoT Controller
IoT LoRaWAN 3G/LTE Controller DIO/AI/RS232/RS485/PT100RTD
The UC300 series is an IoT controller that can be used to control and collect data from a variety of devices. It has a variety of I/O interfaces, including analogue input, digital input, relay output, serial port, and PT100RTD input, all of which support data transmission from remote devices over LoRaWAN or 4G/3G networks. Furthermore, the UC300 series supports a variety of trigger conditions and actions that can operate independently even if the network is down. It can easily monitor and control remote devices via web server or mobile app when combined with Milesight IoT Cloud solution. The UC300 is widely used in indoor applications such as smart factories, building automation, and so on, thanks to its industrial design and IP30 metal case.
Key Features:
- Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces
- Support LoRaWAN or 3/4G wireless communication
- Multiple triggering conditions and actions
- Embedded watchdog for device working stability
- Industrial metal case design with a wide operating temperature range
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
| Wireless Transmission | |
| Technology | LoRaWAN®or 2G/3G/4G (Hardware Optional) |
| LoRaWAN® | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| OTAA/ABP Class C | |
| Cellular | 1 (Micro-SIM-3FF) |
| TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode | |
| Data Interfaces | |
| Interface Type | 3.5 mm Terminal Block |
| GPIO | 4 × DI + 2 × DO |
| Serial Port | 1 × RS232 + 1 × RS485 |
| Analog Input | 2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input |
| Others | |
| Configuration Port | 1 × Type-C |
| LED Indicators | 1 × System, 1 × ACT |
| Built-in | Watchdog, Timer |
| Physical Characteristics | |
| Operating Temperature | -20°C ~ 60°C (-4℉ to +140℉) |
| Dimensions | 93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in) |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting |
