Brand: Milesight IOT

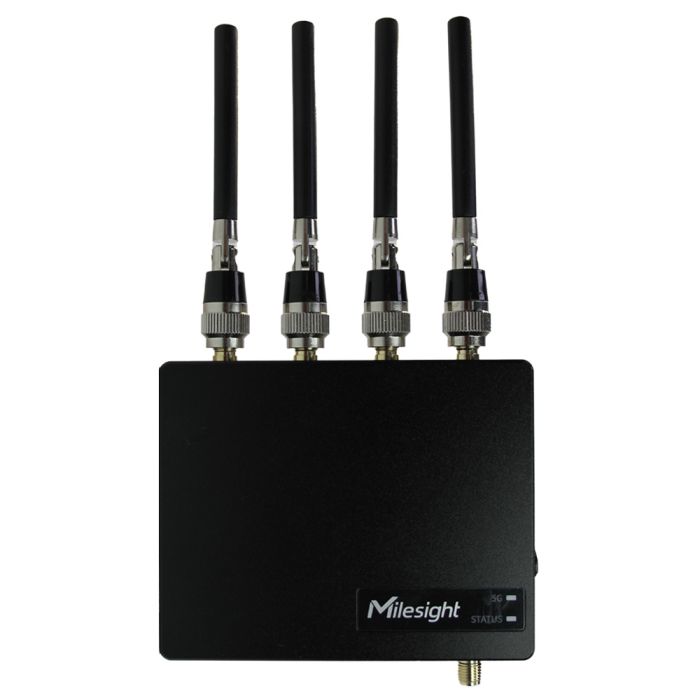

UF31 High Performance 5G Modem
In stock
SKU:
UF31-554AE
For partner & project pricing, please contact us.
High-performance 5G modem for 5G wireless networking applications
Key Features:
- Global 5G NSA&SA/4G LTE/WCDMA
- Plug and play, GbE port or USB 3.0
- Wide operating temperature -20°C to 50°C
- USB-powered or DC power supply
- Easy to deploy anywhere with a compact size
Enquire Now
Enquire Now
The UF31 is a high-performance 5G modem designed for 5G wireless networking. Supporting 5G NSA&SA, 4G LTE, and 3G networks make it ideal as a WAN connection to firewalls and other systems field devices. Interfaces include a USB Type-C port and GbE port and the built-in watchdog will ensure the connection is maintained.
The small size makes the UF31 simple to install or embed making it ideal for smart offices, video surveillance, digital signage, industrial automation, traffic applications, robots, and other similar applications.
Key Features:
- Global 5G NSA&SA/4G LTE/WCDMA
- Plug and play, GbE port or USB 3.0
- Wide operating temperature -20°C to 50°C
- USB-powered or DC power supply
- Easy to deploy anywhere with a compact size
| Hardware System | |
| CPU | Quad-core ARM Cortex-A55，2 GHz |
| Memory | 1 GB LPDDR4X RAM and 1 GB NAND Flash |
| Cellular Interface | |
| Network | 5G NR SA&NSA/4G LTE/WCDMA |
| Frequency | 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43/B46 WCDMA: B1/B5/B8 |
| Antenna Connector | 4 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM Slot | 1（Micro-SIM-3FF） |
| Ethernet Interface | |
| Numbers | 1 × 10/100/1000 Mbps LAN Port |
| Mode | Full or Half-Duplex (Auto-Sensing) |
| GNSS | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/Beidou/Galileo/QZSS |
| Others | |
| USB | 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug |
| Reset Button | 1 × RESET (Internal) |
| LED Indicators | 1 × STATUS，1 × Cellular Network |
| Built-in | Watchdog, Timer |
| Software | |
| Network Protocols | IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet,IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet,SSH, etc. |
| Security | Access Control, Port Mapping, Custom Rules |
| Management | Web, CLI, DeviceHub |
| Power Supply | |
| Power Input | 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V/3A by USB Type-C Port |
| Power Connector | 2-pin 3.5 mm Terminal Block |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Dimension | 90 x 72 x 15 mm (3.54 x 2.83 x 0.59 in) |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (Non-condensing) at 25°C/77℉ |
