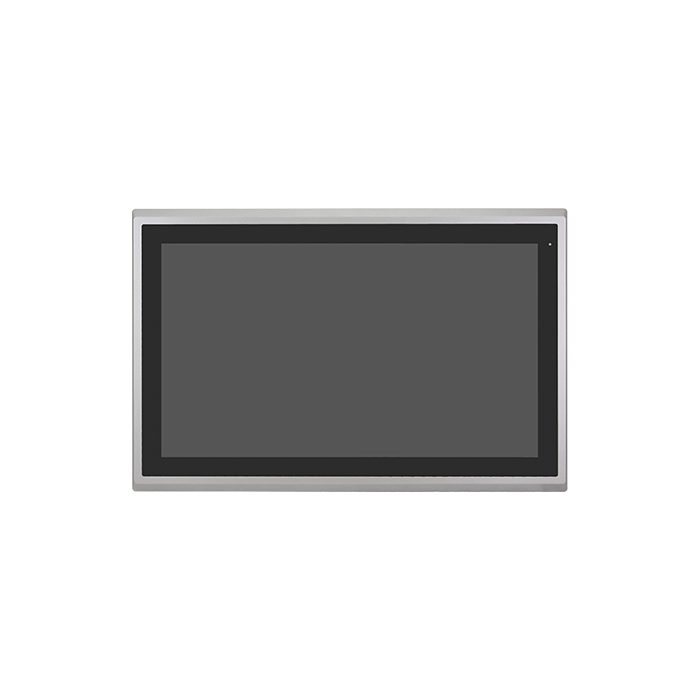

ViPAC-821P/R/G(H) 21.5” Intel Celeron N2930 Fanless Expandable Panel PC
Aplex ViPAC-821P/R/G(H) 21.5” Celeron N2930 Fanless Expandable Panel PC IP66 Touchscreen
Key Features:
- 21.5” TFT LCD Panel PC
- Intel Celeron N2930 Processor
- Modular Concept and Fanless Design
- Support PCT/RTW/AR Glass
- Front Bezel IP66
- Option WiFi/BT/Speaker
- Support 2 x Expansion slot
- DC 9~36V Power input, option AC power input
ViPAC-821R
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
ViPAC-821P
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
The HMI Controller Industrial Display Monitor, ViPAC-821P/R/G(H), is a versatile 21.5" Intel Celeron N2930 Fanless Expandable Panel PC designed for industrial applications. It features an onboard Intel Celeron N2930 Processor with a 2M Cache and 1.83GHz clock speed. The system supports up to 8GB of memory with 2 x 204-pin DDR3L SO-DIMM slots. It comes with a 2.5" SATA HDD space for easy-accessible storage and offers a wide-ranging DC power input from 9 to 36V, with the option for AC power input.
The display options include a 21.5" TFT-LCD with a standard resolution of 1920 x 1080 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water.
The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fanless design, ensuring reliable and efficient performance.
Key Features:
- 21.5” TFT LCD Panel PC
- Intel Celeron N2930 Processor
- Modular Concept and Fanless Design
- Support PCT/RTW/AR Glass
- Front Bezel IP66
- Option WiFi/BT/Speaker
- Support 2 x Expansion slot
- DC 9~36V Power input, option AC power input
|
System |
||
|
CPU |
Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz) |
|
|
System Chipset |
SoC |
|
|
Memory |
2 x 204-pin DDR3L SO-DIMM slot up to 8GB |
|
|
IO Port |
||
|
4 x USB 3.0 type A |
||
|
2 x RJ45 GbE LAN |
||
|
1 x DB9 RS-232/422/485 default RS-232 |
||
|
1 x DB9 RS-232 |
||
|
1 x DB9 RS-422/485 default RS-485 |
||
|
1 x DB15 VGA |
||
|
Rear side I/O port |
1 x HDMI with Cover |
|
|
1 x Line-out/Mic-in |
||
|
1 x 2 pin Terminal block for external power switch |
||
|
2 x LED indication for HDD/System |
||
|
1 x System LED indication at front |
||
|
1 x 3 pin TB Power connector |
||
|
1 x Power Switch on/off |
||
|
2 x 2W speaker at rear side |
||
|
Option I/O |
4 x USB 2.0 Type A via TB-5462 x DB9 COM port |
|
|
1 x 8-bit GPIO (3 in/out/VCC/GND) |
||
|
Storage Space |
||
|
HDD |
1 x 2.5" SATA HDD Space (Easy Accessible Storage Design) |
|
|
Expansion |
||
|
1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default) |
||
|
Expansion Slot |
||
|
1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default) |
||
|
1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side) |
||
|
1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default) |
||
|
Display |
Standard |
High Brightness Optional |
|
Display Type |
21.5” TFT-LCD |
21.5” TFT-LCD |
|
Max. Resolution |
1920 x 1080 |
1920 x 1080 |
|
Max. Color |
16.7M |
16.7M |
|
Luminance (cd/m2) |
250 |
1000 |
|
View Angle |
178(H) / 178(V) |
178(H) / 178(V) |
|
Contrast |
3000:1 |
3000:1 |
|
Backlight Lifetime |
30,000 hrs |
50,000 hrs |
|
Option |
Auto Dimming |
Auto Dimming |
|
Touch Screen |
Resistive Touch |
Projected Capacitive Touch |
|
Interface |
USB |
USB |
|
Light Transmission(%) |
Over 80% |
Over 90% |
|
Power |
||
|
Power Input |
DC 9~36V Power input, option AC power input |
|
|
Mechanical |
||
|
Construction |
Aluminum die-casting front bezel and steel chassis,Stainless front bezel (option) |
|
|
Mounting |
Panel Mount |
|
|
IP Rating |
Front Panel IP66 |
|
|
Dimensions |
557.3 x 362.3 x 99.8 mm |
|
|
Net Weight |
8.3 kg |
|
|
Environmental |
||
|
Operating Temperature |
0~50°C |
|
|
Storage Temperature |
-30~70°C |
|
|
Humidity |
10 to 95% @ 40°C, non- condensing |
|
|
Certificate |
CE / FCC Class A |
|
|
Operating System Support |
Windows embedded 7 Windows embedded 8.1 Windows 10 IoT Enterprise |
|
|
ViPAC-821R |
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel. |
|
|
ViPAC-821P |
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel. |
|
