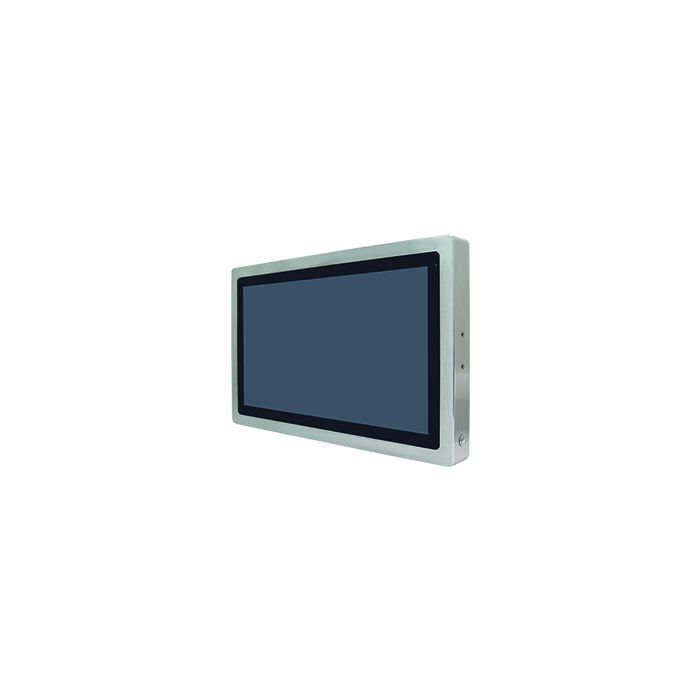

ViTAM-917A 17" IP66/IP69K Stainless Steel Panel PC
17" New Gen. IP66/IP69K Stainless Steel Panel PC
17" New Gen. IP66/IP69K Stainless Steel Panel PC
· 17" TFT-LCD Projected Capacitive Touch
· 6th Gen Intel Core i3-6100U / Core i5-6300U(Option)
· True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
· IP66/IP69K Rated with M12 Connectors.
· Touch on/off Button on the Side Edge for Hygienic Cleaning.
System
CPUIntel 6th Core i3-6100U / Core i5-6300U(Option)
System ChipsetSoC
System Memory1 x SO-DIMM DDR4 slot, up to 16GB
Power ConsumptionTBD
USB1 x M12 8-pin for USB 2.0 with waterproof cap
Serial / Parallel1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cap
LAN1 x M12 8pin for LAN with waterproof cap
Power1 x M12 3pin DC Power with waterproof cap / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side
Storage Space
HDD/SSD1 x 2.5" HDD/SSD / 1 x mSATA slot onboard
Expansion
Expansion slot1 x Mini PCIe slot for WIFI/BT (optional)
Display
LCD Size17" TFT-LCD
Max. resolution1280 x 1024
Max. color16.7M
Luminance(cd/m²)350
Viewangle(H°/V°)170/170
Contrast1000:1
Backlight lifetime(hrs)50000
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB
Light transmission(%)Over 90%
Power
Power inputDC 9~36V
Mechanical
ConstructionStainless steel enclosure
IP ratingIP66 / IP69K
MountingVESA 75 x 75, Yoke mount
Dimension(mm)432 x 358 x 55.3
Net weight(Kgs)8 Kg
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-30~70°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE / FCC CLASS A
Operating System SupportWindows 7 64 bitWindows 8 64 bitWindows 10 IoT 64 bit
