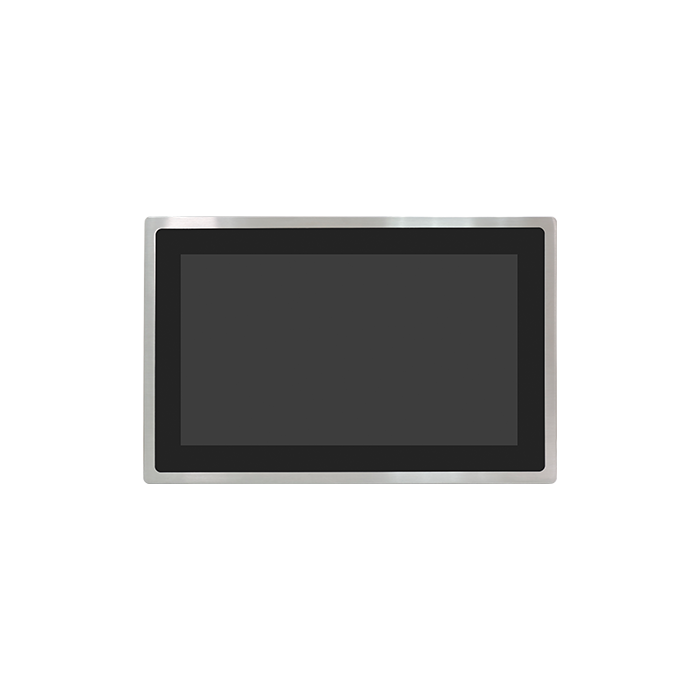

ViTAM-924BPR(H) 23.8” IP66 / IP69K Stainless Steel Panel PC
Aplex ViTAM-924BPR(H) 23.8” Stainless Steel Panel PC IP69K 8th Gen Intel M12 RFID Touchscreen
Key Features:
- 23.8” New Generation Stainless Steel Panel PC
- 8th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option) - IP66/IP69K Rated with M12 Connectors
- Support Resistive Touch, Projected Capacitive Touch
- Touch on/off Button on the Side Edge for Hygienic Cleaning
- Support Ergonomic Versatile Mounting: Yoke Mounting /
- Space-saving VESA 75 x 75 mm Mounting
ViTAM-924BP
23.8" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
ViTAM-924BPH
23.8" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits
The 23.8" New Generation Stainless Steel Panel PC features a true flat front bezel design and a Grade 304 Stainless Steel Enclosure (Grade 316 available as an option). With an IP66/IP69K rating and M12 connectors, it ensures excellent protection against water and dust. The panel PC supports Projected Capacitive Touch (for BP model). For convenient and hygienic cleaning, it includes a touch on/off button on the side edge.
The display options include a standard 23.8" TFT-LCD with 1920 x 1080 resolution and a high-brightness optional version. The high-brightness display offers a maximum luminance of 1000 cd/m², while the standard display provides 250 cd/m². The panel PC supports an 8th Gen. Intel Core i3/i5 BGA type processor, providing powerful performance for various applications.
The device supports versatile and ergonomic mounting options, including Yoke Mounting and space-saving VESA 75 x 75 mm Mounting. This makes it suitable for a wide range of industrial and commercial applications where durability, hygiene, and performance are essential considerations.
Key Features:
- 23.8” New Generation Stainless Steel Panel PC
- 8th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option) - IP66/IP69K Rated with M12 Connectors
- Support Resistive Touch, Projected Capacitive Touch
- Touch on/off Button on the Side Edge for Hygienic Cleaning
- Support Ergonomic Versatile Mounting: Yoke Mounting /
- Space-saving VESA 75 x 75 mm Mounting
|
System |
|||
|
CPU |
Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
||
|
System Chipset |
SoC |
||
|
Memory |
2 x 260-pin SO-DIMM up to 64GB DDR4 2400MHz |
||
|
TPM |
Firmware TPM (TPM 2.0 compliance) |
||
|
IO Port |
|||
|
USB |
1 x M12 8-pin for USB 2.0 with waterproof cover and chain |
||
|
Serial / Parallel |
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
||
|
LAN |
1 x M12 8-pin for LAN with waterproof cover and chain |
||
|
Others |
1 x Touch on/off button at the side |
||
|
Power Connector |
1 x M12 3-pin for DC power with waterproof cover and chain1 x Power switch on the rear |
||
|
2 x optional blank M12 connector with waterproof cover and chain |
|||
|
for selecting two from the following options: |
|||
|
2 x USB 2.0 |
|||
|
Option |
1 x USB 3.2 Gen.1 |
||
|
1 x LAN |
|||
|
1 x COM |
|||
|
1 x CAN |
|||
|
Storage Space |
|||
|
HDD |
1 x 2.5" SATA3 HDD (for option) |
||
|
M.2 |
1 x B-key 2280 (SATA as default, PCI-e select by BIOS) for SSD |
||
|
Expansion |
|||
|
1 x Full size mSATA/mPCIe (mSATA as default, select by BIOS) |
|||
|
Expansion slot |
1 x NANO-SIM |
||
|
1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
|||
|
RFID module |
RFID module design on the front side (for option) |
||
|
Display |
Standard |
High Brightness Optional |
|
|
Display Type |
23.8" TFT-LCD |
23.8" TFT-LCD |
|
|
Max. Resolution |
1920 x 1080 |
1920 x 1080 |
|
|
Max. Color |
16.7M |
16.7M |
|
|
Luminance (cd/m2) |
250 |
1000 |
|
|
View Angle |
178(H) /178(V) |
178(H) /178(V) |
|
|
Contrast |
3000:1 |
5000:1 |
|
|
Backlight Lifetime |
30,000 hrs |
50,000 hrs |
|
|
Touch Screen |
|||
|
Type |
Projected Capacitive (for BP model) |
||
|
Interface |
USB |
||
|
Light Transmission(%) |
Projected Capacitive : 90% |
||
|
Power |
|||
|
Power Input |
DC 9~36V |
||
|
Power Consumption |
ViTAM-924BP: 43W |
||
|
Mechanical |
|||
|
Construction |
304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) |
||
|
Mounting |
VESA mount 75 x 75, Yoke mount for optional |
||
|
IP Rating |
Total IP66/IP69K |
||
|
Dimensions |
656 x 423 x 53 mm |
||
|
Net Weight |
10 kg |
||
|
Environmental |
|||
|
Operating Temperature |
0~50°C |
||
|
Storage Temperature |
-30~70°C |
||
|
Humidity |
10 to 95% @ 40°C, non-condensing |
||
|
Certificate |
CE/FCC Class A |
||
|
Operating System Support |
Windows 10 IoT ENT LTSB, Windows 11 |
||
|
ViTAM-924BP |
23.8" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter |
||
|
ViTAM-924BPH |
23.8" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits |
||
