Brand: Nexcom

VTC1020 - Intel Atom x5-E3930, 9~36 DCV input

In stock

SKU:

VTC1020

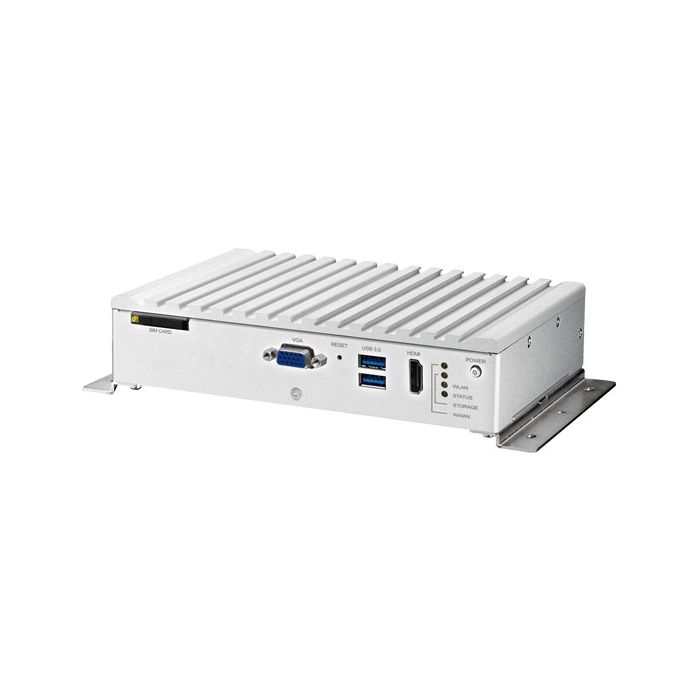

Intel Atom® x5-E3930 processor Fanless In-Vehicle Computer

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Intel Atom® x5-E3930 processor Fanless In-Vehicle Computer

· Compact and fanless design

· Built-in GPS receiver with optional dead reckoning function

· Variety of wireless communication options

· Built-in CAN bus 2.0B. Optional OBD SAE J1939

· Wide range DC input from 9~36V

· Smart power management with Ignition on/off delay via software control and low voltage protection

· Certified by CE/FCC/E13 mark

· 5 x RS232 and 2 x RS485

This product is listed in Mining, Transport, Nexcom, Mobile Computing

Specifications

_CPU	_{Intel® Atom™ x5-E3930 processor dual core 1.8GHz}
_Memory	_{1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 16GB. Default 4GB}
_Expansion	_{1 x mini-PCIe socket (USB) 1 x mini-PCIe socket (PCIe + USB + mSATA)}
_Function	_{1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor Built-in TPM}
_{I/O Interface-Front}	_{1 x power button} _{4 x LED indicators for Status (programmable), Storage, WLAN and WWAN} _{1 x system reset button} _{2 x type A USB 3.0 compliant host, supporting system boot up} _{1 x DB-15 VGA} _{1 x HDMI} _{1 x SIM card socket}
_{I/O Interface-Rear}	_{1 x 9~36VDC input with Ignition and 15W typical} _{power consumption 1 x 12V/2A DC output, SMBus, power button} _{1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet} _{1 x Audio-in,} _{1 x Audio-out} _{1 x DB9 COM port for 4 x RS232 Tx/Rx and 2 x RS485} _{1 x DB15 for multi port - 1 x CAN2.0 (optional SAE J1939) - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~28VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~28VDC} _{3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)}
_{Expandable Storage}	_{1 x 2.5” SSD SATA 3.0 1 x mSATA}
_{Operating System}	_{Windows 10 Linux YOCTO}
_{Power Management}	_{Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/off ignition, software detectable Support S3, S4 suspend mode}
_Dimensions	_{185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8") 1 Kg (2.20 Lb)}
_Construction	_{Aluminum top case with sheet metal}
_Environment	_{-40°C to 70°C (w/ industrial SSD) with air flow} _{Storage temperatures: -40°C to 85°C} _{Relative humidity: 10% to 90% (non-condensing)} _{Vibration: Vibration (random): 2g @5~500 Hz Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g}
_{Standards/Certifications}	_{CE approval FCC Class B E13 mark}
