Brand: Nexcom

VTC1920 Atom x7211RE Telematics IoT Gateway

In stock
SKU:
VTC1920

Intel Atom® x7211RE Telematics IoT Gateway with Slim and Ruggedized Design

Key Features:

  • Super slim and ruggedized design

  • Intel Atom® processor x7211RE (1.0GHz)

  • Built-in 1 x CAN FD, 1 x CAN 2.0B

  • Smart power management with Ignition on/off delay via software control and low voltage protection

  • Built-in U-blox M9N GNSS

  • Dual SIM cards for WWAN modules

  • Wide range DC input from 9 ~ 36V

  • Wide operating temperature -40°C ~ 70°C

  • Certified by CE/ FCC/ E13 mark


Enquire Now
Enquire Now

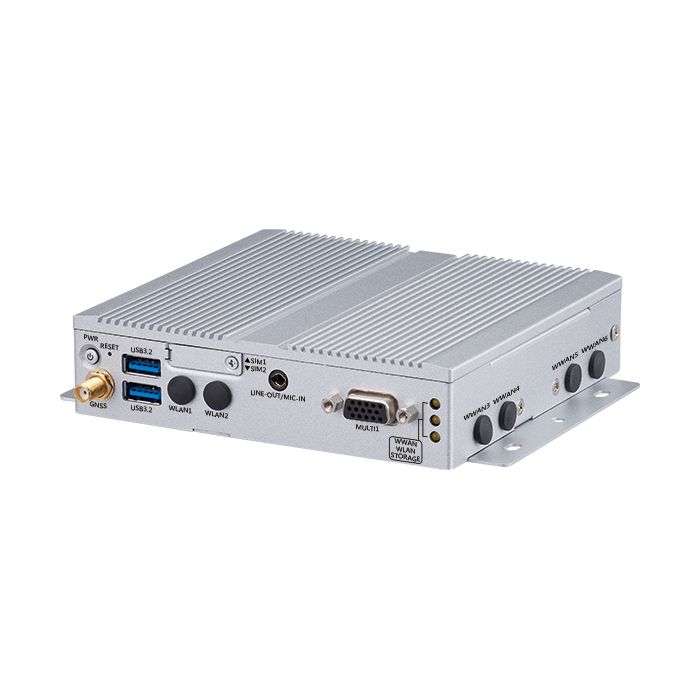

main product photo
We build to order

Introducing the VTC 1920, an entry-level vehicle computer with an Intel Atom® processor x7211RE (1.0GHz) that is specially designed for the harsh in-vehicle environment. Its rugged, fanless, and compact mechanism allows it to comply with the stringent MIL-STD-810H military standard. Its super slim design makes it an ideal choice for vehicles with limited space without compromising on features.

VTC 1920 comes with onboard CAN FB and CAN 2.0B for vehicle diagnostics and driver behaviour management. Its advanced GNSS receiver supports GPS/Glonass/ QZSS/Galileo/Beidou. With WLAN and WWAN wireless connection capability and an external 2 x SIM socket, VTC 1920 provides a better connectivity quality through software. It offers flexibility to meet different demands for telematics applications such as IoT Gateway infotainment, fleet management, and dispatching systems.


This product is listed in Transport, Nexcom
Specifications

CPU

  • Intel Atom® processor dual core x7211RE, 1.0GHz

Memory

  • 1 x 260-pin DDR4 SO-DIMM socket support 3200MHz up to 16GB. Default 4GB

Storage

  • 1 x M.2 Key M 2242 for SATA 3.0

  • 1 x M.2 Key M 2280 for SATA 3.0 (optional on daughter board)

Expansion

  • 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/ 5G NR module with 2 x external Nano-SIM

  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0), (optional on daughter board)

  • 1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 3052 Key B (USB 2.0) for LTE module (optional on daughter board)

Function

  • 1 x u-blox NEO-M9N onboard (support GPS/Glonass/QZSS/Galileo/BeiDou)

  • Built-in G-sensor

  • TPM2.0

I/O Interface-Front

  • 1 x Power button with LED

  • 3 x LED for WWAN, WLAN, Storage, 1 x Reset button

  • 2 x SIM socket (Nano type) with cover

  • 1 x DB15 connector for 1 x CAN FD, 1 x CAN 2.0B, 1 x DR, 1 x analog input (detect 9~36VDC)

  • 1 x Line-out/MIC-In

  • 2 x Type A USB 3.2

  • 3 x antenna hole for GNSS/WLAN

I/O Interface-Rear

  • 1 x Phoenix connector for Power/GND/Ignition input

  • 1 x RJ45 10/100/1000/2500 Mbps Ethernet with LED

  • 1 x HDMI, resolution up to 3840 x 2160 @30Hz

  • 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX), 3 x DI, 3 x DO

Operating System

  • Windows 10, 11 (64-bit)

  • Linux 4.x

Environment

  • Temperature
    - Operating temperatures: -40°C~70°C
    - Storage temperatures: -45°C~85°C
    - Damp heat test per EN60068-2-30

  • Humidity
    - IEC60068-2-78, Damp heat steady state test, 40C, 95%, 48Hrs

  • Vibration
    - IEC 60068-2-64, 2G
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24

  • Shock
    - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Dimensions

  • 130mm (W) x 120mm (D) x 32mm (H) (5.12” x 4.72” x 1.26”)

  • Weight: 0.6 kg (1.3 lbs)

Certifications

  • CE approval

  • FCC Class A

  • E13 mark

Power Management

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/ off delay time by software

  • Status of ignition and low voltage can be detected by software

  • Support S3/ S4 suspend mode
Downloads
pdf
Datasheet
pdf
User Manual*
Lock You have to Login or Register to download this file
Ordering Information

VTC 1920 (P/N: 10V00192000X0)
Intel Atom® processor x7211RE, 1.0GHz with 4GB DDR4 SO- DIMM, U-blox M9N GNSS onboard, HDMI output, 1 x LAN, 2 x RS-232 (Tx/ Rx), 1 x RS-485 (Tx/Rx), 1 x CAN FD, 1 x CAN 2.0B, 3 x DI, 3 x DO, 2 x USB 3.2, 1 x Line-out/Mic-in
