Brand: Nexcom

VTC6231 Atom x7433RE Fanless In-Vehicle Computer

In stock
SKU:
VTC6231

Intel Atom x7433RE Fanless In-Vehicle Computer with E-Mark Conformity

Key Features:

  • Intel Atom processor quad-core x7433RE, 1.5GHz

  • Eight SIM cards + four WWAN modules support

  • Built-in u-blox-M9N GPS, Built-in CAN FD

  • 1 x External storage (compatible with 9mm disk)

  • 3 x M.2 + 2 x mPCIe socket expansion

  • Wide voltage input 9~36 VDC

  • Three video outputs, one VGA, one HDMI, and one DP


Enquire Now
Enquire Now

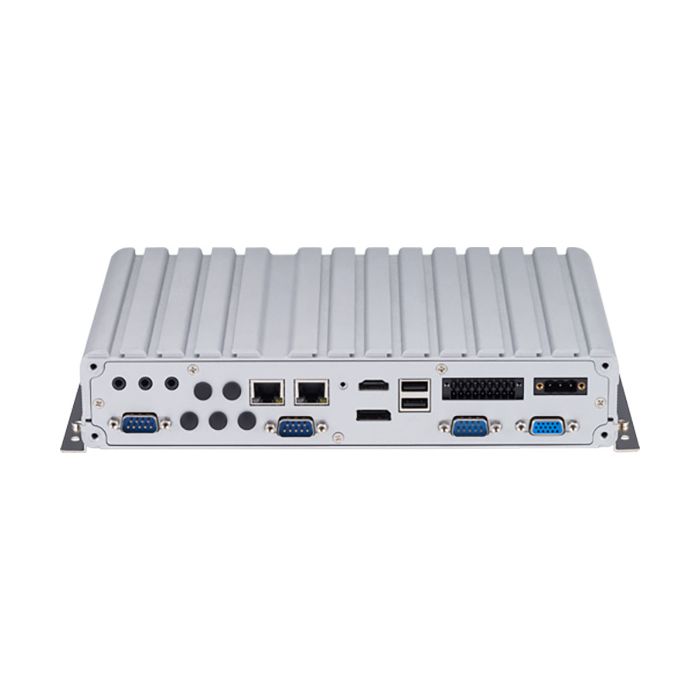

main product photo
We build to order

Introducing the VTC 6231, a cutting-edge vehicle computing solution powered by the Intel Atom® quad-core processor x7433RE. Designed to meet the rigorous E mark standards, this rugged, fanless, and compact device ensures reliable performance in demanding environments.

Equipped with a built-in CAN FD interface, the VTC 6231 facilitates seamless communication between vehicles and computers. Its extensive connectivity options include rich WLAN and WWAN wireless capabilities, providing flexibility and reliability on the go. With dual SIM card support per modem, up to eight SIM cards can be utilized simultaneously, enhancing connectivity and ensuring uninterrupted data transmission.

Moreover, the VTC 6231 boasts intelligent power management features, enabling remote wake-up via ignition, RTC timer, or SMS message. This ensures efficient power utilization and accessibility even from afar.

Expanding its versatility, the VTC 6231 offers a myriad of I/O ports and dual mini-PCIe slots along with three M.2 sockets, allowing for comprehensive expansion options. Its support for up to three screens via VGA, HDMI, and DP connections further enhances its adaptability for various vehicle applications including infotainment, dispatching systems, cellular/wireless network connectivity, and video surveillance.

The inclusion of two mini-PCIe slots addresses potential market demands, ensuring compatibility with evolving technology requirements. With its robust features and flexible design, the VTC 6231 stands as a reliable solution for diverse vehicular computing needs.


This product is listed in Transport, Nexcom
Specifications

CPU

  • Intel Atom® processor x7433RE, 1.5GHz, 9W, 4 core

Memory

  • 1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB. default 8GB

Video Output

  • 1 x VGA up to 1920 x 1200 @60Hz

  • 1 x HDMI 2.0 up to 4096 x 2160 @60Hz

  • 1 x DP up to 4096 x 2160 @60Hz

Storage

  • 1 x 2.5” SATA 3.0 external SSD (compatible with 9mm drive)

  • 1 x mSATA (occupy one mPCIe slot)

Expansion

  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM

  • 1 x Full-size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN

  • 1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module

  • 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0) for WiFi, BOM option M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM

GNSS and On Board Sensor

  • 1 x Default u-blox NEO-M9N GNSS module for GPS/Glonass/QZSS/ Galileo/Beidou

  • Optional M9V modules with dead reckoning available

  • G Sensor (3-axis, 10-bit resolution)

LAN

  • 2-Port LAN, 10/100/1000/2500 Mbps I226-IT Ethernet Controller

Security

  • TPM 2.0: Infineon SLB9670VQ2.0

I/O Interface-Front

  • 12 x LED indicators (including 3 x programmable LED)

  • 8 x Externally accessible Nano-SIM card sockets with cover

  • 1 x 2.5" SATA 3.0 SSD tray (removable, 9mm)

  • 1 x Reset button

  • 1 x Power button

  • 2 x USB 3.2 (Gen 2) type A

  • 9 x SMA antenna

I/O Interface-Rear

  • 1 x 3-pin terminal block for 9V~36 VDC

  • 2 x USB 2.0 type A

  • 2 x RJ45 LAN port, 10/100/1000/2500 Mbps

  • 1 x Mic-in, 1 x Line-out, 1 x Line-In

  • 1 x VGA, 1 x HDMI 2.0, 1 x DP

  • 2 x DB9 (COM1, COM2) for selectable RS232/422/485 Full

  • 5 x SMA antenna

  • 1 x DB9 for RS232 Full1 x 18-pin terminal block
    - 1 x CAN FD (isolated)
    - 4 x DI
    - 4 x DO
    - 1 x GNSS Speed/Direction
    - 12V/2A DC output
    - GND

Power Management & Software Support

  • Power input 9~36 VDC

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/off delay time by software

  • Support S3/S4 suspend mode

  • 10~255 seconds WDT support, setup by software

  • SDK (Windows/Linux) including utility and sample code

Operating System

  • Windows 10, 11 (64-bit)

  • Linux 4.x

Dimensions

  • 260mm (W) x 196mm (D) x 50mm (H) (10.24” x 7.71” x 1.97”)

Weight

  • 2.5kg

Environment

  • Operating temperatures:
    - -40°C to 70°C (w/ industrial SSD) with airflow

  • Storage temperatures: -40°C to 85°C

  • Relative humidity: 10% to 90% (non-condensing)

  • Vibration
    - IEC 60068-2-64, 2G for SSD
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24

  • Shock
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Standards/Certifications

  • CE

  • FCC Class A

  • E13 mark
Downloads
pdf
Datasheet
pdf
User Manual*
Lock You have to Login or Register to download this file
Ordering Information

VTC 6231 (P/N: 10V00623100X0)
Intel Atom® processor x7433RE CPU,8GB DDR5 SO-DIMM, DC input 9~36 VDC, 1 x VGA, 1 x HDMI, 1 x DP, 2 x LAN, 2 x selectable RS232/422/485 Full, 1 x RS232 Full, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0
