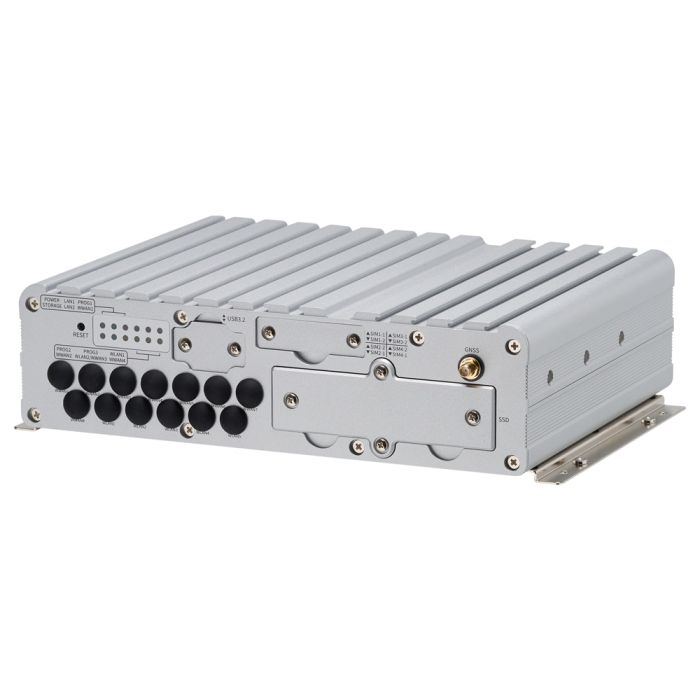

The VTC 6231-IP, powered by the Intel Atom quad-core processor x7433RE, meets stringent E-mark standards with its rugged, fanless, and compact design. It ensures comprehensive communication between vehicles and computers through a built-in CAN FD interface. The VTC 6231-IP offers robust WLAN and WWAN wireless connectivity, supporting dual SIM cards per modem. This configuration allows up to eight SIM cards to back each other up, enhancing connectivity quality via software. Additionally, its architecture of eight SIM cards and four WWAN modules increases bandwidth for faster data transmission speeds.
Equipped with intelligent power management, the VTC 6231-IP can be remotely activated by ignition, RTC timer, or SMS message. It integrates a variety of I/O ports, including 2 mini-PCIe slots and 3 M.2 sockets, supporting up to dual screens via VGA and HDMI connections, and is compliant with IP66 standards. This flexibility makes the VTC 6231-IP suitable for various vehicle applications, such as infotainment, dispatching systems, cellular/wireless network connectivity, and video surveillance. The inclusion of 2 mini-PCIe slots addresses potential market demands as needed.
1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB.
default 8GB
Video Output
1 x VGA up to 1920 x 1200 @60Hz
1 x HDMI 2.0 up to 4096 x 2160 @60Hz
Storage
1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)
1 x mSATA (occupy one mPCIe slot)
Expansion
2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM
1 x Full size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN
1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module
1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0) for WiFi, BOM option M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM
GNSS and On Board Sensor
1 x Default u-blox NEO-M9N GNSS module for GPS/Glonass/QZSS/ Galileo/Beidou
Optional M9V modules with dead reckoning available
Intel Atom® processor x7433RE CPU, 8GB DDR5 SO-DIMM, DC input 9~36 VDC, 1 x VGA, 1 x HDMI, 2 x LAN, 2 x selectable RS232/422/485 Full, 1 x RS232 Full, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0, Full IP66 protection
