Brand: Nexcom

VTC7230 - i3-5010U, 3x sim support, 2x SATA SSD

In stock

SKU:

VTC7230

Intel® Core™ i3-5010U Fanless In-Vehicle Computer

End of Life

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Intel® Core™ i3-5010U Fanless In-Vehicle Computer

· Intel® Core™ processor dual core i3-5010U

· Three SIM cards + dual WWAN modules support

· Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)

· Built-in u-blox NEO-M8N module, optional Dead Reckoning support

· Built-in CAN 2.0B. Optional CAN/OBDII module

· Wake on RTC/SMS via WWAN module

· Voice communication via WWAN module

· Compliant with MIL-STD-810G

· 4 x mini-PCIe socket rich expansion capability

This product is listed in Nexcom

Specifications

_CPU	_{Intel® Core™ processor dual core i3-5010U, 2.1GHz}
_Memory	_{2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default 2GB}
_Storage	_{2 x 2.5" SATA 3.0 SSD/HDD (externally accessible), RAID 0,1 supported (optional lockable storage available)} _{1 x CFast (externally accessible)}
_Expansion	_{1 x full size Mini-PCIe socket (USB 2.0)} _{1 x full size Mini-PCIe socket (USB 2.0 + PCIe)} _{1 x full size Mini-PCIe socket (USB 2.0 + PCIe)} _{1 x half size Mini-PCIe socket (USB 2.0 + PCIe)}
_Function	_{1 x default U-blox UBX-G6010 GPS module (50-channel and GALIELO) or optional modules with Dead Reckoning or GLONASS support Built-in G-sensor}
_{I/O Interface-Front}	_{4 x LED for power, storage, WWAN, WLAN} _{2 x externally accessible SATA 3.0 SSD/HDD tray, RFID 0, 1 supported (optional lockable storage available)} _{1 x dual USB type A connector for USB 3.0 port + USB 2.0 port} _{2 x externally accessible SIM card socket (selectable)} _{1 x phone jack 3.5mm} _{1 x Mic-In} _{1 x phone jack 3.5mm} _{1 x Line-Out} _{1 x externally accessible CFast card socket with cover} _{1 x event button (trigger type)} _{1 x reset button} _{3 x antenna hole for WWAN/WLAN/BT}
_{I/O Interface-Rear}	_{1 x 9~36VDC input with ignition} _{1 x dual USB type A connector for USB 3.0 port + USB 2.0 port} _{2 x RJ45 10/100/1000 Fast Ethernet with LED} _{1 x phone jack 3.5mm} _{1 x Mic-In} _{1 x phone jack 3.5mm} _{1 x Line-Out with 1.5W output each} _{1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz} _{1 x DP port. Resolution up to 2560 x 1600 @60Hz} _{2 x DB-9 RS-232} _{1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)} _{1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B Mini-PCIe card)} _{2 x MCU-DI} _{2 x MCU-DO} _{1 x 16-pin terminal block} _{1 x CAN Bus 2.0B (on board)} _{1 x optional OBDII module (ASE J1939 or J1708)} _{8 x Programmable GPIO} _{(Digital Input)} _{Input voltage (internal type): 5VDC TTL (default)} _{Input voltage (source type): 3~12VDC} _{(Digital Output)} _{Digital Output (sink type): 5VDC TTL (default), max current: 20mA} _{Digital Output (source type): 3~24VDC, max current: 150mA 1 x 12VDC output (2A), SM Bus 4 x antenna hole for WWAN/ WLAN/ BT/GPS 1 x Fuse (15A)}
_{Power Management}	_{Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode}
_{Operating System}	_{Windows 8, WES8 Window 7, WES7 Linux kernel 3.X}
_Dimensions	_{260 mm (W) x 206 mm (D) x 79.5 mm (H) (10.24" x 8.11" x 3.13") Weight: 2.5kg}
_Environment	_{Operating temperatures : Ambient with air -30°C to 60°C Storage temperatures : -35°C to 85°C}

Downloads

Product Data Sheet

VTC7230 - i3-5010U, 3x sim support, 2x SATA SSD

CPU

Memory

2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default 2GB

Storage

2 x 2.5" SATA 3.0 SSD/HDD (externally accessible), RAID 0,1 supported (optional lockable storage available)

1 x CFast (externally accessible)

Expansion

1 x full size Mini-PCIe socket (USB 2.0)

1 x full size Mini-PCIe socket (USB 2.0 + PCIe)

1 x full size Mini-PCIe socket (USB 2.0 + PCIe)

1 x half size Mini-PCIe socket (USB 2.0 + PCIe)

Function

1 x default U-blox UBX-G6010 GPS module (50-channel and GALIELO) or optional modules with Dead Reckoning or GLONASS support Built-in G-sensor

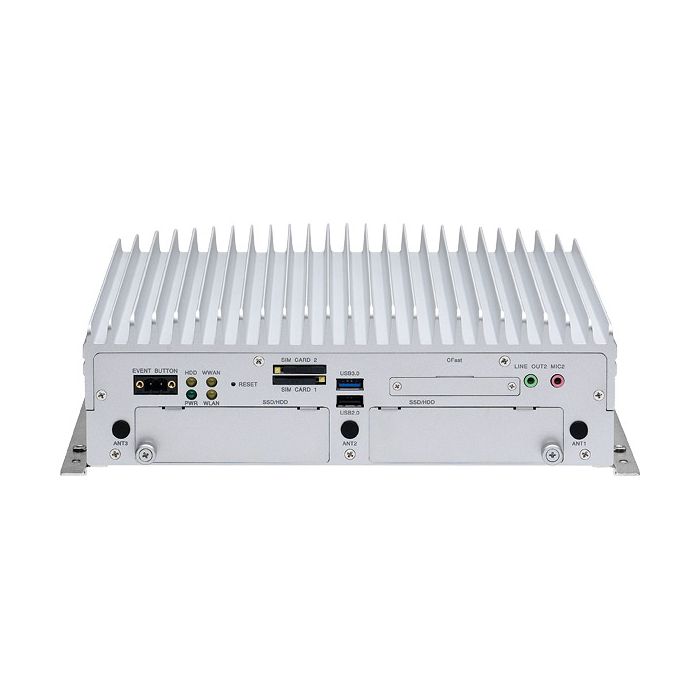

I/O Interface-Front

4 x LED for power, storage, WWAN, WLAN

2 x externally accessible SATA 3.0 SSD/HDD tray, RFID 0, 1 supported (optional lockable storage available)

1 x dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x externally accessible SIM card socket (selectable)

1 x phone jack 3.5mm

1 x Mic-In

1 x phone jack 3.5mm

1 x Line-Out

1 x externally accessible CFast card socket with cover

1 x event button (trigger type)

1 x reset button

3 x antenna hole for WWAN/WLAN/BT

I/O Interface-Rear

1 x 9~36VDC input with ignition

1 x dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x RJ45 10/100/1000 Fast Ethernet with LED

1 x phone jack 3.5mm

1 x Mic-In

1 x phone jack 3.5mm

1 x Line-Out with 1.5W output each

1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz

1 x DP port. Resolution up to 2560 x 1600 @60Hz

2 x DB-9 RS-232

1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)

1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B Mini-PCIe card)

2 x MCU-DI

2 x MCU-DO

1 x 16-pin terminal block

1 x CAN Bus 2.0B (on board)

1 x optional OBDII module (ASE J1939 or J1708)

Power Management

Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode

Operating System

Windows 8, WES8 Window 7, WES7 Linux kernel 3.X

Dimensions

260 mm (W) x 206 mm (D) x 79.5 mm (H) (10.24" x 8.11" x 3.13") Weight: 2.5kg

Environment

Operating temperatures : Ambient with air -30°C to 60°C Storage temperatures : -35°C to 85°C
