Brand: Nexcom
VTC7240 - i7-5650U, 3x sim support, 4x mPCIe sockets
In stock
SKU:
VTC7240
Intel® Core™ i7-5650U Fanless In-Vehicle Computer
End of Life
Enquire Now
Enquire Now
Intel® Core™ i7-5650U Fanless In-Vehicle Computer
· Intel® Core™ processor dual core i7-5650U
· Three SIM cards + dual WWAN modules support
· Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)
· Built-in u-blox NEO-M8N module, optional Dead Reckoning support
· Built-in CAN 2.0B. Optional CAN/OBDII module
· Wake on RTC/SMS via WWAN module
· Voice communication via WWAN module
· Compliant with MIL-STD-810G
· 4 x mini-PCIe socket rich expansion capability
| CPU | Intel® Core™ processor dual core i7-5650U, 2.2GHz |
| Memory | 2 channel 204-pin DDR3L SO-DMIM socket support 1333/1666MHz up to 16GB, default Industrial grade 2GB |
| Storage | 2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available) 1 x CFast (externally accessible) |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Half size mini-PCIe socket (USB 2.0 + PCIe) |
| Function | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor |
| I/O Interface-Front | 4 x LED for power, storage, WWAN, WLAN 2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available) 1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port 2 x Externally accessible SIM card socket (selectable) 1 x Phone jack 3.5mm for 1 x Mic-In 1 x Phone jack 3.5mm for 1 x Line-out 1 x Externally accessible CFast card socket with cover 1 x Event button (trigger type) 1 x Reset button 3 x Antenna hole for WWAN/WLAN/BT |

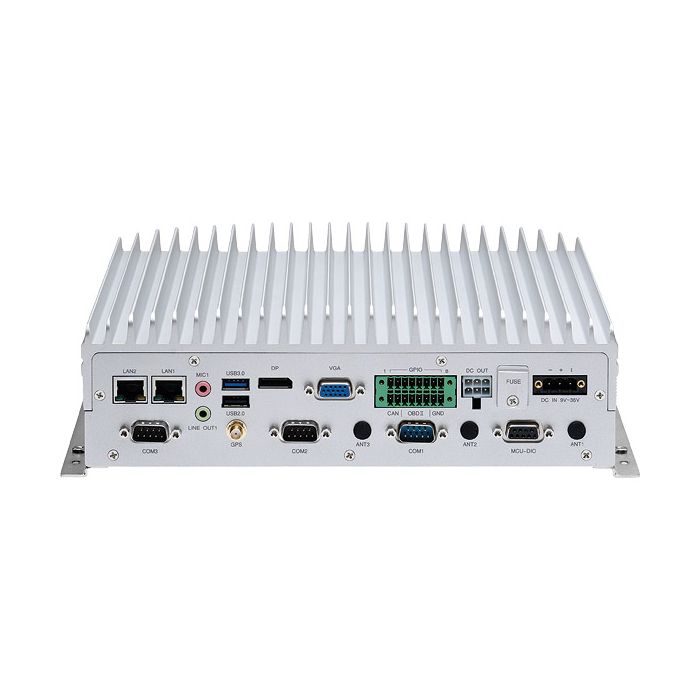

| I/O Interface-Rear | 1 x 9 ~ 36VDC input with ignition and 35W typical power consumption 1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port 2 x RJ45 10/100/1000 Fast Ethernet with LED 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out with 1.5W output each 1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz 1 x DP port. Resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/12V selectable) 1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939) - 8 x Programmable GPIO (Digital Input) Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3 ~ 12VDC (Digital Output) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 24VDC, max current: 150mA 1 x 12VDC output (2A), SM Bus 4 x antenna hole for WWAN/WLAN/BT/GPS 1 x Fuse (15A) |
| Power Management | Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode |
| Operating System | Windows 10, Windows 8, WES8 Windows 7, WES7 Linux kernel 3.X |
| Dimensions | 260mm (W) x 206mm (D) x 79.5mm (H) (10.24" x 8.11" x 3.13") Weight: 2.5kg |
| Environment | Operating temperatures: -30°C to 55°C (w/ industrial SSD) with air flow -20°C to 45°C (w/ commercial HDD) with air flow Storage temperatures: -35°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.5g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD) Vibration (SSD/HDD): Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Standards/Certifications | CE approval FCC Class A E13 Mark |
