Brand: Nexcom

VTC7280-5C5 Fanless AI Powered Vehicle Computer with Intel Core Ultra

In stock
SKU:
VTC7280-5C5

Fanless AI Powered Vehicle Computer with Intel Core Ultra Meteor-Lake H

Key Features:

  • Powered by Intel® Core™ Ultra Meteor-Lake H, up to 26 TOPS AI computing power
  • Fanless, compact and rugged design
  • 5 x 2.5GbE, up to PoE++ (IEEE 802.3bt) support
  • 100/1000BaseT1 Automotive Ethernet support, optional
  • Expand up to 2 x WWAN, 2 x WLAN for mobile router performance
  • 2 x 2.5” SSD, 1 x NVMe SSD (PCIe 4.0 x4) for data integrity
  • 9~36V DC-IN with ignition control & OCP/OVP
  • Wide range operating temperature of -40°C~60°C
  • MIL-STD Military standard for anti-vibration/shock
  • CE/FCC, UKCA, E mark certified

Enquire Now
Enquire Now
main product photo
We build to order

Powered by the Intel® Core™ Ultra Meteor Lake H processor with 26 TOPS of AI computing power, the VTC 7280-xC5 offers a 30% performance boost over its predecessor. Its compact, rugged, and fanless design enables installation in space-constrained environments and operation in harsh conditions. It is suitable for various in-vehicle applications, including fleet management, logistics/AMR, ITS, construction, ANPR, and public transportation security surveillance.

Equipped with a range of peripherals, including 5 2.5GbE PoE++, 1/3 USB 3.2/2.0, 2 isolated CAN FD, 3 serial ports, NVMe/2.5” SSD, 4 x nano-SIM slot, two HDMI®, and a wide-range 9~36V DC/IGN control, the VTC 7280-xC5 is a sophisticated AI-aided telematics computer. As an edge AI computer, it supports multi-LTE/5G and Wi-Fi 5/6 for cloud SaaS to provide AIoT/AI training/inference services.

Designed to withstand harsh environments, the VTC 7280-xC5 operates at temperatures ranging from -40°C to 60°C and complies with the MIL-STD-810H military standard for vibration and shock resistance. The VTC 7280-xC5 is certified to meet global standards, including CE/FCC Class A, UKCA, and E mark (E13).




This product is listed in Nexcom
Specifications

CPU

  • Intel® Core™ Ultra Meteor-Lake H
    - Core™ Ultra 9 processor 185H
    - CoreTM Ultra 5 processor 125H

  • NPU
    - 2 x 2048 MACs computing performance

  • Graphics
    - Intel® Arc™ graphics
    - Max resolution: 4096x2160@60Hz (HDMI®)
    - DirectX: 12.2, OpenGL: 4.6

Memory

  • 2 x DDR5 5600 SO-DIMM, 8GB default, up to 32G per DIMM

Storage

  • 2 x 2.5” SATA 3.0 SSD (15mm height, removable)

  • 1 x M.2 2280 Key M SSD (PCIe 4.0 x4), Hailo card in option

Expansion Slots

  • 1 x Mini PCIe slot (PCIe 4.0, USB 2.0)

  • 1 x Mini PCIe slot (PCIe 4.0, USB 2.0), BOM option for M.2 Key B (USB 3.2/2.0), supports nano-SIMs

  • 1 x M.2 Key B 3042/3052 (USB 3.2/2.0), supports nano-SIMs for LTE/5G module

  • 1 x M.2 Key E 2230 (PCIe 4.0 x2 & USB 2.0)

Display

Security

  • TPM 2.0
    - Infineon SLB9672VU2.0FW15.23

2.5GbE PoE++

  • 5 x independent 2.5GbE RJ45 PoE port
    - iAMT/ WoL/ PXE support (LAN1)
    - 9Kbyte Jumbo frame
    - IEEE 802.3af/at/bt, total 80W, PSE 60W for LAN1
    - PTP (IEEE 1588) support
    - Controller: Intel® I226-IT

Audio

  • 1 x Line out, unbalanced stereo, left/right channel, audio Jack

  • 1 x MIC in, stereo, audio Jack

  • 1 x Line-in, wafer reserved

  • Codec: Realtek ALC888S-VD2-GR

DC Out

  • 12V DC/3A, terminal block

USB

  • 1 x USB 3.2 Gen 2
    - Host Type-A
    - 5V@900mA
    - Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

  • 3 x USB 2.0
    - Host Type-A
    - 5V@500mA each

Serial Port

  • 2 x COM port (DB9), supports full RS-232/422/485

  • 1 x COM port (DB9), supports full RS-232 (DB9)

  • 1 x full RS-232 (wafer reserved)

  • RS-232 working voltage, +- 9V, baud rate up to 115.2kb/s

  • 2-wire/4-wire RS-485 (Baud rate: 300~115.2Kbps)

MEMS Sensor

  • 3D accelerometer and 3D gyroscope, ST LSM6DSLTR

DI/DO (isolation)

  • 4-bit input
    - Source: 9~36V DC ([email protected]/[email protected])
    - External: 0~33V DC pull-high, high/low level 3.3 – 33/ 0 - 2V DC

  • 4-bit output
    - Source: 9~36V DC (nominal 35mA@24V)
    - External: 5~36V DC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

  • Source or external can be selected by DIP S/W (default: source type)

CAN Bus

  • 2 x CAN FD, compatible with CAN 2.0A/2.0B

  • Up to 5Mb/s in data transmit, 2.5KV isolated

  • IEC 61000-4-2 Electrostatic Discharge (ESD): ± 6KV/8KV (contact/air)

GNSS

  • u-blox NEO-M9N GNSS module (VIOB-GPS-07) for
    GPS/Gloness/QZSS/Galileo/Beidou

  • Optional DR (Dead Reckoning) function, NEO-M9V (VIOB-GPSDR07)

Power Supply

  • Nominal voltage: DC 9V to 36V

  • Cranking voltage: DC 6V to 9V (less than 20 sec)

  • Reverse protection, OCP & UVP (shut down once exceeding 36.5V)

  • Ignition on/off control & programmable on/off delay timer

  • Optional for remote power on/off control

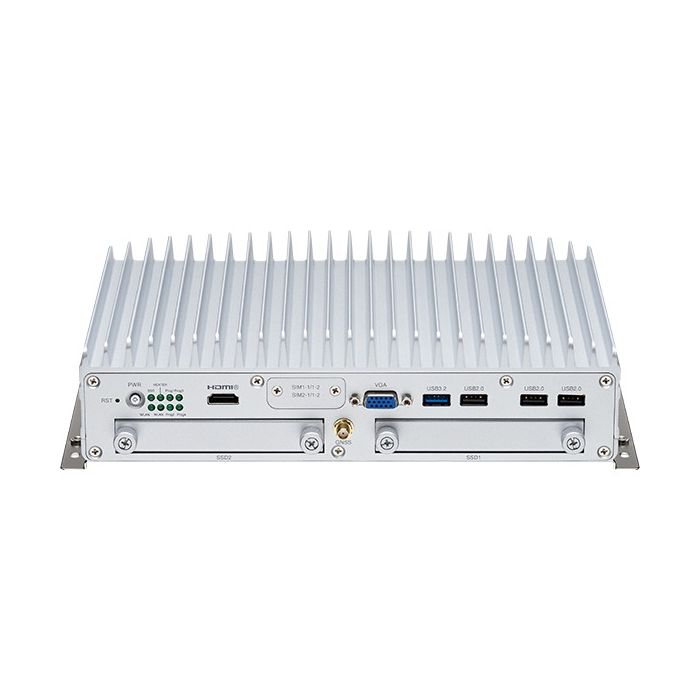

I/O ports, Front-Plate

  • ATX power & Reset button

  • 8 x LED Indicator

  • 4 x nano-SIM slot (SIM1-1, SIM1-2, SIM2-1, SIM2-2)

  • 1 x USB 3.2, Type-A

  • 3 x USB 2.0, Type-A

  • 1 x HDMI®, 1 x VGA

  • 2 x removable 2.5” SSD bay

  • 1 x PR-SMA for GNSS

I/O ports, Rear-Plate

  • 1 x RS-232 (DB9, COM3)

  • 2 x RS-232/422/485 (DB9, COM1, COM2)

  • Audio jack for Line out, MIC in

  • Multi-port DB15 (4 x DI, 4 x DO, 2 x CAN FD)

  • 5 x 2.5GbE PoE, RJ45

  • 1 x terminal block (DC-OUT)

  • 3-pin Phoenix for 9~36V DC-in

  • 2 x PR-SMA for Wi-Fi ant. 4 x SMA for LTE/5G ant.

Internal Heater

  • Activation threshold: less than -10°C

  • Remote heater ON/OFF signal, wafer reserved

Dimensions & Weight

  • 260.0mm x 180.0mm x 66.5mm (w/o mount bracket)

  • 280.0mm x 180.0mm x 72.5mm (w/ mount bracket)

  • Weight: 5.8kg

Environment

  • Operating temperatures: -40°C~60°C (45W CPU w/ PoE, fanless)

  • Storage temperatures: -40°C~85°C

  • Relative humidity: 10%~95% (non-condensing)

Vibration & Shock

  • Vibration in operating
    - MIL-STD-810H, 514.8C Procedure 6, Category 4
    - IEC 60068-2-64: 2.0g@5~500Hz

  • Vibration in storage
    - MIL-STD-810H, 514.8E Procedure 1, Category 24, 7.7g

  • Shock
    - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g
    - Crash hazard: Procedure V, ground equipment=75g

Certifications

  • CE approval, FCC Class A, UKCA, E mark certified

Operating System

  • Windows 11

  • Windows 10 64-bit, Windows 10 IOT Enterprise 64-bit

  • Linux (Ubuntu 22.04, Linux 5.19)
Downloads
pdf
Datasheet
Ordering Information

VTC7280-5C5 (P/N: 10V00728001X0)

Intel® Meteor Lake H (125H), 5 x 2.5GbE PoE++, 1 x USB3.2, 3 x USB 2.0, 3 x Serial, 2 x 2.5” SSD, 4DI/4DO, 2 x CAN FD, 9~36V DC/IGN
