Wireless-AC 9260 Adapter 5th Gen Intel 802.11a
In stock
SKU:
WLAN 9260.NGWG

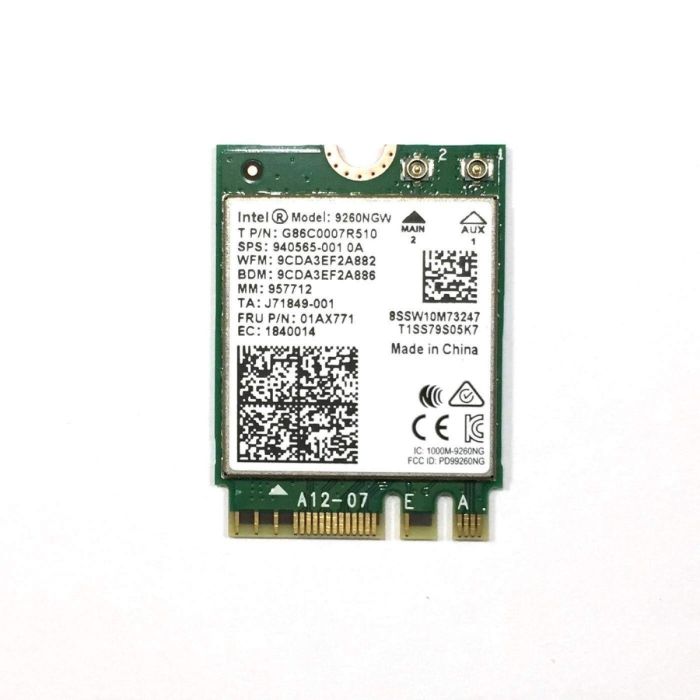

Intel Wireless-AC 9260 5th Generation Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 5.1
Enquire Now
Enquire Now
General:
- Dimensions
- (H x W x D) M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]
- M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
- Weight
- M.2 2230: 2.9 +/– 0.3 g
- M.2 1216: 0.61 +/– 0.1 g
- Antenna Diversity: Supported
- Radio ON/OFF Control: Supported
- Connector Interface: M.2: PCIe*, USB
- Operating Temperature (Adapter Shield): 0°C to +80°C
- Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
- Operating Systems: Microsoft Windows 10, Linux (limited feature support), Chrome OS
- Wi-Fi Alliance: Wi-Fi CERTIFIED a/b/g/n/ac with wave 2 features, WMM, WMM-PS, WPA2, WPA3, WPS2, Protected Management Frames, Wi-Fi Miracast as Source, and Wi-Fi Direct (For Microsoft Windows only)
- IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k, 802.11v pending OS support; Fine Timing Measurement based on 802.11REVmc
- Roaming: Supports seamless roaming between access points
- Bluetooth: Bluetooth 5.1
Security:
- Authentication: WPA2 and WPA3, 802.1X (EAP-TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-AKA)
- Authentication Protocols: PAP, CHAP, TLS, MS-CHAP, MS-CHAPv2
- Encryption: 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 128-bit and 256-bit AES-GCMP
- Wi-Fi Direct Encryption and Authentication: WPA2-PSK, AES-CCMP
Compliance:
- Regulatory: For a list of country approvals, please contact your local Intel representatives.
- US Government: FIPS, FISMA
- Product Safety: UL, C-UL, CB (IEC 60950-1)
