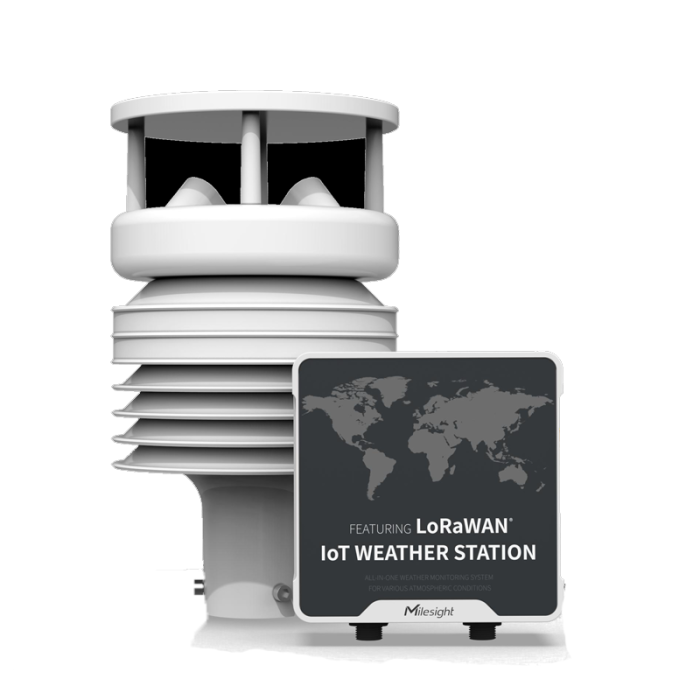

WTS Series LoRaWAN IoT Weather Station
IoT Weather Station (WTS Series) is an all-in-one LoRaWAN® weather monitoring system for various atmospheric conditions
|
Model |
WTS305 |
WTS505/WS506 |
|
Temperature |
||
|
Range |
-40°C - 85°C |
|
|
Accuracy |
± 0.3°C |
|
|
Resolution |
0.1°C |
|
|
Humidity |
||
|
Range |
0% - 100% RH |
0% - 100% RH |
|
Accuracy |
± 5% RH |
± 3% RH |
|
Resolution |
0.5% RH |
0.5% RH |
|
Wind Direction |
||
|
Range |
0° - 360° |
|
|
Accuracy |
± 3° |
|
|
Resolution |
1° |
0.1° |
|
Wind Speed |
||
|
Range |
0 -60 m/s |
|
|
Accuracy |
± (0.5 + 0.02 V) m/s, V=Speed |
± 0.3 m/s or ± 3% (whichever is greater) |
|
Resolution |
0.1 m/s |
|
|
Barometric Pressure |
||
|
Range |
500 - 1100 hPa |
|
|
Accuracy |
±1 hPa |
±0.5 hPa |
|
Resolution |
0.1 hPa |
|
|
Rainfall (WTS506 Only) |
||
|
Range |
- |
0 - 500 mm |
|
Accuracy |
- |
±0.5 mm (< 10 mm), ±5 %( >10 mm) |
|
Resolution |
- |
0.01 mm |
|
Physical Characteristics |
||
|
Material |
ABS |
Aluminium Alloy |
|
Weight |
1 kg |
WTS505: 2 kg WTS506: 2.15 kg |
|
Dimension |
ф140 x 248 x ф50 mm |
WS505: ф160 x 252 x ф73 mm WS506: ф160 x 263 x ф73 mm |
|
Operating Temperature |
-40°C to +60°C |
-40°C to +85°C |
|
Relative Humidity |
0% - 100% (non-condensing) |
|
|
Ingress Protection |
IP65 |
|
|
Installation |
Pole Mounting |
|
|
WTS Hub |
||
|
Wireless Transmission |
||
|
Technology |
LoRaWAN |
|
|
Frequency |
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
|
Max Tx |
Power 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz) |
|
|
Sensitivity |
-137dBm @300bps |
|
|
Work Mode |
OTAA/ABP Class A |
|
|
Operation |
||
|
Power On & Off |
Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal) |
|
|
Configuration |
Mobile App (via NFC) or PC software (via USB Type-C) |
|
|
Physical Characteristics |
||
|
Power Supply |
Solar powered (15 W, 1A) with 2 × 2550 mAh chargeable batteries backup |
|
|
Operating Temperature |
-20°C to +60°C |
|
|
Relative Humidity |
0% to 95% (non-condensing) |
|
|
Ingress Protection |
IP67 |
|
|
Dimension |
116 × 116 × 45.5 mm |
|
|
Installation |
Screw Mounting |
|
|
Solar Panel |
||
|
Electrical Characteristics |
||
|
Open-Circuit Voltage |
18 V (± 0.3 V) |
|
|
Rated Voltage |
15 V (± 0.3 V) |
|
|
Rated Current |
1 A (± 5%) |
|
|
Maximum Power |
15 W (± 5%) |
|
|
Minimal Power |
14.5 W (± 5%) |
|
|
Physical Characteristics |
||
|
Cell Type |
Monocrystalline Silicon |
|
|
Operating Temperature |
-20°C to +80°C |
|
|
Weight |
1 kg (Without Bracket), 2.2 kg (With Bracket) |
|
|
Dimension |
343 × 283 × 16.5 mm |
|
