Brand: Nexcom

XPPC24-200A 23.8” Fanless Panel PC IP65 Front 11th Gen CPU

In stock
SKU:
XPPC24-200A-i3/-i5

23.8” TFT FHD 16:9 Slim Bezel, Multi-touch screen Powered by 11th Generation Intel Core Processor

Key Features:

  • 23.8” TFT FHD 16:9 panel
  • PCAP 10-point multi-touch with slim bezel design
  • IP65-rated front panel
  • Support: VESA/panel/open frame mount
  • 11th Gen Intel® CoreTM processor (Tiger Lake UP3)
  • 1 x 260-pin DDR4 SO-DIMM up to 32G
  • On-board M.2 2280 Key M PCIe x4 for storage module
  • Support power input 12 VDC

Enquire Now
Enquire Now

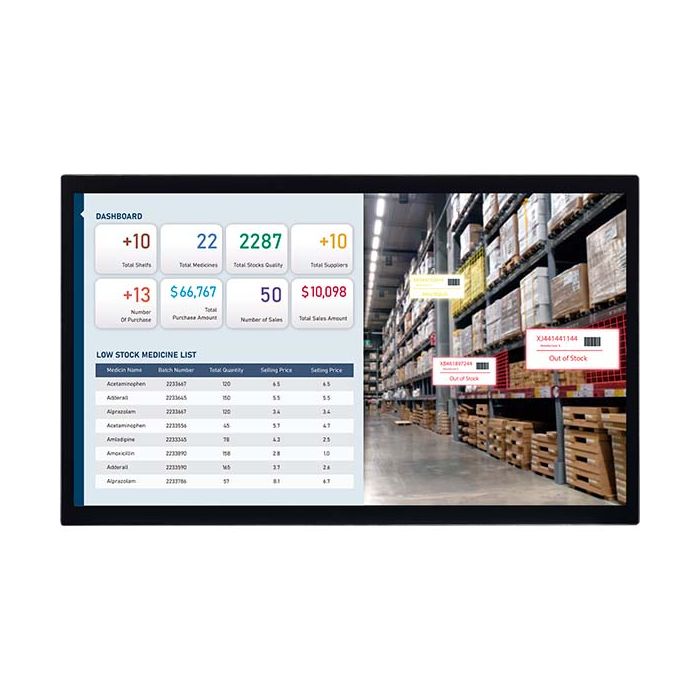

main product photo
We build to order

The fanless touchscreen computer XPPC 24-200A, featuring a 23.8” display, is powered by 11th Gen Intel® Core™ i7/i5/i3 processors (Tiger Lake UP3), providing outstanding graphics performance. With integrated Intel® Iris Xe graphics, the XPPC 24-200A delivers exceptional AI inferencing capabilities. Its compatibility with the Hailo-8 M.2 AI Acceleration Module makes it an ideal solution for AI-powered applications.

Furthermore, the XPPC 24-200A is equipped with a 10-point PCAP touchscreen, front IP65 protection, and an FHD wide-viewing-angle G series panel. Its slim profile and flexible mounting options make it well-suited for various industrial applications, including Service Robots, Smart Warehouses, Smart Cities, and Smart Pharmacies.



XPPC24-200A-i3 (P/N:10W30XPPC37X0)
23.8” FHD LED multi touchscreen computer, Intel® Core™ i3-1115G4E Processor, w/air bonding

XPPC24-200A-i5 (P/N: 10W30XPPC38X0)
23.8” FHD LED multi touchscreen computer, Intel® Core™ i5-1145G7E Processor, w/air bonding

Panel mount kit (P/N: 88W30XPPC00X0)

Open frame kit (P/N: 88W30XPPC01X0)


This product is listed in Industrial Automation, Nexcom, Industrial Panel Computers
Specifications
Panel
  • LCD size: Innolux G-series 23.8”, 16:9
  • Resolution: Full HD 1920 x 1080
  • Luminance
    - LCD panel: 350cd/m2
    - XPPC PCAP touch: 85% of panel’s luminance after air bonding
  • Contrast ratio: 1000:1
  • LCD color: 16.7M
  • Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen
  • 10-Point PCAP (Projected Capacitive Touch)
  • Air bonding
  • Glass surface treatment: AS + AG
System
  • On-board 11th Generation Intel® Core™ i3-1115G4E processor, Dual Core, 2.2 GHz base frequency, 6M Cache (formerly tiger lake-UP3 )
    - Intel® UHD graphics 630 on i3 processor
  • On-board 11th Generation Intel® Core™ i5-1145G7E processor, Dual Core, 1.5 GHz base frequency, 8M cache
    - Intel® Iris® Xe graphics on i5 processor
Main Memory
  • 1 x 260-pin DDR4 SO-DIMM, supports non-ECC, un-buffered memory up to 32G
Storage Device
  • 1 x M.2 2280 Key M SSD (support PCIe x4)
Expansion
  • 1 x M.2 2230 Key E, support optional WiFi modules
Rear I/O
  • 1 x 12V DC Jack
  • 2 x RJ45 Intel® Gigabit LAN port
  • 1 x DP++
  • 1 x HDMI 2.0
  • 4 x USB 3.0
  • 1 x Line out
  • 1 x RS232/422/485
  • LED for Power on/off
  • Power switch
Front I/O
  • 2 x Antenna hole
Mechanical
  • Color/material: black metal sheet
  • Support
    - VESA mount 100mm x 100mm
    - Panel mount
    - Open frame
Environment
  • Vibration
    - IEC 68 2-64
    - 2G @ sine, 5~500Hz, 1hr/axis
    - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
  • Shock
    - IEC 68 2-27
    - 20g peak acceleration (11 msec. duration)
  • Temperature
    - Operating temperature: with 0.35 m/s air flow: 0°C~50°C
    - Storage temperature: -20°C~60°C
  • Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions
  • System: 557mm x 336.7mm x 55mm
  • System weight: 5.8 kg
  • Package: 650mm x 480mm x 170mm
  • Package weight: 7.85 kg
Power Supply
  • 1 x 96W AC/DC lockable adapter included in accessory
  • Input: 100VAC to 240VAC
  • Output: DC+12VDC
Certifications
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI part 15B)
  • LVD (EN62368-1)
OS Support Lists
  • Windows 10 64-bit
  • Linux
