Brand: Nexcom

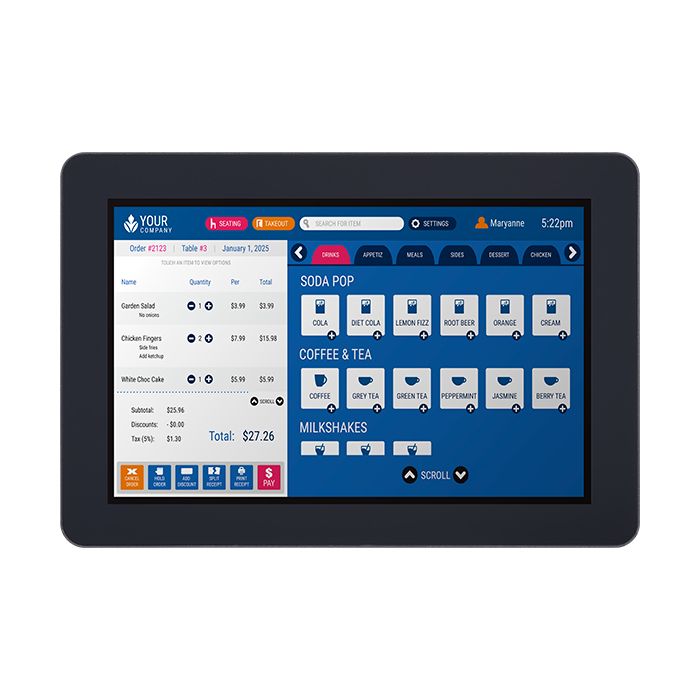

XPPC10-10N97 10.1” Fanless Touch Screen Computer Intel N97 Processor

In stock

SKU:

XPPC10-10N97

10.1” TFT WXGA 16:10 Slim Bezel Embedded Touch Screen PC Powered by Intel® Processor N97

Key Features:

10. 1” TFT WXGA 16:10 panel
10 Points P-Cap multi-touch with a slim bezel design
IP65 protection on the front
Support: VESA / Panel / Open Frame Mounting
Intel® Processor N97, 6M Cache, up to 3.6GHz
1 x DDR4 SO-DIMM, up to 16 GB
1x M.2 Key M 2242, supports PCIe x 1 & SATA for storage
1 x full-size Mini PCIe, available for Wi-Fi / LTE module
Support DC 12V power input

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The 10.1” embedded fanless panel PC XPPC10-10N97, embedded with an industrial motherboard, is intended for vertical industrial applications. XPPC10-10N97 features an industrial-grade panel with 1280 x 800 (WXGA) resolution and 400 nits brightness. The front panel adopts a slim bezel design and complies with the IP65 rating. Its flexible mounting options make it the perfect fit for industrial applications.

XPPC10-10N97 is powered by an Intel® Processor N97. With built-in Intel® UHD Graphics, it is available for AI inference, enhancing visual quality and graphics performance. With rich I/O of USB 2.0, USB 3.2, GL AN, and COM, it fulfills the demands of various edge computing applications. XPPC10-10N97 is ideal for diverse applications, such as self-service kiosks, smart retail, and payment machines.

This product is listed in Nexcom, Industrial Panel Computers

Specifications

Panel	LCD size: 10.1”, 16:10 Resolution: 1280 x 800 (WXGA) Luminance: - LCD panel: industrial grade 400cd/m2 - XPPC PCAP touch: 90% of panel’s luminance after optical bonding Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89(R)
Touch Screen	10 points P-Cap (Projected Capacitive Touch) Optical Bonding Glass Surface Treatment: AS (Anti-Smudge Coating for easy cleaning)
System	Intel® Processor N97 Intel® UHD Graphics TPM 2.0
Main Memory	1 x DDR4 SO-DIMM, non-ECC, up to 16GB
Storage Device	1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1, SATA 3.0) 1 x Mini PCIe slot, supports mSATA
Expansion	1 x Mini PCIe slot - Support Wi-Fi/BT module
I/O Interface - Rear	1 x DC 12V input 2 x 1GbE RJ45 port, Intel® I210AT 1 x HDMI 2.0b, up to 3840x2160@60Hz 2 x USB 3.2 Gen 1x1, Type-A 2 x USB 2.0, Type-A 1 x Speaker out (can’t hot plug) 1 x Power button
I/O Interface - Front	2 x Antenna hole 1 x COM port, supports RS-232/422/485
I/O Interface - Internal	1 x 4-pin header for Line out 1 x 10-pin header for 4-in & 4-out GPIO 1 x 9-pin header for COM2 RS-232 1 x 3-pin jumper for LCD panel voltage 3.3V/5V setting 1 x DC Power thru one 2-pin pitch=3 . 96 mm ATX connector (lockable)
Mechanical & Environment	System Unit - Dimension: 260.3mm (W) x 178.3mm (D) x 47.9mm (H) - Net weight: 1.62kg/ Unit Support - VESA Mount 100mm x 100mm - Panel Mount (optional kit) - Open Frame (optional kit) Package Carton - Dimension: 343mm x 308mm x 158mm - Gross weight: 2.7kg/ (1 unit / per carton)
Environment	Operating temperature: - Ambient with air flow: 0°C ~ 50°C - Storage temperature: -20°C ~ 60°C Relative humidity: 0%~90% (non-condensing) Shock protection: 20g peak acceleration, 11 ms according to IEC 60068-2-27 Vibration protection - Random: 2.2Grms@5~500Hz, 0.5hr/axis (non-operating), IEC 60068-2-64 - Sinusoidal: 2Grms@5~500Hz, 1hr/axis, IEC 60068 -2-6
Power Supply	Input: DC 12V input - 1 x 12V, 60W AC/DC lockable adapter included in accessory
Certifications	CE (EMC EN 55035 + EN 55032) FCC Class A (EMI Part 15B) LVD (EN 62368-1)
OS Support Lists	Windows 11 Windows 10, 64bit Linux

Downloads

Datasheet

Ordering Information

XPPC10-10N97 (P/N: 10W30XPPC41X0)
10. 1” WXGA LED multi-touchscreen computer, Intel^® Processor N97, w/ optical bonding

Panel mount kit (P/N: 88W30XPPC02X0)

Open frame kit (P/N: 88W30XPPC13X0)
