Brand: Nexcom

XPPC22-100A 21.5” TFT FHD Multi-Touch Panel PC

In stock
SKU:
XPPC22-100A

21.5” TFT FHD 16:9 Slim Bezel, Multi Touchscreen Computer Powered by Intel Celeron Processor J3455

Key Features:

  • 21.5” TFT FHD 16:9 panel
  • 10 Points P-Cap multi-touch with slim bezel design
  • IP65 protection on the front
  • Support: VESA/panel/openframe mount
  • Onboard Intel Celeron processor J3455
  • 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
  • Support power input 19 VDC

Enquire Now
Enquire Now

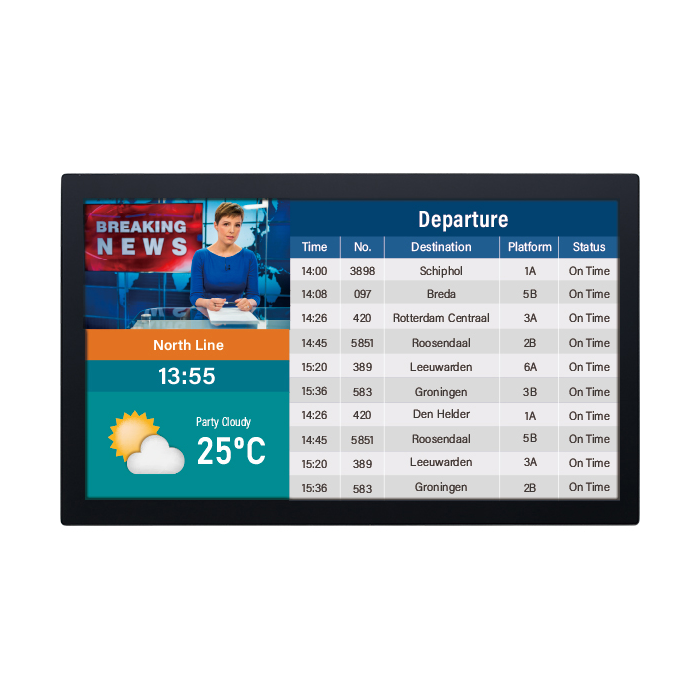

main product photo
We build to order

The 21.5" fanless touchscreen computer XPPC 22-100A with an industrial motherboard is designed for a wide range of industrial applications. The XPPC 22-100A has a touch screen LED backlight LCD panel with a resolution of 1920 x 1080 (FHD) and a brightness of 400 nits. The front panel's flush design and compliance with the IP65 standard by panel mount make it ideal for industrial applications. It is powered by an Intel Celeron processor and supports DDR3L memory up to 8GB. The XPPC 22-100A has a slim design and weight optimisation, as well as multi-mounting options for various applications. The XPPC 22-100A can be used in a variety of settings, including hotel self-check-in systems, department stores, welcome boards, and advertising.

Key Features:

  • 21.5” TFT FHD 16:9 panel
  • 10 Points P-Cap multi-touch with slim bezel design
  • IP65 protection on the front
  • Support: VESA/panel/openframe mount
  • Onboard Intel Celeron processor J3455
  • 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
  • Support power input 19 VDC

This product is listed in Industrial Automation, Nexcom, Industrial Panel Computers
Specifications
Panel
  • LCD size: Innolux 21.5”, 16:9
  • Resolution: FHD 1920 x 1080
  • Luminance
    - LCD panel: 400cd/m2
    - XPPC PCAP touch: 85% of panel’s luminance after air bonding
  • Contrast ratio: 1000
  • LCD color: 16.7M
  • Viewing angle: 89(R), 89(L), 89(U), 89(D)
Touch Screen
  • Air bonding
  • 10 points P-Cap (projected capacitive touch)
  • Glass surface treatment: AS + AG
System
  • CPU: onboard Intel® Celeron® processor J3455, 1.50GHz, 2M cache
  • Graphic: Intel® HD graphics
Main Memory
  • 1 x SO-DIMM socket support up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device
  • 1 x M.2 2242 Key M SSD (support SATA 3.0)
Expansion
  • 1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, support Wi-Fi/LTE module
Rear I/O
  • LED for power on/off
  • Power switch
  • 19V DC-in power jack lock type
  • 2 x RJ45 with LEDs for Gigabit LAN
  • 1 x HDMI 2.0, resolution 4096 x 2160 60Hz
  • 2 x USB 3.0
  • 1 x Line-out
  • COM 1: RS232/422/485
Front I/O
  • 2 x Antenna hole
Mechanical & Environment
  • Color/material: black, silver/metal sheet
  • Support
    - VESA mount 100mm x 100mm
    - Panel mount
    - Open frame
Environment
  • Vibration
    - IEC 60068-2-64
    - 2Grms @ sine, 5~500Hz, 1hr/axis
    - 2.2 Grams @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
  • Shock
    - IEC 60068-2-27
    - 50g peak acceleration (11 msec. duration)
  • Temperature
    - Operating temperature with 0.7 m/s air flow: 0°C~45°C (optional to 50°C)
    - Storage temperature: -20°C~60°C
  • Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions
  • System: 520.6mm x 315.6mm x 54mm
  • System weight: 5kg
  • Package: 650mm x 480mm x 170mm
  • Package weight: 7.5kg
Power Supply
  • 1 x 90W AC/DC lockable adapter included in accessory
  • Input: 100VAC to 240VAC
  • Output: DC+19VD
Certifications
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI Part 15B)
  • LVD (EN62368-1)
OS Support Lists
  • Win10 64-bit
  • Linux
Downloads
pdf
Datasheet
